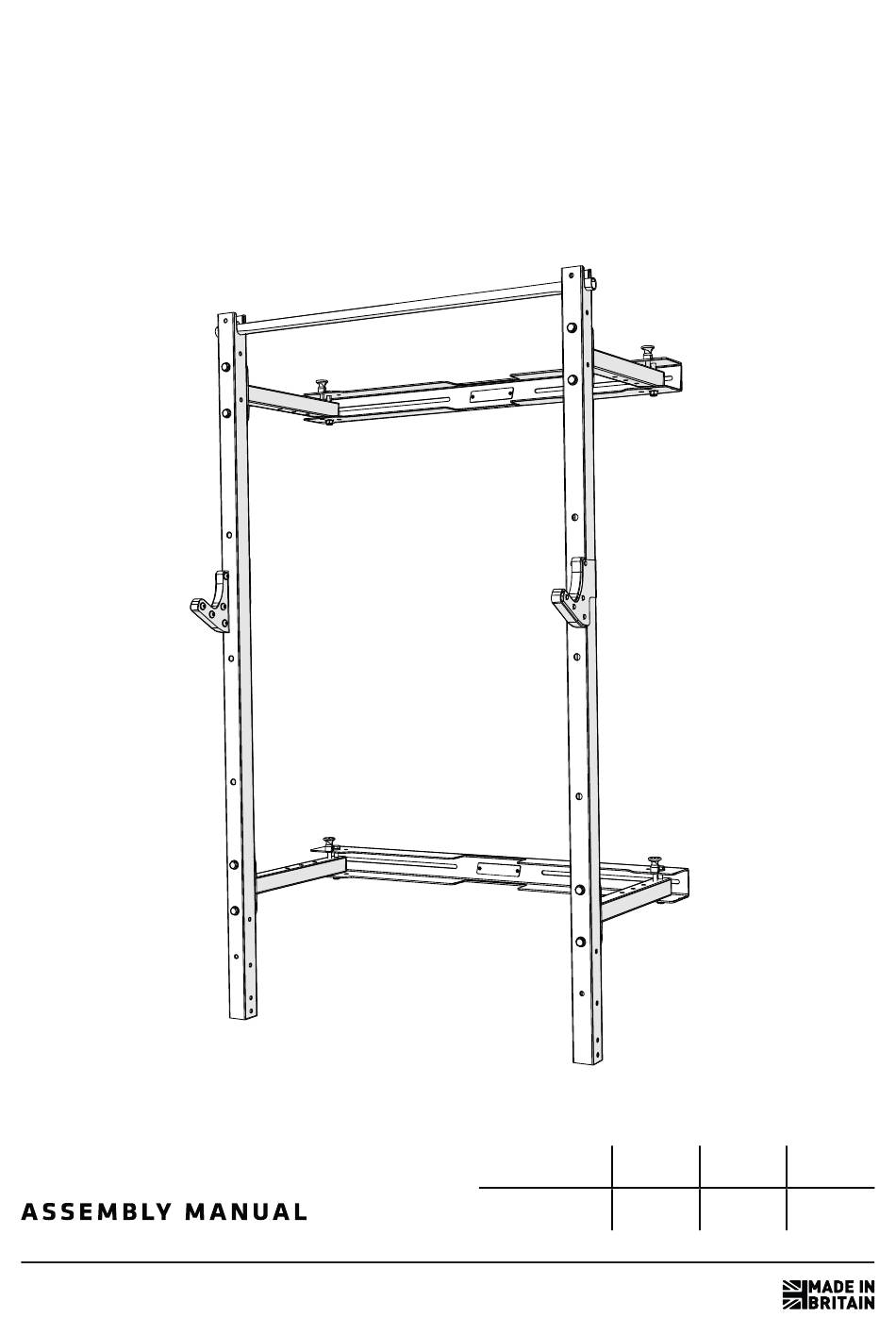

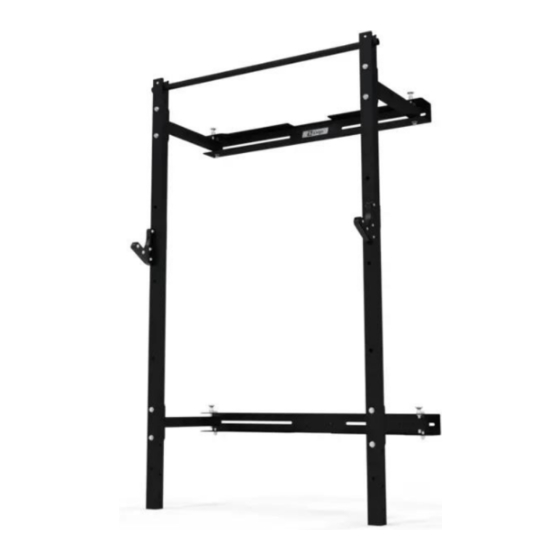

- Page 1 FOLDING RACK XL-1380 DIMENSIONS L x W x H WEIGHT MAX LOAD COMMERCIAL WARRANTY mm (inch) kg (lbs) kg (lbs) 759 x 1290 x 2140 Main Frame (30 x 51 x 84) (134) (992) Lifetime...
-
Page 2: Tools Required
WARNING SERIOUS INJURIES TO USERS, BYSTANDERS OR INSTALLERS CAN OCCUR IF THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL ARE NOT FOLLOWED. TO MINIMIZE THIS RISK, READ THE MANUAL BEFORE BEGINNING THE INSTALLATION TO FAMILIARIZE YOURSELF WITH ITS CONTENTS AND THEN BE CERTAIN TO FOLLOW EACH OF THE STEPS AND PRACTICES DESCRIBED. TOOLS REQUIRED PARTS PART... - Page 3 STEP 1 USING THE DIMENSIONS BELOW, MEASURE OUT, DRILL AND FIX THE UPPER STRINGER PLATE TO THE WALL USING THE SUPPLIED FIXINGS. USING A SPIRIT LEVEL TO ENSURE THAT IT IS FIXED TO THE WALL LEVEL. SOLID WALLS: DRILL A 12MM HOLE AND USE A WALL PLUG FIXING.ENSURE THE HOLE IS VACCUUMED OUT BEFORE INSERTING THE WALL PLUG.
- Page 4 STEP 2 ATTACH THE REAR ARMS TO THE UPRIGHTS, USING THE FIXINGS OUTLINED BELOW. REPEAT THIS STEP FOR BOTH SIDES. FIXING M12 NYLOC M12 WASHER M12 X 90 BOLT...
- Page 5 STEP 3 LOOSELY ATTACH THE UPRIGHTS TO THE TOP STRINGER, THEN ATTACH THE BOTTOM STRINGER TO THE BOTTOM ARMS AND MARK OFF THE FIXING POINTS ON THE WALL. REMOVE UPRIGHTS AND DRILL THE FIXING HOLES AS MARKED. ATTACH THE BOTTOM STRINGER TO THE WALL USING THE FIXINGS SUPPLIED AND FOLLOWING THE SAME PROCEDURE AS STEP 1.
- Page 6 STEP 4 ATTACH THE UPRIGHTS TO THE WALL STRINGER PLATES USING THE FIXINGS IN THE BELOW TABLE AND DIAGRAM. FIXING M12 NYLOC M12 WASHER M12 X 120 BOLT...
- Page 7 STEP 5 WHEN USING THE RACK, FOLD OUT BOTH ARMS AND SECURE WITH THE DROP PIN. THE PULLUP BAR THEN SLOTS FIRMLY INTO THE TOP OF THE UPRIGHTS AND WILL BE LOCKED IN PLACE.
- Page 8 STEP 6 ASSEMBLE THE J-HOOKS USING THE FIXINGS BELOW. FIXING M10 INTERNAL WASHER M10 X 35 BUTTON HEAD...
-
Page 9: Daily Inspection
MAINTENANCE & EQUIPMENT USAGE PREVENTATIVE MAINTENANCE IS CRITICAL TO THE SAFETY OF USERS AS WELL AS ENSURING THE OPTIMUM FUNCTION OF THE EQUIPMENT. ONLY USE COMPONENTS FROM THE SUPPLIER WHEN SERVICING YOUR EQUIPMENT. BE CERTAIN TO REPLACE ANY COMPONENTS AT THE FIRST SIGNS OF WEAR. DAILY INSPECTION EQUIPMENT USAGE PAINT: LOOK FOR PAINT CHIPS AND FILL IN IMMEDIATELY...
