SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

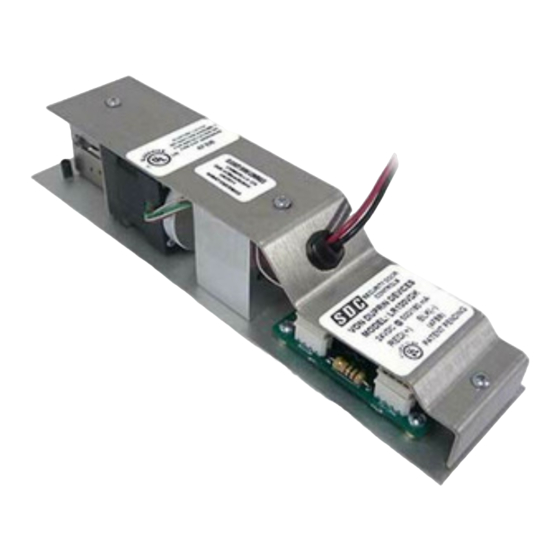

KAWNEER ELECTRIC LATCH RETRACTION DEVICE KIT

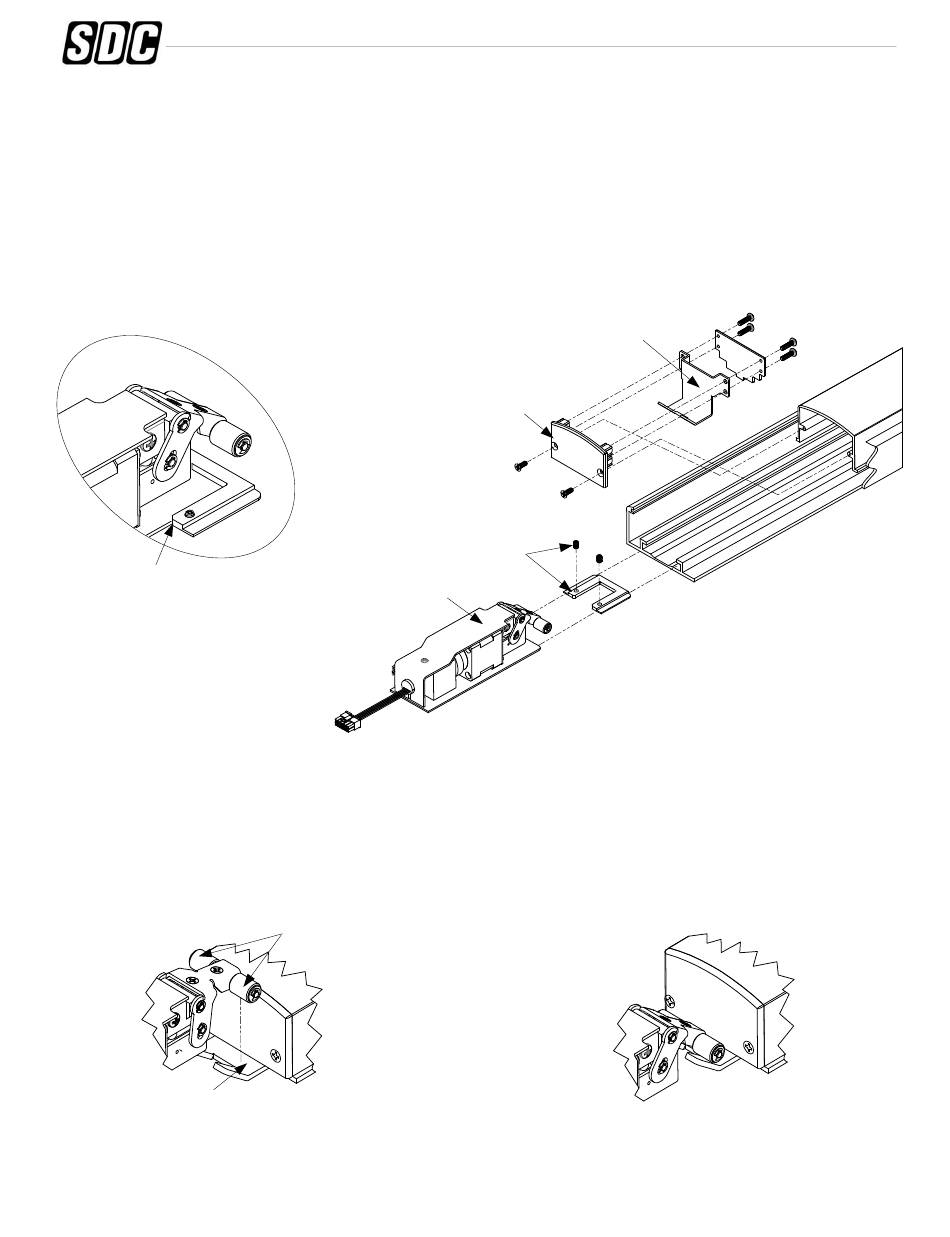

Remove End Cap, attach forked activation tab where shown and replace End Cap. Insert Fixation Plate into the device.
Slide the ELR assembly into the base channel raising it to allow for motor clearance above the device channel.
Slide ELR under
Fixation plate
Depress the touchpad completely and slide the ELR unit in
over the forked activation tab.
Activation Tab
P:\INST INSTRUCTIONS\ELR KITS\INST-LR100KWK-EM
INSTALLATION INSTRUCTIONS
LR100KWK-EM
MODEL: 1786 RIM DEVICE
Insert the forked activation tab between
the End Cap & the End Cap Plate using
existing screws
REMOVE END CAP
Fixation plate & set
LR100-KWK-EM
Rollers
REV B
screws
Energize the ELR unit which will bring the rollers down
towards the activation tab.
08-22
Page 1
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
