NVX XSBi80 Manual

Smart Battery Isolator Manual
XSBi80/XSBi200/XSBi500
NVX smart battery isolators are microprocessor-controlled dual battery isolators
used in dual battery systems. They are designed to be used as a solenoid priority
system to protect the start battery from excessive discharge, while allowing the auxiliary
battery to supply non-essential loads.
• Available for 80A, 200A and 500A at 12V continuous power
• A safe way to charge your auxiliary battery while driving
• Cost-effective protection against a flat start battery
• The Smart Battery Isolator
• This Smart switch ensures you should never have a drained starter battery again
• Includes manual overide function which allows you to link two batteries together
with the push of a button
The dual sensing smart isolators have the added feature of allowing charge both
ways where the auxiliary battery may also be charged by an external source such
as Solar panels or an external AC battery charger. They will also allow the start
battery to be charged by the external source once the auxiliary battery reaches
13.2 volts to help top up the start battery.

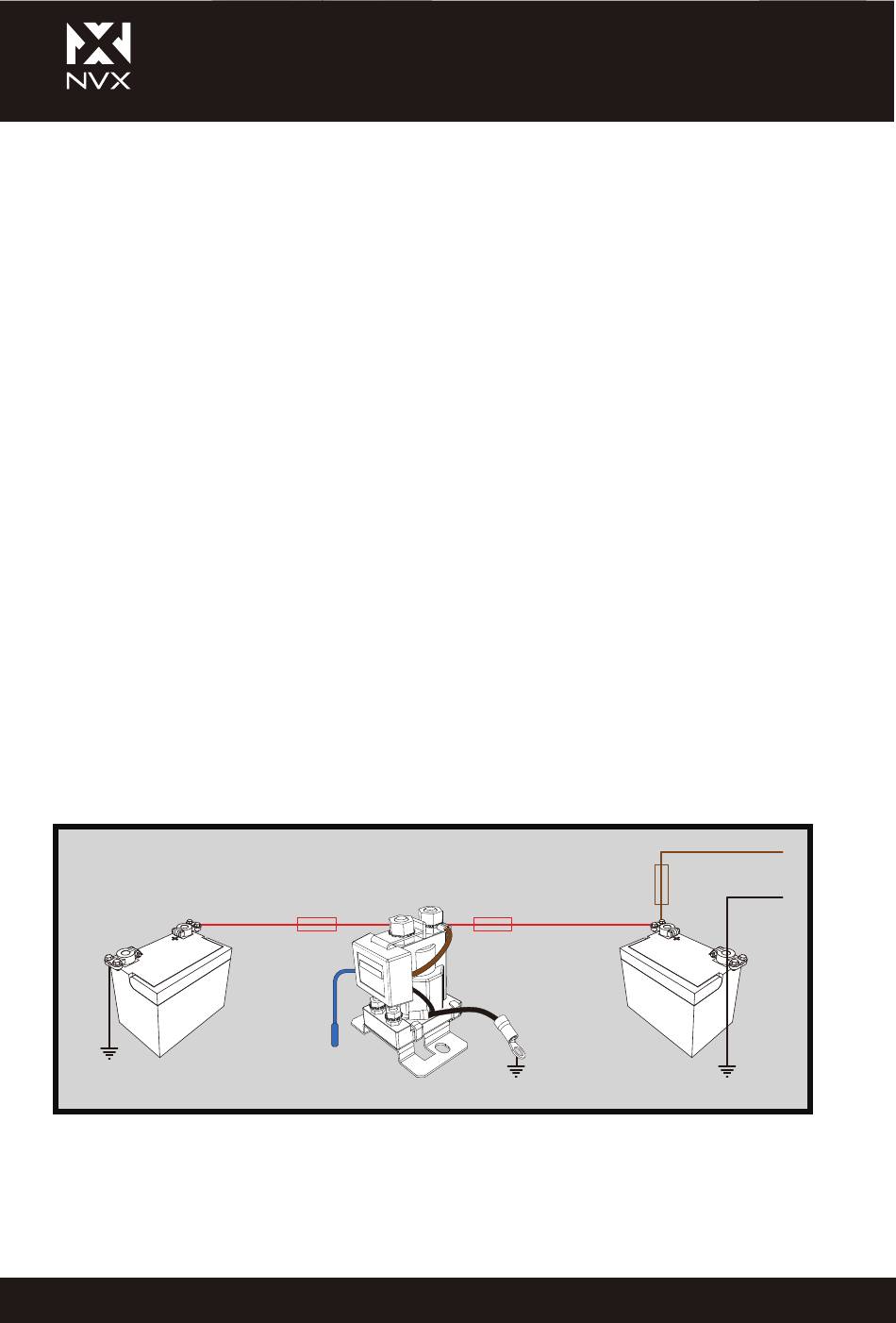

Installation
Start
battery
Circuit breaker and fuses not supplied
*
7TH BUILDING, NO.59 CHUANG FU ROAD, XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
monitors the main starter battery's voltage voltage
Fuse*
Override
wire
*Load
circuit breaker
Fuse*
Loads
Auxiliary
battery
