Summary of Contents for .STOOL 01

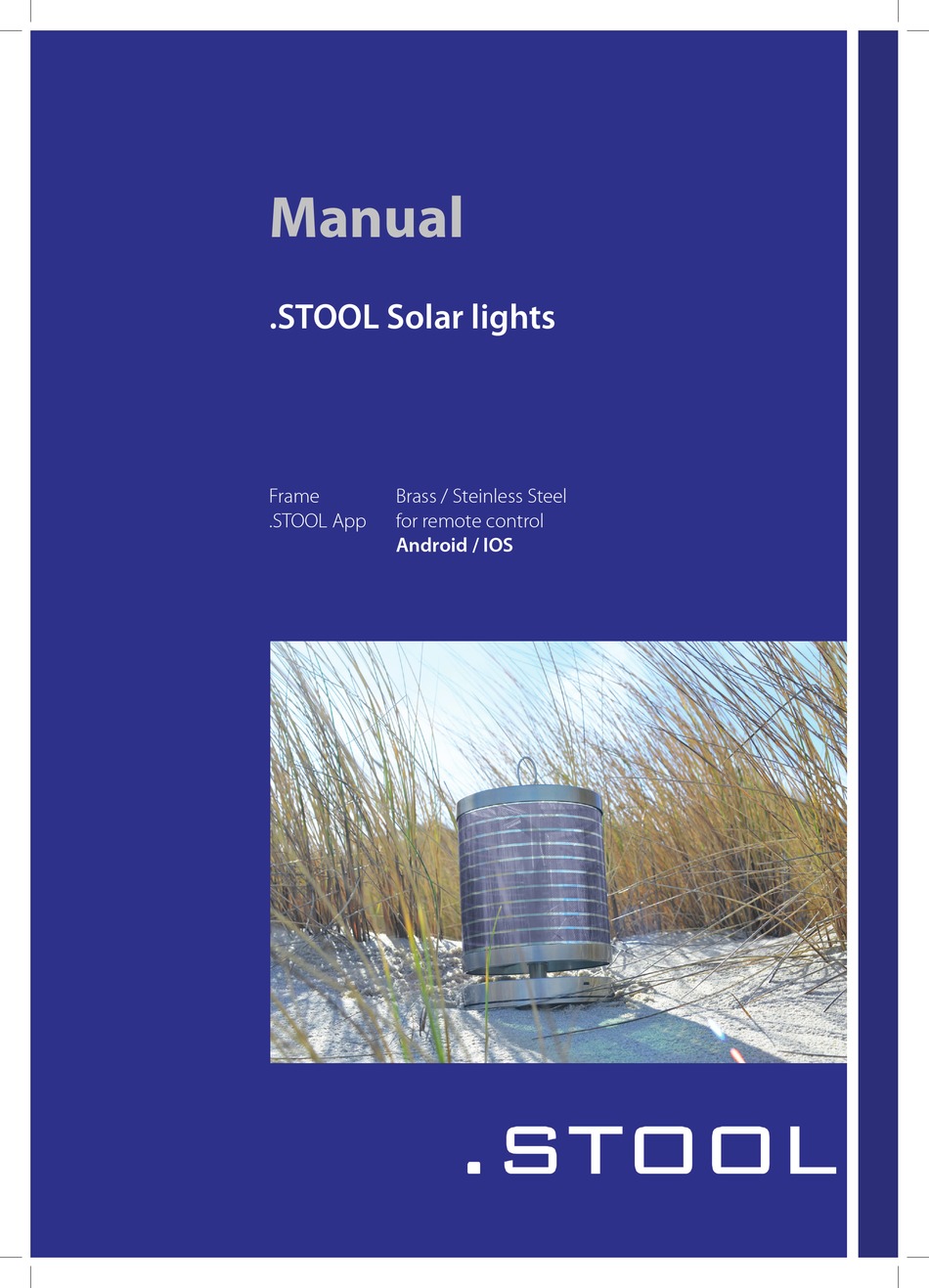

- Page 1 .stool Manual .STOOL Solar lights Frame Brass / Steinless Steel .STOOL App for remote control Android / IOS Manual .STOOL solar lights Page 1...
-
Page 2: Intended Use
.stool Manual for .STOOL solar lights Model: No. 01 | .STOOL table lamp with solar film Serial no. 50.100.10 to 50.101.21 Materials: stainless steel + brass Heights: compact Solar screens: Blue + Green They have acquired a special products, the world‘s first sustainable solar lamp. The lamp is self-sufficient, durable and high quality. -
Page 3: Safety Instructions
.stool 2 package contents .STOOL table lamp with solar shade • • Carrying loop in the lid compartment (for mounting) • Brief information • Charging cable and power supply (optional) 3 Summary The lamp is simple and intuitive to use. When the lamp gets enough sunlight, it can get by completely without additional power. You will always have a high quality light source available when you need it. If you only use the lamp indoors, or if there is insufficient sunlight, then you can also charge the battery via the USB port. - Page 4 .stool • Do not connect the product immediately after it has reached a cold ambient temperature was brought into a warm room. Condensation can destroy the product. Before using the product, wait until it adapts to the changed ambient temperature. •...
- Page 5 .stool The light is now ready for operation. Turn on the light at the ON / OFF switch Manual .STOOL solar lights Page 5...
-
Page 6: Operation
.stool 6 operation The lamp is switched on and off with the switch (1) on the lamp base. To press: 1x brightness „candlelight“ 2x for medium brightness 3x for brightness „reading light“ 4x off . The control is also possible with the app via smartphone or tablet. Please read the instructions for the app, or the help text. - Page 7 Any commercially available USB charger of a mobile phone / tablet can be used for this (can also be ordered as an accessory at https://shop.stool-living.de) which complies with the standard (voltage 5V, charging current 0.5 to 1.5 Charging time with empty battery with 0.5 A = 10-12 hours. With a fully charged battery, the table lamp can be operated at full brightness for over 10 hours (candlelight>...
- Page 8 .stool Lighting duration of the .STOOL solar lamp depending on the irradiation duration Der Tabelle ist zu entnehmen, wie viel Licht sie mit der .STOOL Solarleuchte ernten können 1 model „high“ charging time candlelight duration at 50% reading light 6 hours full sun 14,34 h 5,70 h 2,90 h...
- Page 9 .stool The Screens of the .STOOL control - App Manual .STOOL solar lights Page 9...
- Page 10 .stool 7 The App .STOOL- control The control of the light is also possible with the app „.STOOL- control“. This is available for the operating systems Android and Apple IOS. They can be loaded via the corresponding platforms (Play-Store, App-Store). Usage is possible with mobile devices such as a smartphone or tablet.
- Page 11 .stool 3. Info-Area Helpful information are been displayed in the middle of the screen: 3.1 Charge / Discharge When the light is charged by light or via USB, the word „charge“ appears 3.2 When more power is consumed than beeing charged, the word „Discharge“...
- Page 12 .stool Screen 2 1. lighting duration Display of the remaining illumination duration for the three brightness levels „Reading light“, 50% brightness and „candlelight“ 2. Info - Area Click here for the info screen. 3. Version number The version number of the app indicates which version of the .STOOL control app is currently installed.
- Page 13 .stool .STOOL control - the App with Apple IOS The app has with IOS the sane functions, But the screen design is different. Only the multy -selection is here not possible. In next version it might be included. if aplle allows all functions. Manual .STOOL solar lights Page 13...
-
Page 14: Care Instructions
.stool 8 questions | Problems | answers Always up to date at: www.STOOL-living.de 9 care instructions The entire lamp is designed for a long outdoor use. The materials have been specially selected and tested. The solar screen consists of a very durable PET film. Disconnect the device from the mains voltage before cleaning. - Page 15 The .STOOL solar light complies with the EU regulations. The CE declaration of conformity can be viewed if required. It is also stored on our homepage (www.STOOL-living.de/Infos). RoHs No harmful substances are used in the .STOOL solar lights. 11 Disposal Our solar lights are sustainable and have an almost infi nite durability.
- Page 16 .stool oSole GmbH is registered with the ear foundation under DE 55265488 for the recycling of electrical devices in accordance with the ElektroG Information always up-to-date on our homepage www.STOOL-living.de Directly to our online shop https://shop.stool-living.de As of: March 2021 Publication in whole or in part only with the written consent of oSole GmbH.
