Summary of Contents for ARCBRO X-Mark Series
- Page 1 Service Support Spirit X-Mark SERIES CNC Plate Cutting Machine install Manual Operator Manual ARCBRO| Revision 2 | English Date of issue: August, 2020 WWW.ARCBRO.COM Unique Solution...
- Page 2 Service Support Spirit Technical Support Thank you very much to choose ARCBRO product, our whole engineer department work for you since the day you receive machine. When you have any questions during assembling or operating, it is free to contact us by Call, Email, Online help 7x24 hours.

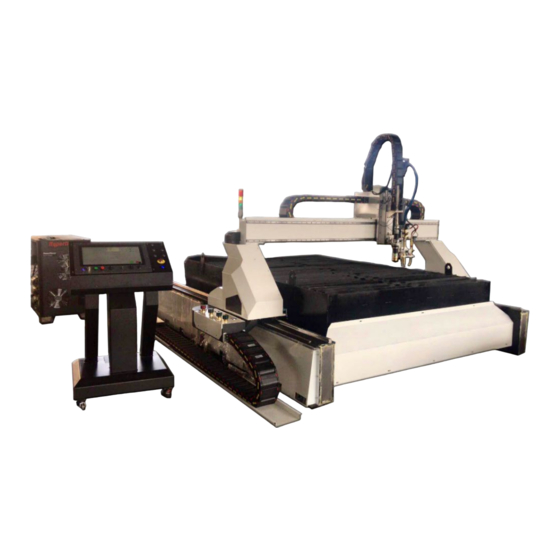

- Page 3 Service Support Spirit X Mark Mechanical Assembly 1. Whole Machine Overview 2. Parts description WWW.ARCBRO.COM Unique Solution...
- Page 4 4. Frame connection and Leveling a) There are two frame parts b) The frame connection must be done, before set up the cutting table. c) From the machining surface assembly, the frame will be perfect leveled. WWW.ARCBRO.COM Unique Solution...
- Page 5 Service Support Spirit Side view d) Connect the part shown in picture bellow: Side View WWW.ARCBRO.COM Unique Solution...
- Page 6 Service Support Spirit e) After the leveling, the vertical connection needs to be done as well. Top View f) Please check the square rails assembly accuracy, according to the sliding of the blocks. WWW.ARCBRO.COM Unique Solution...
- Page 7 Service Support Spirit Set up the cutting table on the top of the frame after frame assembly The cutting table can be positioned base on the front and back structure. Front structure WWW.ARCBRO.COM Unique Solution...
- Page 8 Service Support Spirit Back structure 7. Lastly, put on the front plate. 8. Check the 3D assembly video WWW.ARCBRO.COM Unique Solution...
