Summary of Contents for Sapa REDD Team Dura-Grip OSHA

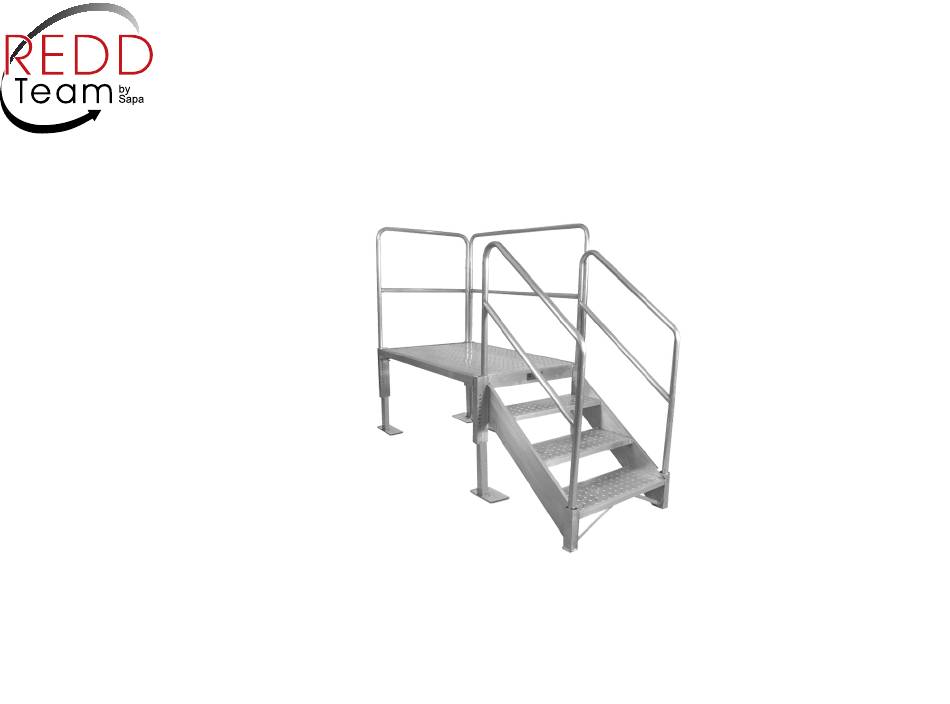

- Page 1 Dura Grip OSHA Dura Grip OSHA System Assembly System Assembly OSHA Compliance Dura-Grip Modular Building Access...
-
Page 2: Platform Components
OSHA OSHA Platform Components Platform Components Legs Short Guardrail Leg Pads Long Guardrail Platform Cone Platform Hardware... - Page 3 OSHA OSHA Stair Components Stair Components Stair Riser Stair Rail Stair Cone...
-
Page 4: Step Assembly
OSHA OSHA Step Assembly Step Assembly 1. Insert legs into platform cones, with leg pads facing inwards 2. Using 5/16”x 2 ½” bolt, finger tighten at following heights: 25 ½” - 2 step system 34” - 3 step system... - Page 5 OSHA OSHA Step Assembly Step Assembly 3. Flip upright and attach stair riser using (2) 5/16” x 4 ½” long screws, washers and hex nuts, 1 each side...
- Page 6 OSHA OSHA Step Assembly Step Assembly 4. Bring system flush to building so platform is level with threshold...
- Page 7 OSHA OSHA Step Assembly Step Assembly 5. Lag platform to building with (3) ¼” x 3” lag screws 6. Adjust each leg as elevation dictates...
- Page 8 OSHA OSHA Step Assembly Step Assembly 7. Insert short guardrail into platform cone so that it rests on 4 ½” long bolts 8. Attach rail to building with 5/16” x 3 ¾” lag screws...
- Page 9 OSHA OSHA Step Assembly Step Assembly 9. Insert long guardrail into platform cone and attach to short guardrail with 5/16” x 3 ¾” bolt provided...
- Page 10 OSHA OSHA Step Assembly Step Assembly 10. Install the stair rail by inserting the bottom rail into platform cone then top, make sure stair rail rests on the 4 ½” long bolts...
- Page 11 OSHA OSHA Step Assembly Step Assembly 11. Attach stair rail to long guardrail with 5/16”x 3 ¾” long bolt provided...
- Page 12 OSHA OSHA Step Assembly Step Assembly 12. Make sure ground is level at bottom of first riser -add or remove dirt as necessary, must maintain 8 ½” rise to remain code compliant...
- Page 13 OSHA OSHA Step Assembly Step Assembly...
