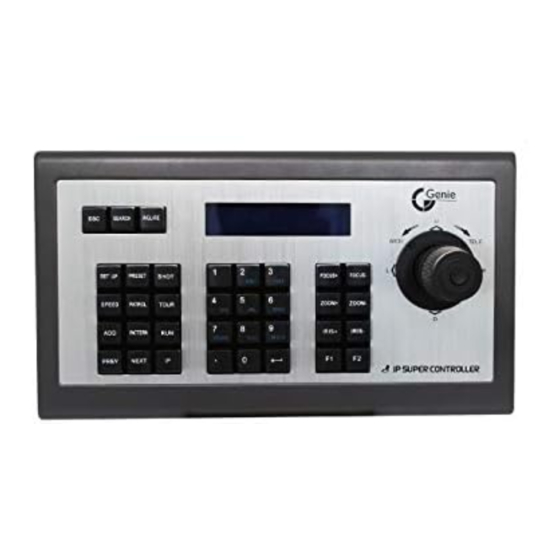

- Page 1 IP and RS485 Joystick Keyboard Controller KB-200/IP User Manual Please read these instructions carefully before operating the unit and keep for further reference.
- Page 2 Please read this instruction carefully before operating the product and keep it for further reference. All examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. The Genie KB-200/IP is an IP keyboard designed to work IP PTZ cameras. 1.1 Product Features •...
- Page 3 User Manual Point to Point / Multi-Point 3km IP Bridge 1.4 Dimensions 180mm 320mm 1.5 Interface Introduction Description Power indicator light Network indicator light RS232 interface RJ45 Network interface RS485 interface DC12V Grounding loop...
- Page 4 2.0 Connections 2.1 Keyboard Connected to a router or Network cable DC12V Power Supply switch. 2.2 LAN Router Switch...
- Page 5 3.4 Switch When multiple devices have been added to the KB-200/IP, the user can press the “previous”, “next” buttons to allow quick switching between the ONVIF devices. 2. Once selected you should gain camera control.
- Page 6 The default IP operating mode of the KB-200/IP is DHCP, if “NO” DHCP server is operating in the LAN, you’ll need to assign the KB-200/IP with static IP address, the IP address must be within the range of the products you want to control. Please modify static IP mode in the “Settings”...
- Page 7 5.0 Precautions 1. Please use a standard 12VDC power supply. 2. Please operate in the following temperature/ humidity range. 3. Working Temperature: 0°C-55°C / 14°F- 131°F 4. Working Humidity: 20%- 80% (frostless) 5. Storage Temperature: -10°C- 60°C / 14°F- 140°F Storage humidity: 0-90%(frost- less).
- Page 8 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
