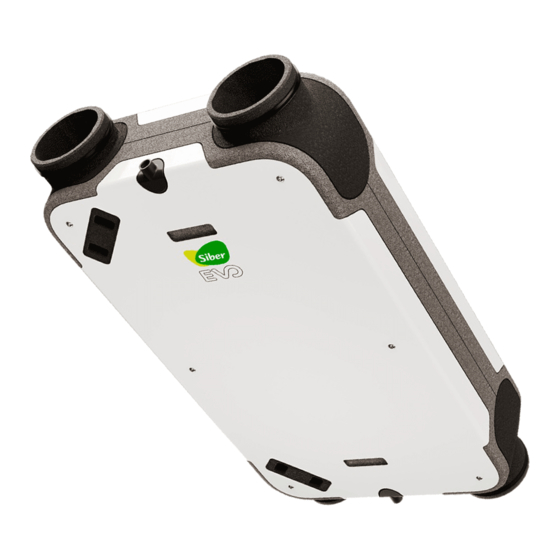

SIBER PREMIUM DF EVO Installation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SIBER DF

Installation Manual

Table of Contents

Need help?

Do you have a question about the PREMIUM DF EVO and is the answer not in the manual?

Questions and answers

Summary of Contents for SIBER PREMIUM DF EVO

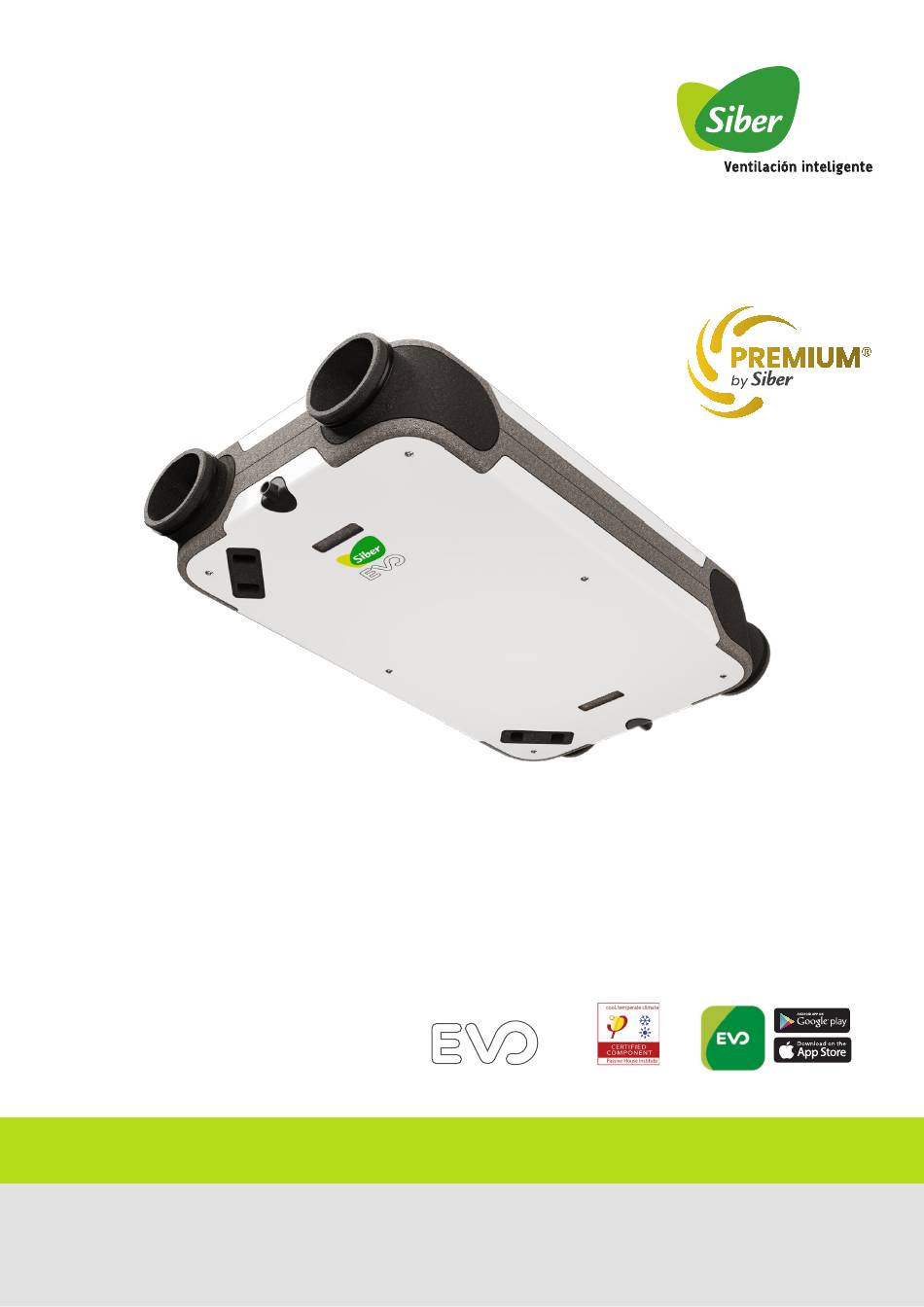

Page 1 SIBER DF Installation Manual...
Page 2: Table Of Contents
6 NOZZLE ORIENTATION 7 CONNECTION OF THE CONDENSATE DRAIN 8 CHANGE OF FILTERS 9 ELECTRICAL CONNECTION (Only for the PREMIUM rangeof Siber DF EVO ) 9.1 MAINS CONNECTION 10 MONITOR YOUR HOME - PROBES / WIRELESS CONTROLS 11 SMART CONNECTIVITY 11.1 MODBUS - RS485...
Page 3: Delivery
Before starting the installation of the Dual Flow VMC Unit with Thermal Energy Recovery, you should check whether it has been delivered complete and intact. The delivery content of the VMC DF SIBER DF EVO 1/2 unit consists of the following items: VMC DF unit with Thermal Energy Recovery SIBER DF EVO...
Page 4: Optional Accessories For Siber Df Evo
SIBER DF / INSTALLATION MANUAL 1.2 OPTIONAL ACCESSORIES FOR SIBER DF EVO DESCRIPTION IMAGE CODE G4 FILTER COARSE 65% DFFG4 F7 FILTER ePM1 55% DFFF7 G4 + F7 FILTER COARSE 65% - ePM1 55% DFFG4F7 CARBON FILTER DFFCA F9 FILTER ePM1 80%...
Page 5: Application
These installation instructions apply to both the SIBER DF EVO 1/2 and the SIBER DF EVO 1/2 Enthalpic. The SIBER DF EVO 1/2 can be wall or ceiling mounted, with the standard fixing brackets included. For the correct position of the duct...
Page 6: Model
SIBER DF / INSTALLATION MANUAL 3 MODEL 3.1 TECHNICAL SPECIFICATIONS SIBER DF EVO 1 & DF EVO 1 Enthalpic Mains voltage 230 V/ 50 Hz Degree of protection IP 40 Dimensions (l x h x d) 1000 x 600 x 210 mm Connection diameter 160 Ø...
Page 7: Characteristic Curves
37.13 1.07 46.07 1.33 48.14 1.16 58.25 1.40 Sound level SIBER DF EVO 1 & DF EVO 1 Enthalpic ® Ventilation flow rate (m Static pressure (Pa) Box irradiation (dB(A)) Sound level Lw (A) Extraction duct (dB(A)) Insufflation duct (dB(A))
Page 8 72.60 1.74 81.33 1.46 93.10 1.68 106.48 1.92 Sound level SIBER DF EVO 2 & DF EVO 2 Enthalpic ® Ventilation flow rate (m Static pressure (Pa) Box irradiation (dB(A)) Sound level Lw (A) Extraction duct (dB(A)) Insufflation duct (dB(A))
Page 9: Connections And Dimensions
3.3 CONNECTIONS AND DIMENSIONS SIBER DF EVO LEGEND STANDARD VERSION Exhaust air Fresh air supply to the dwelling Fresh air intake from outside Extraction of stale air from inside the dwelling Electrical connection Condensate drain connection *Airflow model right-hand version...
Page 10: Exploded View Of The Unit
SIBER DF / INSTALLATION MANUAL 3.4 EXPLODED VIEW OF THE UNIT SIBER DF EVO LEGEND High performance filters Energy-efficient engines Temperature probes High-performance heat exchanger 100% automatic bypass Swivelling condensate drain Electrical connections...
Page 11: Operation
The outside temperature is higher than the internal temperature of the dwelling. 4.3 ANTI - ICE SECURITY To prevent the formation of ice in the heat exchanger at very low outdoor temperatures, the SIBER DF EVO 1/2 is equipped with anti- icing protection.
Page 12: Installation
5.2 POSITION OF THE UNIT The SIBER DF EVO 1/2 can be fixed directly to the wall or ceiling thanks to the fixing brackets included for this purpose. Warning! Depending on the weight of the Unit, the installation of the Unit should always be carried out by 2 persons.
Page 13: Ceiling Mounting
603 mm 1005 mm Use the oval holes to drill the surface INSTALLATION TEMPLATE FOR SIBER DF 1. Place the template in the desired location for the ventilation equipment 2. Choose the orientation of the guide pair between horizontal or vertical.
Page 14 SIBER DF / INSTALLATION MANUAL Screw the Silentblock Hooks into the desired new position. Drill the marked surface and screw the fixing brackets through the oval holes. Long Side Short Side Loosen the wing-nuts and leave 1 cm of Place on top of the guide and slide...
Page 15: Wall Mounting
603 mm 1005 mm Use the oval holes to drill the surface INSTALLATION TEMPLATE FOR SIBER DF 1. Place the template in the desired location for the ventilation equipment 2. Choose the orientation of the guide pair between horizontal or vertical.
Page 16 SIBER DF / INSTALLATION MANUAL Screw the Silentblock Hooks into the desired new position. Drill the marked surface and screw the fixing brackets through the oval holes. Long Side Short Side Loosen the wing-nuts and leave 1 cm Place on top of the guide and slide until it...
Page 17: Nozzle Orientation
6 NOZZLE ORIENTATION To change the default direction of the nozzles, follow the steps below: Remove the filter covers Unscrew the outer cover Remove the outer cover and the front polypropylene of the Unit, leaving Unscrew the nozzle from the back side the interior exposed...
Page 18 SIBER DF / INSTALLATION MANUAL Turn the nozzle Raise the nozzle Screw the nozzle back on again from the back. Fit the outer and inner covers of the Unit Screw on the outer cover Replace the filter covers...
Page 19: Connection Of The Condensate Drain
Use a 32 mm diameter condensate drain pipe. In the case of a ceiling installation, make sure that the condensate drainage is below the level of the SIBER DF EVO 1/2. Note: Only one condensate drain is connected, the other drain must remain closed with the plug. In the case of the Siber DF EVO 1/2 Enthalpic ,the two drains must be closed with two plugs, it is not necessary to connect to the condensate drain.
Page 20: Change Of Filters
SIBER DF / INSTALLATION MANUAL 8 CHANGE OF FILTERS Remove the filter cover. Pull the filter outwards. Place the new filter in the slot and push it in. Replace the filter covers...
Page 21: Electrical Connection (Only For The Premium Rangeof Siber Df Evo )
9 ELECTRICAL CONNECTION (Only for the PREMIUM rangeof Siber DF EVO ) 9.1 MAINS CONNECTION The electrical installation must correctly comply with the relevant standards. Warning! The fans and the control circuit shall operate at 230 V. If handling or maintenance work is carried out, the unit must be disconnected from the mains.
Page 22 SIBER DF / INSTALLATION MANUAL Power supply for fan 1 Power supply for fan 2 Power supply Reset button Preheating power PC communication supply Not used 3V selector Not used Not used Canadian well actuator Fault relay output Not used...
Page 23: Monitor Your Home - Probes / Wireless Controls
RF (radio frequency) to the Siber DF EVO Unit. The unit will be able to react and vary the appropriate ventilation flow rate to ensure the indoor air quality according to the information from the probe.
Page 24: Smart Connectivity
(BMS) via cable, in Modbus language for both » DFEVORFRS485) reading and writing data. Collects information from Siber DF EVO units and compatible wireless probes and controllers (DFPULS4B, ) that are linked to this ventilation unit.
Page 25: Bridge Ethernet - Siber Evo App
Control and regulation of the unit's speeds. • Monitoring of CO and relative humidity in the home. The Siber DF EVO unit collects information from the various compatible wireless probes and controllers » (DFPULS4B, DFEVOCTRL, ) via radio frequency. DFEVOCO2 and DFEVOHR...
Page 26: Maintenance
SIBER DF / INSTALLATION MANUAL 12. MAINTENANCE 12.1 FILTER MAINTENANCE (FOR THE USER) Filters should be checked every three months. Filters should be Note: cleaned every six months and replaced at least once a year. The equipment must never be operated without filters Remove the filter cover.
Page 27: Maintenance Of The Heat Exchange (For The Installer)
12.2 MAINTENANCE OF THE HEAT EXCHANGE (FOR THE INSTALLER) Remove the filter cover. Pull the filter outwards. Unscrew the outer cover Remove the outer cover and the front polypropylene of the Unit, leaving Unscrew and remove left support bracket the interior exposed Separate the retaining tabs to remove Remove the heat Clean the heat...
Page 28 SIBER DF / INSTALLATION MANUAL Put the heat exchanger back in place Insert the support bracket and screw it back on Fit the outer and inner cover of the Unit. Screw on the outer cover Replace the filters Replace the filter covers...
Page 29: Exploded View And Description
12.3 EXPLODED VIEW AND DESCRIPTION Article description SIBER DF EVO 1/2 Orientable nozzles 160 Ø 4 units Front cover 1 piece Front Polypropylene 1 piece By-Pass Valve 1 piece By-Pass valve motor 1 piece Energy-saving fan 2 units High-performance heat exchanger...
Page 30: Certificate Of Guarantee
SIBER DF / INSTALLATION MANUAL All Siber products are carefully tested and are covered by a warranty for a period of 36 months from the date of purchase, in accordance with current legislation. These rights, as provided for in the above-mentioned legislation, may only be asserted with respect to the seller himself.
Page 31 Offices - Logistics Centre Offices - Logistics Centre Factory - Training Centre Siber Zone, S.L.U. reserves the right to make any technical modification Showroom - Training Centre Showroom - Training Centre to the equipment and elements without prior notice.
