Summary of Contents for DOM Tronic Mifare

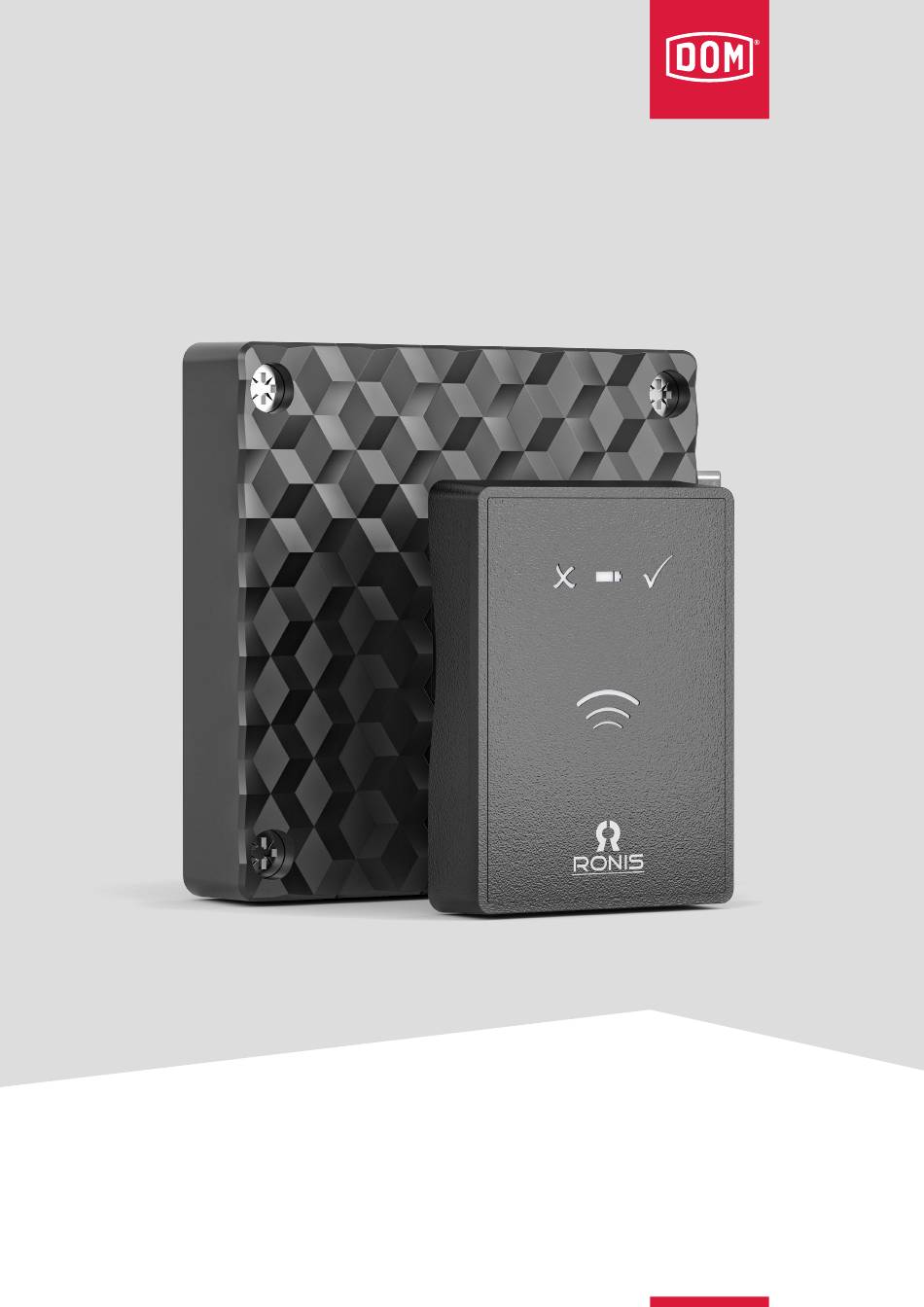

  • Page 1 Tronic Mifare Assembly...
  • Page 2: Drilling Template

    Drilling template TRONIC PRO : Drilling temp ASSEMBLY Right hand door ø8,1 ø4,5 To realize housing for the screw’s head.
  • Page 3 RONIC PRO : Drilling template Le hand door ø8,1 ø4,5 To realize housing for the screw’s head.
  • Page 4 Accessories ASSEMBLY ø5x29.5 ø3.5x9.5 Strike plate M3x18...
  • Page 5 Right door assembly ASSEMBLY 18 mm Section A-A x mm 18 + x mm ø3.5 ø22...
  • Page 6 Right door assembly ASSEMBLY Right door Warning: Connect blue part to the side of the legde. Right door...
  • Page 7 Left door assembly ASSEMBLY 18 mm Section A-A x mm ø3.5 ø22...
  • Page 8 Left door assembly ASSEMBLY Warning: Connect blue part Left door to the side of the legde. Left door...
  • Page 9 Verify that the cable is properly connected (straight and untill the bottom). Verify that the batteries are in the correct position (as indicated on the battery holder). IMPORTANT The battery pack (sold separately) must remain connected during the release of the batteries. Otherwise, the internal clock will lose the time configuration.
  • Page 10: Important Notes

    Important notes ASSEMBLY Verify that the screws are not fastened too tightly (<20kgf/cm2). Verify that the latch works smoothly in and out, without any friction with the door frame.
  • Page 11 Batteries ASSEMBLY If the yellow LED blinks Replace batteries. To replace batteries: 1. Connect the battery pack to the lock through the mini-USB connector, as shown in the picture. 2. If the lock is closed, input the User Card (or the Master Card) to open. 3.
