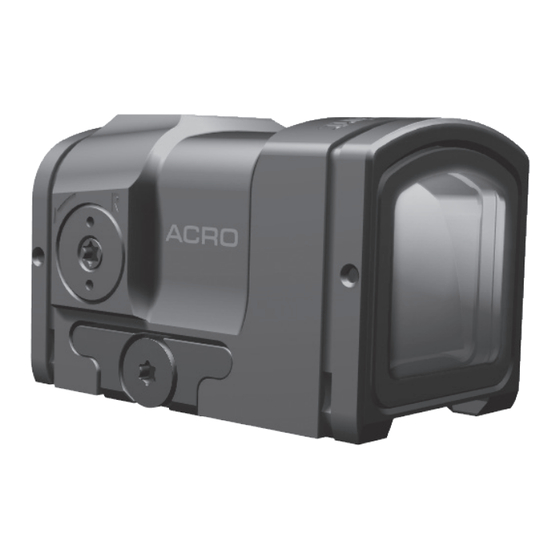

Aimpoint Acro C-2 User Manual
  1. Manuals
  2. Brands
  3. Aimpoint Manuals
  4. Monocular
  5. Acro C-2
  6. User manual

Aimpoint Acro C-2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Acro C-2™
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Acro C-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aimpoint Acro C-2

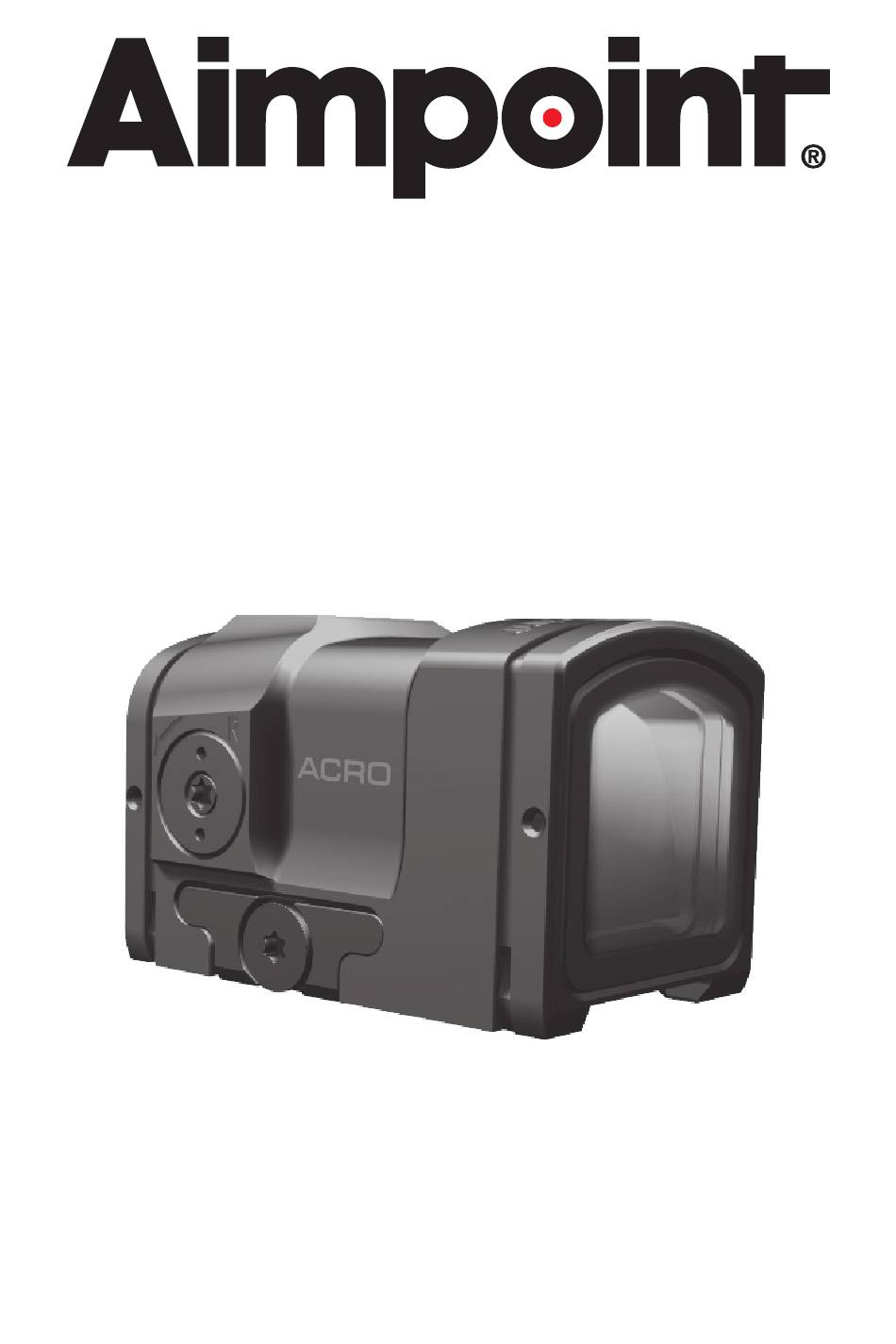

  • Page 1 Acro C-2™ User manual...
  • Page 2 1 PRESENTATION Aimpoint red dot sights are designed for the ”two ® eyes open” method which greatly enhances situational awareness and target acquisition. Thanks to the optical design the red dot follows the movement of the user’s eye while remaining fixed on target, eliminating any need for centering.

  • Page 3: Power Source

    Dot intensity 10 settings manually adjusted settings with push-buttons. Setting 1-2 for use with NVD and setting 3-10 for use in daylight. Dot color Signature No forward optical signature from the dot beyond 10 meters Power source Battery type CR2032 (3.0 V) Lithium Battery life 50,000 h at daylight setting 6.

  • Page 4: Environmental Specification

    Materials Sight housing High strength aluminum, black to dark gray,non-glare finish Environmental specification Temperature range -30 °C to +60 °C (operation) (-22 °F to +140 °F) Submersible 5 m / 15 ft 1 MOA: Minute Of Angle, 1 MOA ≈ 30 mm at 100 m or ≈ 1” at 100 yds 2 NVD: Night Vision Device 3 Battery life: Values valid at room temperature for a quality battery...
  • Page 5 1.2 Overview Fig. 1 Overview 1 Push-buttons 6 Windage adjustment screw 2 Battery (CR2032) 7 Elevation adjustment 3 Battery cap screw 4 Locking bar 8 Aimpoint tool (ABCD) 5 Screw for locking bar...

  • Page 6: Operation

    2.1 Install or replace battery a Unscrew and remove the battery cap (3) using the flat side of the Aimpoint tool (8B) . b If replacing battery, remove depleted battery from the battery compartment by carefully pressing down on an edge as shown in Fig 2.
  • Page 7 Tighten the battery cap (3) with the Aimpoint tool (8B). When resistance is encountered, proceed to tighten until the battery cap (3) is fully tightened.
  • Page 8 (6) (7) if you encounter resistance. a Adjust the intensity to a comfortable setting for the red dot to contrast clearly against the target. b Use the Torx T10 of the Aimpoint tool (8D) to turn the adjustment screws (6) (7).
  • Page 9 c Windage adjustments (see Fig. 3): • Turn windage adjustment screw (6) counterclockwise to move point of impact to the right (R). • Turn windage screw (6) clockwise to move point of impact to the left. d Elevation adjustments (see Fig. 4): •...

  • Page 10: Extreme Conditions

    3 EXTREME CONDITIONS • Extreme heat (moist or dry): no special procedures required. • Extreme cold: extreme cold might shorten battery life. • Salt air: no special procedures required. • Sea spray, water, mud and snow: ensure the battery cap (3) is tightened before exposing the sight to sea spray, mud, snow or before submerging the sight in water.

  • Page 11: Troubleshooting

    4 TROUBLESHOOTING The red dot does not appear or has disappeared Make sure contact surfaces in the battery compartment are clean and verify that a working battery (CR2032) is installed correctly according to 2.1. If the sight is malfunctioning, notify local dealer/armourer. The sight is impossible to zero If an adjustment screw (6) or (7) is at its limit, check the alignment of mount and barrel.
  • Page 12 Jägershillgatan 15 Manassas, VA 20109, USA SE- 213 75 Malmö, Sweden Phone: +1 703-263-9795 Phone: +46 (0)40 671 50 20 Fax: +1 703-263-9463 Fax: +46 (0)40 21 92 38 e-mail: info@aimpoint.com e-mail: info@aimpoint.se WWW.AIMPOINT.COM © 2021, 2022 Aimpoint AB. [15940-2]...
