Summary of Contents for Jacuzzi JPV200

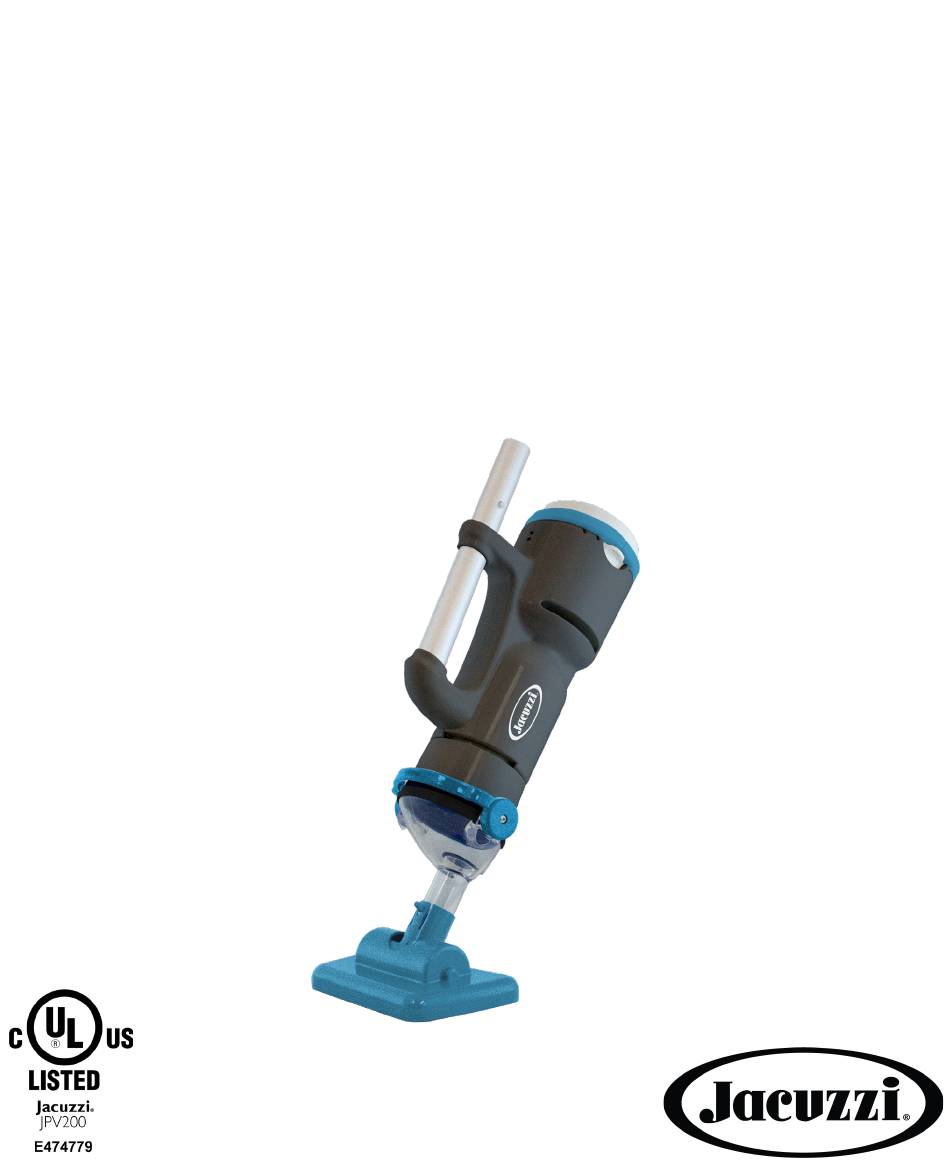

- Page 1 Jacuzzi ® JPV200 PROFESSIONAL GRADE POOL AND SPA VACUUM Operating Instructions...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNINGS AND USAGE INFORMATION WARNINGS DANGER! 1. Read carefully and understand all safety warnings before using this appliance. TO REDUCE THE RISK OF FIRE OR 2. Do not attempt to operate if the cleaner or charger appear to be damaged in any way. ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. -
Page 3: Safety Alert
USAGE INFORMATION 21. Use this product only for its intended purpose as described in this manual. Use only Water Tech accessories and filters. 22. This product is not intended for commercial use. 23. If the equipment is not in use for long time, disconnect the equipment from mains to avoid being damaged by transient over-voltage. 24. - Page 4 PRODUCT BREAKDOWN Model: 25150GL P20X006 1. Vacuum Head 4. Cleaner Body P30X002 2. Nose Cap P20X003LIV2 5. Motor Box P30X022XF 3. Filter Bag LC099-2SK 6. Charger Charge time: 4 hours...
- Page 5 OPTIONAL - POLE NOT INCLUDED Push for ON / OFF Submerge immediately after pushing ON.
- Page 6 The Jacuzzi JPV200 Professional Grade Pool & Spa Vacuum, for a period of two (2) years from the original date of purchase of the product, WT will, at its option, repair or © replace with new or refurbished product or parts, any product or parts determined to be defective. After the first year, the claimant shall pay ½ the MSRP or List Price of the warranted component.
- Page 7 P20X006 1. Vacuum Head 4. Cleaner Body P30X002 2. Nose Cap P20X003LIV2 5. Motor Box P30X022XF 3. Filter Bag LC099-2SK 6. Charger Only use the battery charger supplied with the cleaner. Specifications Battery Charger Input..............100-240V-50-60Hz, 400mA Maximum Battery Charger Output......................8.4V, Battery Technical Data...............7.4V, 2200mAh, 16.28Wh, 2S1P Li-Ion Water Temperature Range..........Maximum 96°F, (35°C) Minimum 40°F, (5°C) Operation Depth.............Maximum 9.8 ft.
-
Page 8: End Of Life Battery Disposal
END OF LIFE BATTERY DISPOSAL The maintenance free, Lithium Ion battery in your pool cleaner must be properly disposed of in accordance to State and local law. To confirm if recycling is required; contact your local authority for information. WARNING! •... - Page 9 This page has been left blank intentionally.
- Page 12 www.Jacuzzipool.com Rev.: 11162020...
Need help?
Do you have a question about the JPV200 and is the answer not in the manual?
Questions and answers
Battery is not charging
The battery may not be charging for the Jacuzzi JPV200 if the red light is not blinking, which indicates it is not accepting a charge. This could be due to a faulty charger, incorrect connection, damaged battery, or failure to follow the required 4-hour full charge time. Ensure the charger is working, properly connected, and the battery is not damaged.
This answer is automatically generated
Need replacement filter bags for model number 25150GL
You can find replacement filter bags for the Jacuzzi model 25150GL on Amazon. The compatible replacement multilayer filter bag (part number P30X022XF / PBW022XF) is available for purchase.
This answer is automatically generated
Need to order another charger
Section F of the manual for Jacuzzi JPV200 includes a picture with the red slashed circle: "Don't do this!" I can't tell from the picture what it is that you're not supposed to do. Can you explain?
