ProWine PF156GWAS Instruction Manual

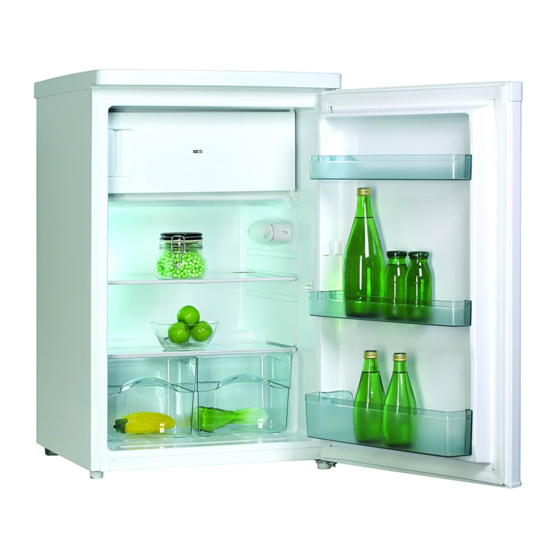

55cm under counter fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
55cm Under Counter Fridge
PF156GWAS
MODEL:
PF156GWAB
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF156GWAS and is the answer not in the manual?

Questions and answers

Summary of Contents for ProWine PF156GWAS

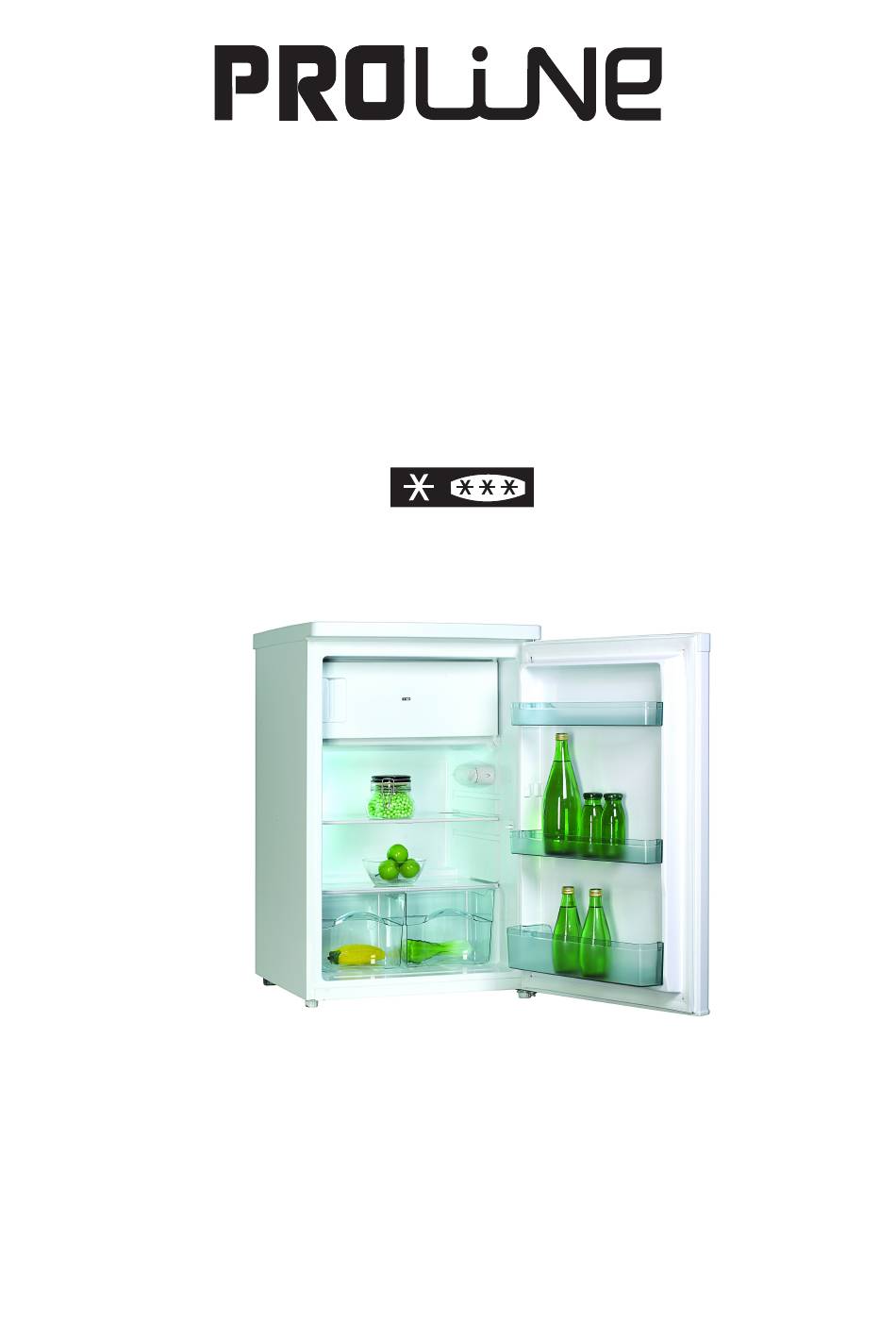

  • Page 1 55cm Under Counter Fridge PF156GWAS MODEL: PF156GWAB INSTRUCTION MANUAL...
  • Page 2 Names of parts 1. Top Cover 2. Freezer Door 3. Freezer Door Handle 4. Glass Shelf 5. Crisper Box Cover 6. Crisper Box 7. Leveling Legs 8. Lower Door Shelf 9. Upper and middle door shelves 10. Recessed handle 11. Door switch 12.

  • Page 3: Electrical Connection (Uk Only)

    THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently. Please keep this booklet in a safe place so that you can refer to it when required.
  • Page 4 REFRIGERATOR SAFETY INFORMATION Check that the voltage marked on the rating plate matches that of your local supply. Failure to use the correct voltage will render the guarantee VOID and may cause damage to the appliance. The manufacturer accepts NO responsibility for using any other voltage than that marked on the rating plate.

  • Page 5: Installation

    This appliance is for refrigerating food only. REFRIGERANT The refrigerating gas contained in the circuit of this appliance is Isobutane (R600a); it causes a low level of pollution but is inflammable. CAUTION: Extreme caution must be used when moving the appliance. WARNINGS: Do not damage the refrigerant circuit.
  • Page 6 Instructions for use Remove all packing materials and check for damage, if the appliance is damaged, do not use the appliance, contact the store where you purchased the appliance. Wash the interior of the appliance using lukewarm water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2 litres (2 pints) of water.
  • Page 7 Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf.
  • Page 8 Freezer defrost process Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal.
  • Page 9 Changing the light bulb Note. Light bulbs are not covered by the warranty. Turn the thermostat to the off position (0) and disconnect from the mains. Push the clip at the base of light to the rear to release the lamp cover. The Lamp is located in the back of the thermostat housing, unscrew the lamp in an anti-clockwise direction until the lamp comes out of the lamp fitting.
  • Page 10 Reversing The Doors Warning! When changing the way the door opens, the appliance must not be connected to the mains. Remove the plug from the mains before working on the door. 1. Remove the two screws (6) and remove the worktop (7) by raising the rear and pushing it forwards.
  • Page 11 Reversing The Freezer Door 1. Remove the lower hinge bracket screw(1) on the right side of the freezer compartment, then open the freezer door(4) and pull downwards to remove it. 2. Remove the lower hinge bracket(2) from the door and put aside until later. 3.

  • Page 12: Maintenance

    Maintenance Wipe the inner and outer surface of the refrigerator and its accessories with a wet cloth. If they are too dirty, scrub them with a mild detergent, and then clean them with water and dry them with clean cloth. After this, a small quantity of glass wax is recommended to polish the refrigerator surface with a flannelette.
  • Page 13 Before calling for service Please check the following points: 1. The refrigerator is not working Check the plug is inserted correctly into the wall socket Check there is power to the wall socket by plugging in another appliance, if the other appliance works, check the fuse in the appliance plug.
  • Page 14 Do's and Don'ts Do- keep raw meat and poultry below cooked food and dairy products. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding As much air as possible.

  • Page 15: Technical Data

    Technical data Brand Proline Fridge-Freezer Type Appliance type Star rating Total gross volume 120L Total storage volume 118L Freezer storage volume 2.0kg/24h Freezing capacity Maximum rated wattage of lamp Rated power input Rated current 0.6A Climate Class + Ambient Range N (+16℃...
  • Page 16 If something doesn't seem to work If there is something about your appliance which you do not understand and you live in the UK, you can phone our help line during normal office hours on: 0844 8009595 Calls are charged at standard rates. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

This manual is also suitable for:

Pf156gwab
