Summary of Contents for SEVEN CHGCT36

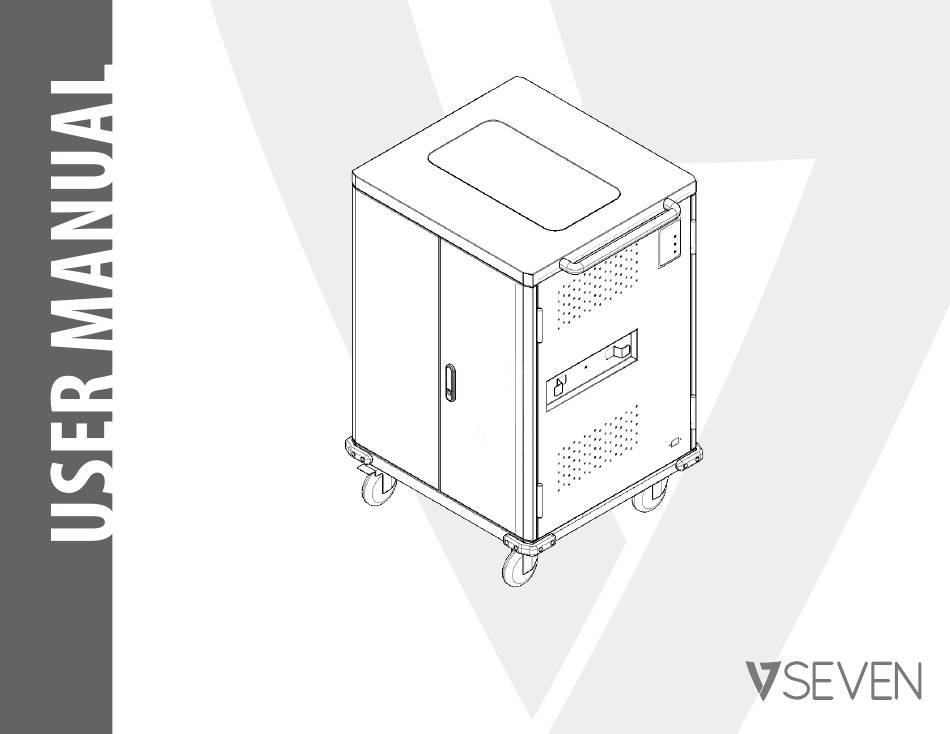

- Page 1 Charge Cart CHGCT36...
-
Page 3: Getting Started
1 Getting Started Package Includes Cart Diagram Unboxing Locking the Cart 2 Setup Plugging in Devices Advanced Features 3 Technical Specs 4 Safety and Warnings... - Page 4 Package includes • AC Power Cord • Keys CHGCT36 AC Power Cord Keys...
- Page 5 Cart Diagram Front Work Platform Handle LED Indicators Charging Timer Power Cable Wrap Brackets Pad Lock Loop Built-in PDUs Adapter Slots Power Cord Pass Through Power Inlet Device Slots 5" Caster 5" Locking Caster Rubber Bumpers (4 Corners) Cable Access Panel Locking Point *Security Lock Not included...
- Page 6 Remove from pallet Open Doors Open Doors Open Doors 1. Push Down 2. Lift Handle 3. Turn Handle...
-
Page 7: Door Locks
Door Locks Front/Back Pad Lock Loop *Pad lock not included... - Page 8 1. Plug cart into outlet 2. Plug in AC Adapters...
- Page 9 3. Place adapters into slots 4. Insert the adapters through the pass through holes...
- Page 10 5. Place the adapter wires on the cable holder dividers 6. Place the devices in the dividers 7. Close the cabinet door and plug the external power plug in the wall socket to start charging.
- Page 11 Charging System Charging all of your devices at one time can overload a typical circuit. V7 Charge Carts are equipped with an intelligent timing device that automatically switches the AC power supply from one half of the device outlets to the other to help protect against overload. The charging system will provide power to the first half of the outlets for 15 minutes.
- Page 12 Cart Dimensions 750 mm 652 mm CHGCT36 1091 mm...
- Page 13 CHGCT36 V7 Model Number CHGCT36-1N IM SKU 3BG420 EAN / UPC 0662919101140 Color Black and Gray Material High-grade 18 gauge cold rolled steel Numbered Device Spaces Organization and convenience Flexible device dividers with cable channels and numbered device slots on sliding shelves, numbered power...
- Page 14 CAUTION • To reduce risk of electric shock only use this product indoors. • This product is heavy. Use caution handling and keep upright. Do not attempt to unpack or move it unassisted. • Use caution when unpacking and save the packing material for later use. Scratches and other damage caused by mishandling is not covered by the warranty.
- Page 15 www.V7world.com V-20210913...
