Summary of Contents for Yolink YS7A01-UC

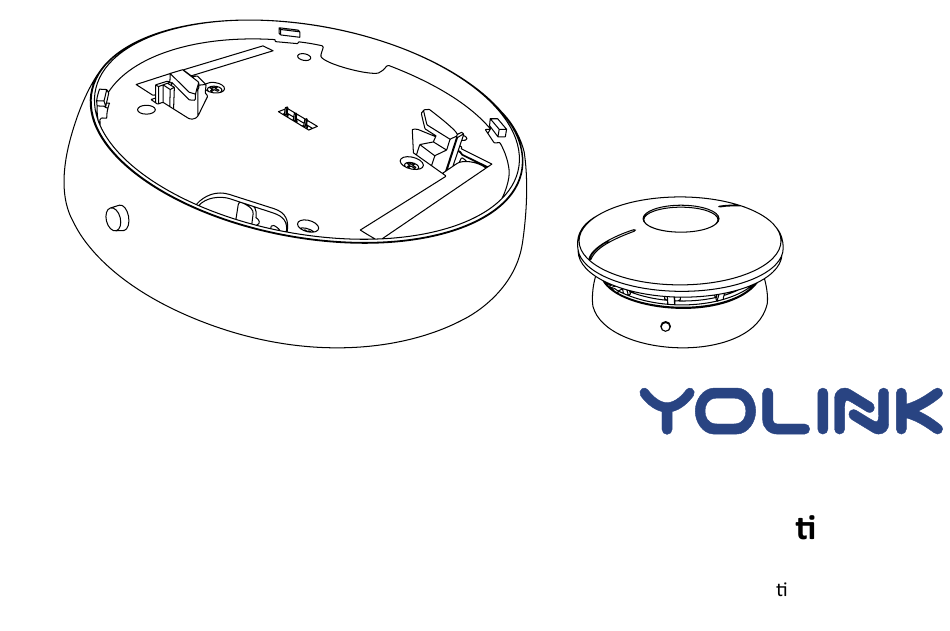

Page 1 Wireless Communica on Base YS7A01-UC Installa on & User Guide Rev 1.0...
Page 2 Thank you for purchasing YoLink products and for entrus ng us with your smart home needs! Your 100% sa sfac on is our goal. If you experience any problems with se ng up your new YoLink Wireless Communica on Base, please give us a chance to assist you, before returning your purchase.
Page 3: Table Of Contents
Introduc on ······························································································ 2 · Set Up ····································································································· · 4 · · Installa on (With Detector Head) ······························································· 6 · Using the YoLink App (With Detector Head) ··················································7 About YoLink Control (With Detector Head) ················································14 Maintenance ······················································································· ····18 · Speciﬁca ons ····················································································· ·····20 ·...
Page 4: In The Box
A. In the Box A. Wireless Communica on Base B. Quick Start Guide...
Page 5: Introduc On
AJ-939/AJ-933/AJ-938). Used in conjunc on with the Smoke & CO Alarm, it converts the Smoke & CO Alarm into a smart alarm device. Add the Wireless Communica on Base to the YoLink app, you can monitor the real- me status of smoke and carbon monoxide in the detec on area, and you can check the historical alarm record (including type, date and me) via the app.
Page 6 Restoring to Factory Defaults Blinking Green Connec ng to Cloud Fast Blinking Green Establishing Connec on with YoLink System (YoLink Control) Slow Blinking Green Upda ng Blinking Red Once Device is connected to the cloud and is func oning normally...
Page 7 C. Set Up C-1. Set Up - First-Time YoLink Users (Exis ng users proceed to C-2. Add Device, next page) Download the YoLink app through Apple App Store or Google Play Apple iPhone or tablet that is iOS 9.0 Store (Search in the store or use...
Page 8 C-2. Add Device Ta p “ ” b u o n , t h e n s c a n Q R C o d e o n t h e d e v i c e . F o l l o w t h e s t e p s t o a d d t h e d e v i c e Press the SET bu on once to turn on the device.
Page 9: Installa On (With Detector Head)
D. Installa on (With Detector Head) 1. Please refer to the installa on manual packaged with the detector head (ANKA Smoke & CO Alarm, AJ-939) to complete the installa on of your Smoke & CO Alarm 2. Press down the ACTIVATE bu on on the bo om of Detector Head un l the bu on be locked to ac vate the detector head ﬁrst before you connect the detector head to the wireless communica on base Wireless...
Page 10: Using The Yolink App (With Detector Head)
E. Using the YoLink App (With Detector Head) E-1. Device page Details - Tap to go to Details page(refer to page 8 & 9) Connec on Status of smoke & CO alarm and Hub Current Ba ery Level of Communica on Base...
Page 11 E-2. Details page-1 a. Device Type b. Rename the Device c. Choose a Room for device d. Add/Remove from favorites e. Device History Smoke alarm; CO alarm; extremely high temperature warning and self-test history (self-test passed or detector head failed or failed to communicate with the detector head), logged with date &...
Page 12 - Shown red if ba ery level is low p. Firmware Version “#### ready now ” indicates a new update is available (refer to page q. Remove Device From Current Account - Tap to delete the device from your YoLink account...
Page 13 E-3. Device Alarms Device alarms with sounds and no ﬁca ons when both or either of the following condi on is met P l e a s e r e fe r t o t h e i n s t r u c o n s f o r t h e A N K A S m o ke &...
Page 14 Device alerts with no ﬁca ons when either of the following condi on is met Extremely High Detector Head Wireless Detector Head Temperature Failed Communica on Ba ery is Low Exceeding Base Ba ery is Low 135°F (57°C) Yo u w i l l n e e d to re p l a c e t h e w i re l e s s communica on base if ba ery is low, and you will need to replace the detector head if ba ery is low...
Page 15 E-4. Automa on (Set Up Rules For “If This Then Do That”) Go to the “Smart” screen, tap “Automa on” Wireless Communica on Base can be set as a trigger only, with three trigger op ons: Smoke Alarm; CO Alarm; Extremely High Temperature Alarm b.
Page 16 ” in the upper le corner to go to My Proﬁle Go to Se ngs > Voice Assistants for the applicable voice assistant integra on guide YoLink Wireless Communica on Base is integrated with Google Assistant, and is also integrated with IFTTT.com (works as a trigger...
Page 17: About Yolink Control (With Detector Head)
Hub or an internet connec on. (Use of YoLink Control is op onal; you can use the Automa on feature in the app OR use YoLink Control, but YoLink Control oﬀers the beneﬁt of opera on without the Hub or internet connec on.) One device controls another, directly.
Page 18 WATER VALVE CONTROL ONLY), open the Gas/Water Valve Controller ﬁrst , and let it enter pairing mode 2. For the same YoLink Wireless Communica on Base and Gas/Water Valve Controller, you can only choose to either open or close the Gas/Water Valve Controller when the smoke & CO alarm ac vates...
Page 19 / C O / e x t r e m e l y h i g h temperature detected) does not open the valve More advanced sequences, controlling mul ple outputs (e.g. open valve and ac vate siren) are available via the Gas Pipe YoLink app Opened Closed...
Page 20 F-2. Unpairing A t t h e W i r e l e s s C o m m u n i c a o n B a s e ( c o n t r o l l e r ) , p r e s s a n d h o l d SET Bu on (10-15 seconds) t h e S E T b u o n f o r 1 0 - 1 5 s e c o n d s...
Page 21: Maintenance
G. Maintenance G-1. Firmware Update To ensure our customers have the best user experience, we highly recommend you update to the newest version ﬁrmware when an update is available In “Firmware”, if a new version is listed as available (#### ready now), click it to start the ﬁrmware update process The device's ﬁrmware will be updated automa cally within 4 hours (maximum).
Page 22 G-2. Factory Reset Factory reset will erase all of your se ngs and restore it to factory defaults (Removes access network informa on and YoLink Control se ngs). A er the factory reset, your device will remain in your Yolink account...
Page 23: Specifica Ons
H. Speciﬁca ons Input Voltage: 3V DC (2 - AA lithium/Alkaline Non-rechargeable ba ery) 10 years Ba ery Life: ≤ 135mA (working), ≤ 5uA (standby) Device Current Draw: Smoke; carbon monoxide; temperature Detec on Contents: Temperature Value Accuracy: 1 (°F/°C) Detec on Temperature: -4°F-122°F, ±3.6...
Page 24: Troubleshoo
I. Troubleshoo ng Symptoms: 1. Device is oﬄine - If base is not connected to the cloud, press the SET bu on on the communica on base once - If Hub is oﬄine, reconnect the Hub to the Internet and press the SET bu on on the communica on base once - If Hub is not on, power on the Hub again and press the SET bu on on the communica on base once...
Page 25: Warning
J. Warning Please install, operate and maintain the Wireless Communica on Base only as outlined in this manual. Improper use may damage the unit and/or void the warranty Do not install or use this device outside of the temperature and humidity range listed in the Environmental sec on in Speciﬁca ons, on page 20 D o n o t i n sta l l o r u s e t h i s d ev i c e w h e re i t w i l l b e s u b j e c te d to h i g h te m p e rat u re s a n d /o r o p e n ﬂ...
Page 26: Customer Service & Warranty
This warranty only covers the cost of replacement parts or replacement units, it does not cover shipping & handling fees To implement this warranty please give us a call during business hours at 1-949-825-5958, or visit www.yolink.net...
Page 27 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec on against harmful interference in a residen al installa on. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc ons, may cause harmful interference to radio communica ons.
Page 28 Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modiﬁca ons to this equipment. Such modiﬁca ons could void the user’s authority to operate the equipment. FCC RF Radia on Exposure Statement This equipment complies with FCC RF radia on exposure limits set forth for an uncontrolled environment.
