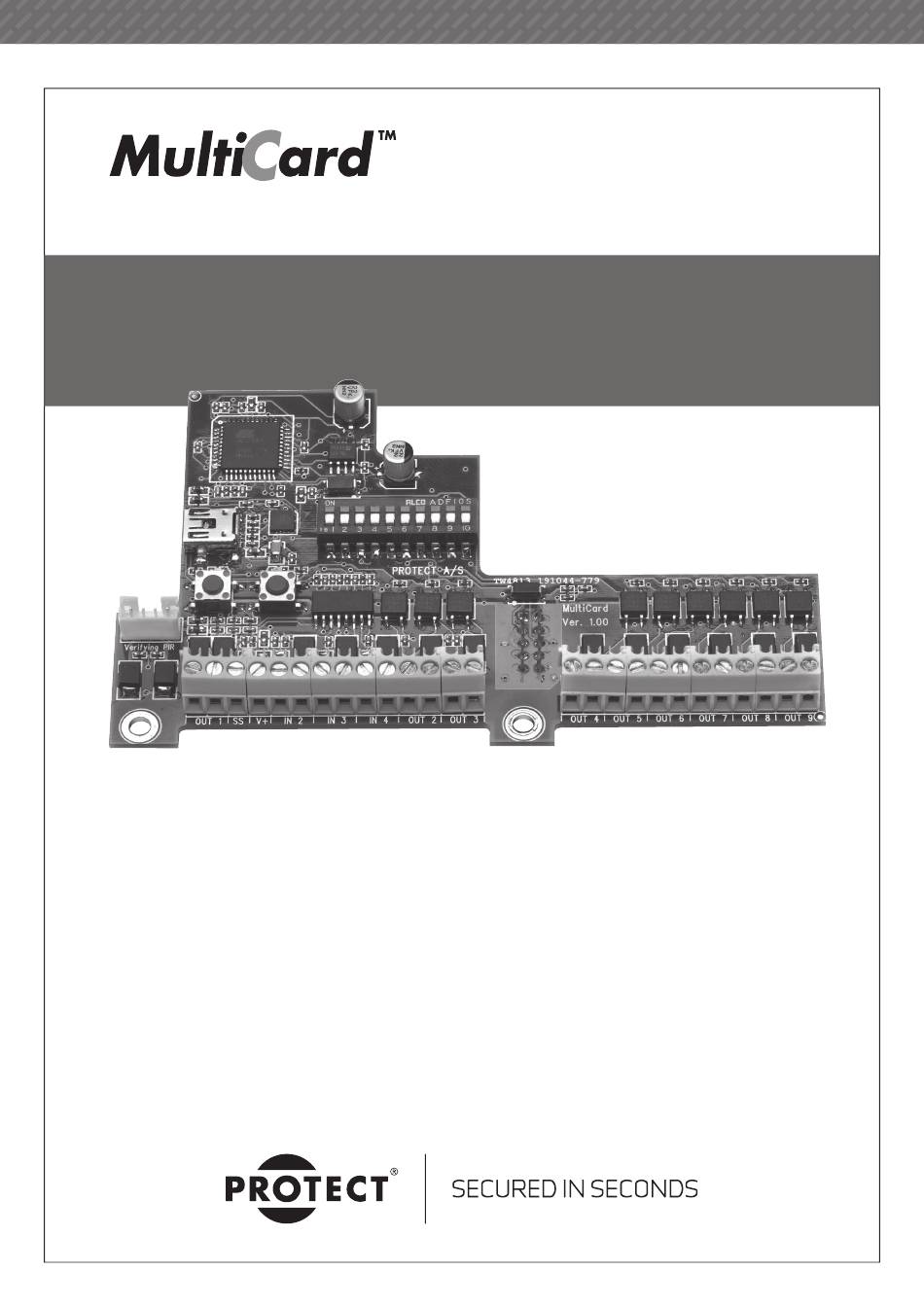

- Page 1 PROTECTGLOBAL.COM Installation Manual Version 1.2...
-
Page 2: Table Of Contents
PROTECT MultiCard ™ Table of contents 1. Introduction to PROTECT MultiCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2. -
Page 3: Introduction To Protect Multicard
The MultiCard will not operate with fog cannon units using software versions before version 2.50. Different software features are available, depending on the software version of the fog cannon and the software version of the MultiCard. See notes on this for each individual program function listed in this document. -
Page 4: Prepare Main Pcb
2. Prepare main PCB Confl icting plastic collar On some fog cannon units a service connector on the main PCB may have to be modifi ed to give space enough to install the MultiCard If this is the case use a work knife to remove the confl icting plastic collar. 3. Make sure to install the MultiCard securely using supplied washers, spacers and screws Bad alignment Correct alignment The connector on the MultiCard MUST align properly with the connector on the main board, and mounting... -
Page 5: Common Features
PROTECT MultiCard ™ 4. Common features Inputs: Type Optically isolated Bidirectional DC input Activation level (guaranteed ON) 7 – 30VDC (Max) Not activated (guaranteed OFF) 0 – 1VDC Current 2mA@12V, 4mA@24V Outputs: Type Optically isolated Bidirectional output Overload protected solid state relay Max Rating 120mA continuous / 30VDC (20VAC) ON resistance Typical 28 Ohm (Max 35 Ohm) Buttons: Service Toggles Blocking mode (service mode) Test For priming/testing pump at very low flow and for 3 seconds at a time max LED’s Flashing slow: Not connected – starting up Green Constantly on: Connected to main PCB – Communicating OK Flashing fast: Test shot is running... -
Page 6: Multicard Diagram
PROTECT MultiCard ™ 5. MultiCard diagram Error Zone E13 Fault, 12V out overload Error Zone E12 Fault, Pump time out error Error Zone E10 Fault, Heat rod error Error Zone E9 Fault, Temp sensor error Error Zone E7, E8 Fault, High/low PCB temp... -
Page 7: Operational Modes
• Dipswitch 9 on the fog cannon’ mainboard must be set to ON, to enable Panic functionality This input is fixed “normally open” (activates when voltage is applied). Outputs 2 to 9 signal various fault conditions on separate outputs. See list above. Do NOT rely solely on the fault indicating outputs on the MultiCard. Fault, Fluid and Fog outputs on fog cannon mainboard should still be monitored for activity. -
Page 8: Atm Protection Mode On Protect 600I With Separated Fault Outputs
PROTECT MultiCard ™ 6.2. ATM protection mode on PROTECT 600i with separated fault outputs Software requirement, fog cannon: Software version 2.60 or higher. Software requirement, MultiCard: Software version 1.03 or higher. Device requirements: This program is specially designed for PROTECT 600i ONLY! Attempts to use this feature on other machines may result in unpredicted behavior. Dipswitch settings: Fog 2 Fog 2 Fog 3 Fog 3 Inputs functionality: IN-SS Activates “Blocking mode” when connected to gnd on mainboard IN-2 ATM shutter manipulation (normally closed) IN-3 Seismic, glass break and/or gas sensor (normally closed) IN-4 No function Outputs functionality:... - Page 9 Outputs 2 to 9 signal various fault conditions on separate outputs. See list above. Do NOT rely solely on the fault indicating outputs on the MultiCard. Fault, Fluid and Fog outputs on fog cannon mainboard should still be monitored for activity. Please note that all trigger inputs are edge triggered and that re-triggering after a fog release depends on...
-
Page 10: Atm Protection Mode On Protect 1100I With Separated Fault Outputs
PROTECT MultiCard ™ 6.3. ATM protection mode on PROTECT 1100i with separated fault outputs Software requirement, fog cannon: Software version 2.60 or higher. Software requirement, MultiCard: Software version 1.04 or higher. Device requirements: This program is specially designed for PROTECT 1100i ONLY! Attempts to use this feature on other machines may result in unpredicted behavior. Dipswitch settings: Fog 2 Fog 2 Fog 3 Fog 3 Inputs functionality: IN-SS Activates “Blocking mode” when connected to gnd on mainboard. IN-2 ATM shutter manipulation (normally closed) IN-3 Seismic, glass break and/or gas sensor (normally closed) IN-4 No function Outputs functionality:... - Page 11 Outputs 2 to 9 signal various fault conditions on separate outputs. See list above. Do NOT rely solely on the fault indicating outputs on the MultiCard. Fault, Fluid and Fog outputs on fog cannon mainboard should still be monitored for activity. Please note that all trigger inputs are edge triggered and that re-triggering after a fog release depends on...
-
Page 12: Atm Protection Mode On Protect 2200I With Separated Fault Outputs
PROTECT MultiCard ™ 6.4. ATM protection mode on PROTECT 2200i with separated fault outputs Software requirement, fog cannon: Software version 2.91 or higher. Software requirement, MultiCard: Software version 1.05 or higher. Device requirements: This program is specially designed for PROTECT 2200i ONLY! Attempts to use this feature on other machines may result in unpredicted behavior. Dipswitch settings: Fog 2 Fog 2 Fog 3 Fog 3 Inputs functionality: IN-SS Activates “Blocking mode” when connected to gnd on mainboard. IN-2 ATM shutter manipulation (normally closed) IN-3 Seismic, glass break and/or gas sensor (normally closed) IN-4 No function Outputs functionality:... - Page 13 Outputs 2 to 9 signal various fault conditions on separate outputs. See list above. Do NOT rely solely on the fault indicating outputs on the MultiCard. Fault, Fluid and Fog outputs on fog cannon mainboard should still be monitored for activity. Please note that all trigger inputs are edge triggered and that re-triggering after a fog release depends on...
- Page 14 PROTECT MultiCard ™...
- Page 15 PROTECT MultiCard ™...
- Page 16 PROTECTGLOBAL.COM PROTECT MultiCard ™ PROTECT A/S is the world’s largest supplier and the only producer of Fog Cannon in Scandinavia. PROTECT is represented worldwide in 50 countries . PROTECT A/S · Hasselager Centervej 5 · DK-8260 Viby J · Tel.: (+45) 86 72 18 81 · Fax: (+45) 86 72 18 82 · Mail: info@protectglobal.com...
