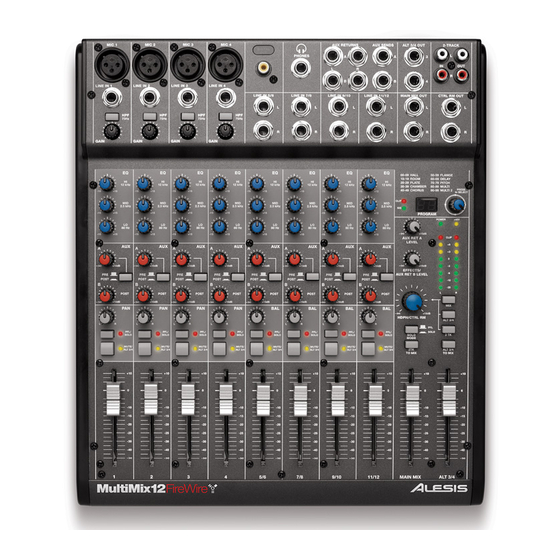

Windows and Macintosh computers. Three Models: Specifications Multimix 12 USB (4 mic/line preamps, 4 stereo inputs) For the more technical-minded, here are some detailed Clean and powerful preamps – up to 50dB of preamp specifications for the MultiMix’s operating levels.
Page 6
Range: - ∞ to +10dB 1/4” Inputs Stereo Aux Return Level: +4dBu nominal, +20dBu maximum RCA Inputs Tape In Level: -10dBV nominal, +5dBV maximum 1/4” Outputs Main Mix, Ctrl Room, Aux 3/4, Ext Aux Send Level: +4dBu nominal, +20dBu maximum Headphone Output: 75 ohm output impedance >105mW into 75 ohms, >40mW into 600ohms...
DISASSEMBLY PROCEDURES 1. REMOVAL OF TOP PANEL/BOTTOM PANEL (Fig.1) (A) TAKE OUT THE 12 PCS SCREW FROM WHICH THE TOP PANEL (B) TAKE OUT THE 9 PCS SCREW FROM WHICH THE BOTTOM PANEL (Fig.1) 2. REMOVAL OF MAIN P.C.B (Fig.2) (A) REMOVE THE 62 PCS KNOB FROM WHICH THE TOP PANEL (B) REMOVE THE 25 PCS NUT AND 25 PCS WASHER FROM WHICH THE TOP PANEL REMOVE THE 24 PCS SCREW FROM WHICH THE TOP PANEL...
Page 10
3.REMOVAL OF POWER P.C.B (Fig.3) (A) REMOVE THE 2 PCS SCREW FROM THE POWER P.C.B (B) REMOVE THE 2 PCS SCREW FROM THE BRACKET (C) REMOVE THE 3 PCS OF CABLE CONNECTOR FROM THE POWER P.C.B (D) REMOVE THE 2 PCS SCREW FROM THE USB P.C.B (Fig.3)
