Summary of Contents for Simpled UF-SP

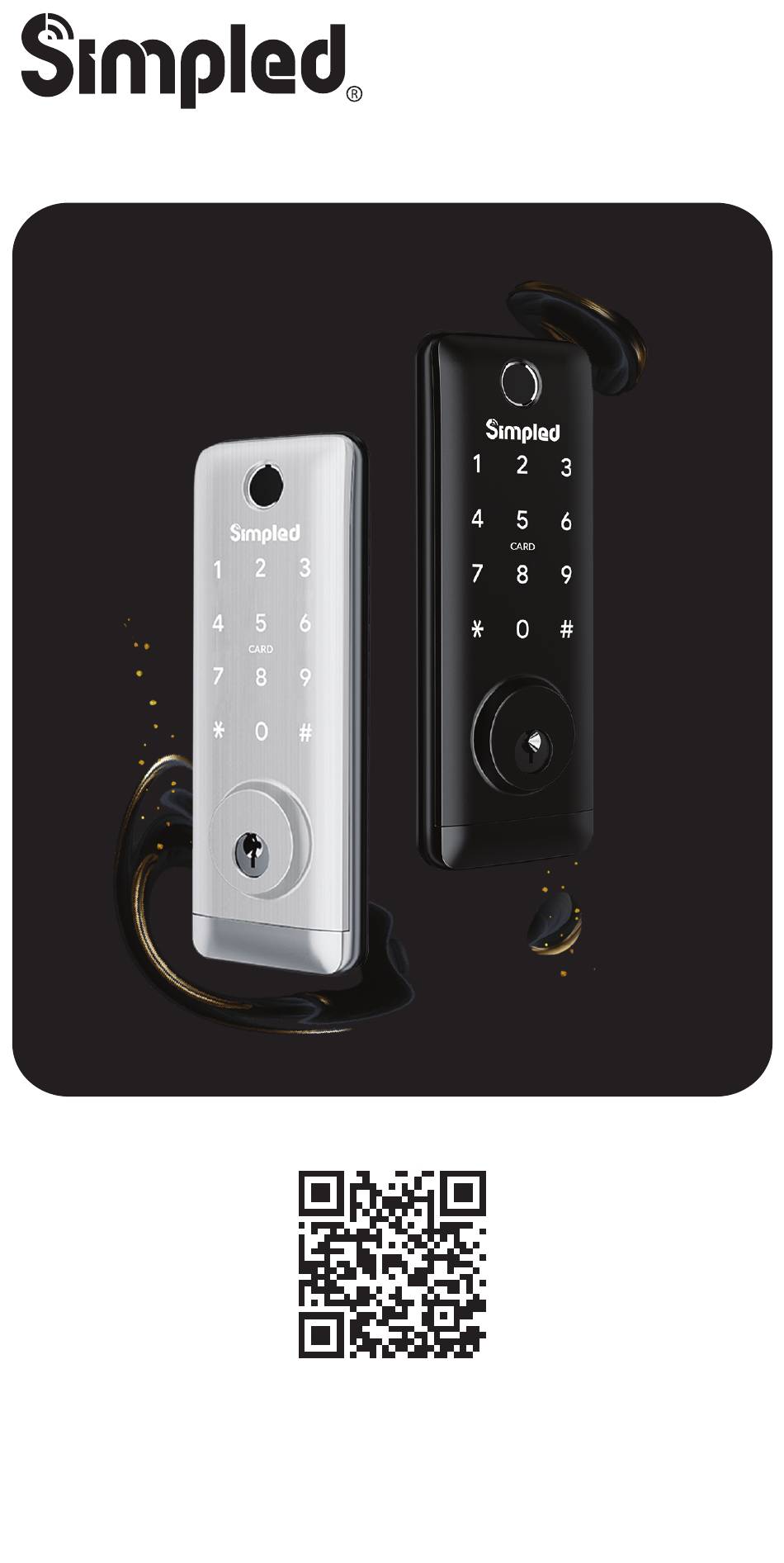

- Page 1 User Manual : UF-SP Simplified, for peace of mind! Scan for more help! Security is just a touch away...
- Page 2 Simpled is a London-based tech company rolling out innovative IoT devices to elevate the smart home experience. Control your home with a range of smart security devices from Simpled. Whether it’s a Smart Door Lock, a Camera Doorbell, Simpled put you in control of your home security.
-
Page 3: Table Of Contents
Thank you for choosing the Simpled Slim Door Lock. Please 1. Read this manual completely before using the Simpled Slim Door Lock. 2. Alkaline Batteries are recommended. 3. Replace the battery when you notice the low-battery alarm. 4. Keep the Emergency keys outside the house. -
Page 4: Product Overview
Installation Operation Contact Us Overview Product Overview Outside Inside Battery Cover Front Panel Back Panel Deadbolt knob 72.2 mm 63 mm Outside Inside 1. Fingerprint Scanner 5. Battery Cover 2. Card / Tag reader 3. Keypad 4. Keyhole .: 1 :. -
Page 5: What's Included
Installation Operation Contact Us Overview What’s Included? Name Name M4x30 mm Screw Stubs: Front Panel for front Panel lower (Need 2) M4x30 mm Screw Stubs: Back Panel for front Panel upper (Need 1) Mortise Screws: 25x4 mm Mortise: Latch Type (For Wooden Door) Mortise Screws: 10x5 mm Proxy Fobs / Stickers... -
Page 6: Specification
Installation Operation Contact Us Overview Specifications Doors Aluminium Door Model UF-SP Applicable Wooden Door Working Materials Zinc Alloy 6V/4 x AA Batteries Voltage Door Thickness Lock Weight 2.0 KG 35-60 mm to Fit Bluetooth Fingerprint Fingerprint: 200 Data Password Unlocking... -
Page 7: Installation Opening Direction
Overview Installation Operation Contact Us Installation Opening direction Left open Right open Spindle should always remain horizontally Make sure the latch is inside Left/Right Open Switch to “L” for Left Open and “R” for Right Open Doors. It’s in the PCB inside the back panel Deadbolt knob These details are critical. -
Page 8: Step1 Install Mortise
Overview Installation Operation Contact Us Step2 Screw the Stubs and fit the rubber gasket Step1 Install Mortise to the panel Step3 Install front Panel Step4 Fit the rubber gasket to the panel Spindle should always remain horizontally Make sure the latch in inside Step6 Fixed back Panel Step5 Connecting front and back panels... -
Page 9: Operation
Installation Operation Contact Us Overview Operation Setting up the Smart App 1. Download the “TTlock App” from the App Store or Google Play by either - Scanning the QR code - Searching the “TTLock” app 2. Sign up for a TTlock account, and add the smart lock to the device list Scan for more help! You can register an account by your email address or mobile number that... -
Page 10: Bluetooth Unlock
Notice: Generally, the password for a lock that has not yet been added is 123456 Bluetooth Unlock Try to open the lock by tapping on the “Lock Icon”. Please ensure there is no problem with Bluetooth communication, and the phone is within the 5-meter range of the Simpled Slim Smart Lock. .: 7 :. -
Page 11: Add Fingerprint
Installation Operation Contact Us Overview Add Fingerprints For adding a new fingerprint, 1. Select Fingerprint from the lock screen in the app 2. Tap on the three dots 3. Select Add Fingerprint 4. Choose a name for later reference “ It helps you to recognise the fingerprint in the unlocking reports”. -
Page 12: Add Passcodes
Operation Contact Us Overview Add Passcodes You can create different passcodes types to open the Simpled slim lock: permanent, time-limited, OTP(one-time passcode), cycle or custom. You can easily share the passcode with other users via SMS, Email, WhatsApp. You can create, limit, share and delete a passcode without a bridge using the app when you are near the lock. -
Page 13: Passcode Management
Installation Operation Contact Us Overview Passcode Management Click on “Passcodes”. In this section, the Admin user can 1. Change, delete or reset passcodes. 2. Review the unlock records of passcodes. Create and Send e-Keys By selecting the “Send eKey” as shown in the figure, you can create and share an electronic key with your friends, family, maid, dog walker or your AirBnB guests. -
Page 14: Add Fobs/Tags/Stickers
Installation Operation Contact Us Overview Add Fobs/Tags/Stickers: Before a proxy fob or sticker can open the lock, it is required to be added first. Fobs/Stickers can also be Permanent or Limited by time Unlocking Records Tap on “records”. In this part, you can review all the unlock records .: 11 :. -
Page 15: Gateway Pairing
Operation Contact Us Overview Gateway Pairing The Simpled Smart Gateway is a bridge between Simpled Smart locks and WiFi. With the Gateway, you can • open your lock from anywhere • remotely read the lock operation records, including, fingerprint, passcodes •... - Page 16 Installation Operation Contact Us Overview Pair the Gateway with APP Activate Passage Mode 1. Choose the lock 2. Tap on “Setting” 3. Select “Passage Mode” 4. Turn on this mode and press Save .: 13 :.
-
Page 17: Faq
Overview Installation Operation Contact Us 1. How can I read the operation records? 1. Open the app 2. Select your lock 3. Select "Records" 2.Why can't I unlock the lock after activating the passage mode? The lock needs to be unlocked once, and only then, the passage mode will be activated. 3. - Page 18 Note:...
- Page 19 Note:...
-
Page 20: Contact Us
2. Locate your Simpled purchases. WOW! 3. Click “ Write a product review” . If you have any question, concerns or complaints about your Simpled purchase, please contact us at: Email: support@simpled.tech MEH. We will get back to you within 24 hours, Promise.
