I.Trek TR-1 User Manual

Personal tracking system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

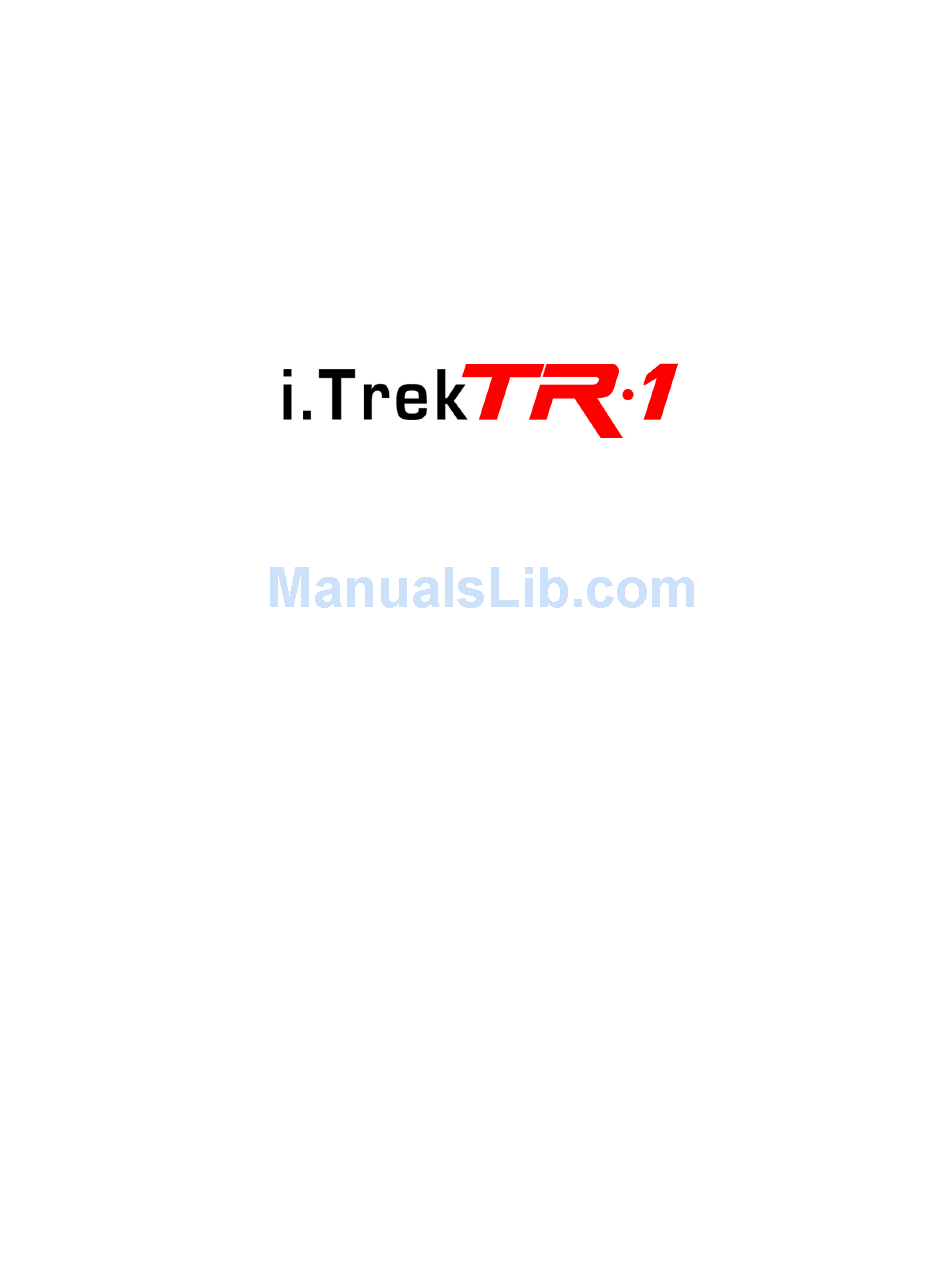

Personal Tracking System
User Manual
Copyright 2007
www.itrekgps.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-1 and is the answer not in the manual?

Questions and answers

Related Manuals for I.Trek TR-1

Summary of Contents for I.Trek TR-1

  • Page 1 Personal Tracking System User Manual Copyright 2007 www.itrekgps.com...

  • Page 2: Table Of Contents

    Support and Warranty Appendix 1: Technical Information Appendix 2: Setting up SOS Dial Back Number Appendix 3: Pairing Bluetooth Decoder to a Computer Appendix 4: Pairing Bluetooth Decoder to a PDA Appendix 5: Pairing Bluetooth Decoder to a Smart Phone...

  • Page 3: Introduction

    There is no monthly fee to pay and your privacy is completely protected. With i.Trek TR-1, user can track any object globally in real time as long as the tracking object is within cell phone network and has line of sight with sky.

  • Page 4: Gps/Gsm Tracker

    Alarm Release Button Expansion Port SOS Button Power Button Press the power button to turn on / off the GPS tracker Battery LED – Battery low and requires charge Green – The battery is fully charged Orange – The battery is charging GSM LED Flashing Quickly –...

  • Page 5: Bluetooth Decoder

    Bluetooth Decoder (2) (3) (1) GPS LED Flashing orange – The GPS is searching for satellites Solid orange – The GPS position has fixed (2) Decoder LED Flashing red (4 sec. interval) – The decoder is decoding input data (3) Input LED Solid green –...

  • Page 6: Setting Up Gps / Gsm Tracker

    Setting up GPS / GSM Tracker 1. SIM Card Installation SIM card slot is located inside the battery cabinet. Please open the battery cover underneath the tracker to locate SIM card slot. If the battery is already installed, please remove the battery to reveal the SIM card slot. Follow the figures below to install the SIM card.
  • Page 7 Setting up GPS / GSM Tracker (Cont.) 3. Switch On Press the power button to switch on TR-1 tracker. Please make sure the GPS LED is flashing indicating it is getting a fix from the satellites. This may take 1 –2 minutes when you use the tracker for the first time.

  • Page 8: Tracking With Bluetooth Decoder

    Solid blue LED ( ) means you have a Bluetooth connection with the host device. With optional PDA or USB cable, it is also possible to connect Bluetooth decoder to a PDA or Computer via direct wire connection.
  • Page 9 Tracking with Bluetooth Decoder (Cont.) 6. Using i.Trek Real Time Tracking software (1) Current Location – Display current location of the tracker (2) Starting Location – Display starting location of the tracker (3) Map View – Display streets and street names (4) Satellite View –...

  • Page 10: Tracking Without Bluetooth Decoder

    From a mobile phone, dial the phone number of the SIM card inside TR-1 tracker to establish a connection. Press “71” and hang up the phone. In few seconds, the phone will receive a short text message with coordinate information.

  • Page 11: Faqs And Troubleshooting

    FAQs and Troubleshooting Is there a monthly fee for using i.Trek TR-1 Personal Tracking System? There is no additional fee for using I.Trek TR-1 Tracking System besides your regular phone call charge. The position update on the map is jumpy In order to display the position on the map, the tracker receives the information from the satellite and sends the data through GSM network to the decoder.

  • Page 12: Appendix 1: Technical Specifications

    Appendix 1: Technical Specifications Antenna Receiver Frequency: 1575.42 MHz (L1 band) C/A code Antenna Type: Built-in Active Antenna with MMCX external antenna jack GPS Receiver Technology: SiRF Star III Satellite Measure Used: 20-channel parallel automatic selection Tracking Sensitivity: -159 dBm Operating Temperature: -10°C to 55°C Battery:...

  • Page 13: Appendix 2: Setup Sos Dial Back Number

    Appendix 2: Setup SOS Dial Back Number TR-1 Tracker can report current position via SMS to pre-set phone numbers by press the SOS button. Setup the SOS dial back numbers: Dial to TR-1 tracker and establish a connection. Press and press default pass code 0000. The user will hear a long dial tone to verify the setup mode.

  • Page 14: Appendix 3: Pairing Bluetooth Decoder To A Computer

    Appendix 3: Pairing Bluetooth Decoder to a Computer The instruction is provided as a general guideline. The steps may be different on your particular device. Please refer to user manual of each device for more detailed information. Windows with XP Bluetooth Manager Open Control Panel.

  • Page 15: Appendix 4: Pairing Bluetooth Decoder To A Pda

    Do not check Secure Next when the new found device appeared and highlighted. Select com port that is allowed by your PDA (ie COM7) and Click Finish. Palm OS Click on Bluetooth Make sure Bluetooth is selected to On.

  • Page 16: Appendix 5: Pairing Bluetooth Decoder To A Smartphone

    Appendix 5: Pairing Bluetooth Decoder to a SmartPhone The instruction is provided as a general guideline. The steps may be different on your particular device. Please refer to user manual of each device for more detailed information. Windows Mobile 2003 SmartPhone Configure Bluetooth Serial COM Port •...
