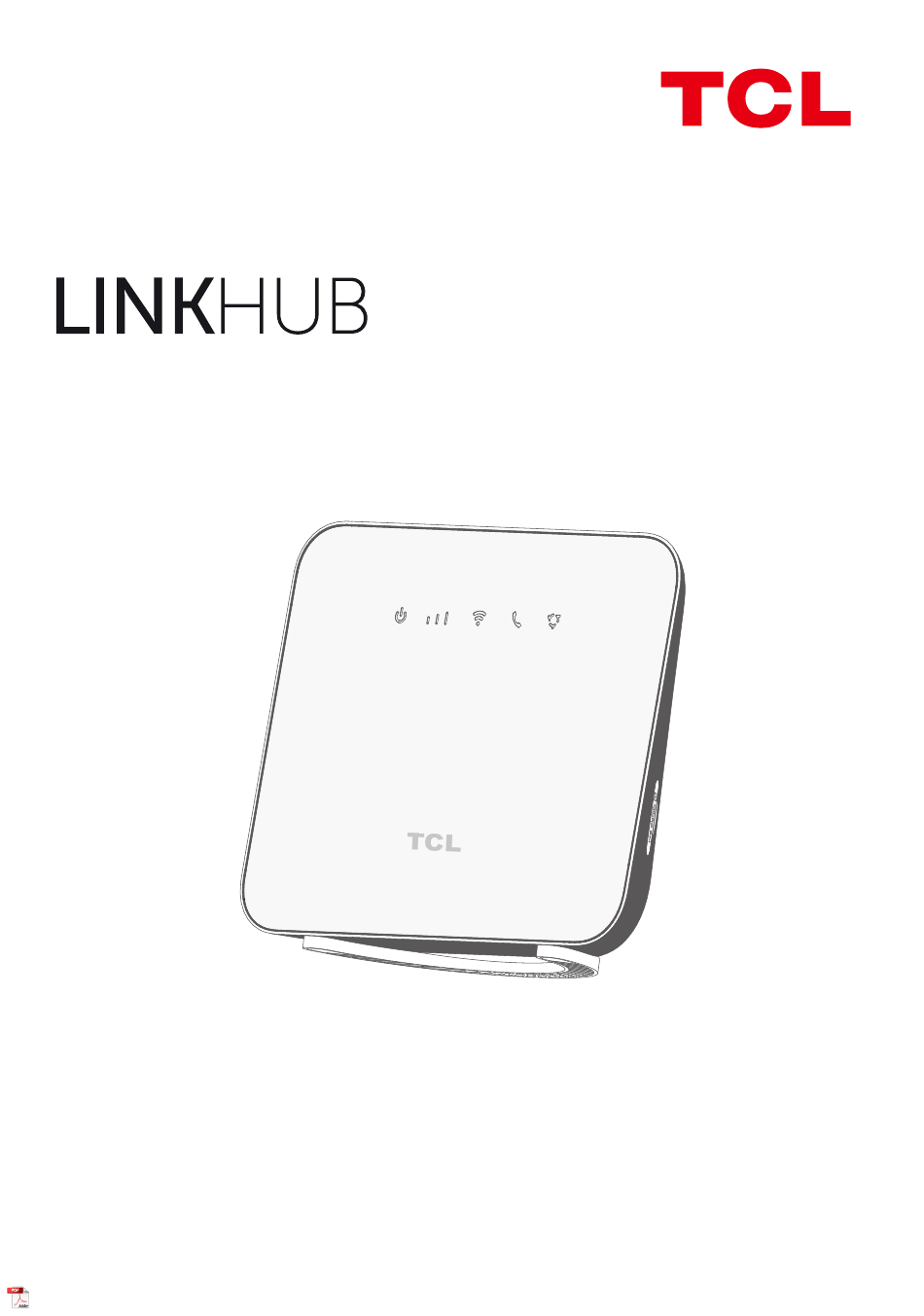

- Page 1 User Manual HH42NK1...
-
Page 2: Table Of Contents
Contents Read this first ..............................3 Chapter 1. Meet your CPE ...........................4 1.1 System requirements ............................4 1.2 Overview ................................4 Chapter 2. Get started with your CPE .....................6 2.1 Insert a micro SIM card ............................6 2.2 Access CPE network ............................6 2.3 Install external antennas (optional) .........................8 2.4 Use the telephone function ..........................8 Chapter 3. -
Page 3: Read This First
• TCL Communication Ltd. does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation... -
Page 4: Chapter 1. Meet Your Cpe
Chapter 1. Meet your CPE This Cat4 LTE CPE provides wired and wireless access for multiple computers and mobile devices. With various features and functions, the CPE is a good hub of your home or business network. 1.1 System requirements Your CPE is compatible with Wi-Fi-enabled devices which support 2.4 GHz (802.11 b/g/n). - Page 5 • Blinking blue: the device is registered to the network. • Solid blue: the device is connected to the network. 5. Network indicator • Solid red: micro SIM card is not available or the device is not registered to the network. Install an external antenna to improve signal reception. 6.
-
Page 6: Chapter 2. Get Started With Your Cpe
Chapter 2. Get started with your CPE This chapter introduces the basic instructions on how to set up your CPE and make connections. The instructions may vary depending on your CPE model. 2.1 Insert a micro SIM card Prerequisite: Select the right size of SIM card for your CPE. Nano-SIM (4FF) Micro-SIM (3FF) Mini-SIM (2FF) - Page 7 LAN1 Access wired network To establish a wired network connection, connect the wired device to the LAN port of your CPE using an Ethernet cable. Access wireless network To establish a wireless network connection, select the Wi-Fi name (or the SSID) of the CPE on your wireless devices, and enter the Wi-Fi password.
-
Page 8: Install External Antennas (Optional)
2.3 Install external antennas (optional) In areas with weak signal, you can install external antennas to enhance signal reception. Install external antennas to your CPE as illustrated below. Important: Before installing the external antennas, ensure your CPE is powered off and disconnected from the power supply. -
Page 9: Chapter 3. Access The Web Ui
Chapter 3. Access the web UI This chapter introduces how to get access to the web UI of your CPE, and gives you a glimpse of the web UI. 3.1 Log in to the web UI To log in to the web UI, follow these steps: 1. Open a web browser on the device connected to the CPE network wiredly or wirelessly. -
Page 10: Chapter 4. Configure Your Cpe
Chapter 4. Configure your CPE In this chapter, we will show you how to get the most out of your CPE using the web UI. In the web UI, you can customize settings, like Wi-Fi name, Wi-Fi password, and more. 4.1 Status This section allows you to view your device information, such as Wi-Fi name, upload speed, download speed, software version, profile name, and monthly plan. - Page 11 Incoming messages are stored in this folder. Inbox Outbox Outgoing messages are stored in this folder. Unsent messages are stored in this folder. Draft Write a new message in this folder. New message Configure SMS settings in this folder. SMS Settings Refer to the following table for commonly used operations of SMS messages.
-
Page 12: Settings
4.4 Settings This section allows you to prioritize the network connection, configure connection mode, manage WAN, LAN and Wi-Fi settings, and more. Connection priority In this tab you can prioritize the network you want to connect first. After prioritizing the network connection according to your preferences, the CPE will follow an order of priority when detecting available connections. - Page 13 Set up the WAN connection mode and modify related parameters under this option. You can set the connection mode to DHCP, PPPoE or Static IP. Dynamic Host Configuration Protocol (DHCP) is a client or server protocol that automatically provides you with an Internet Protocol (IP) DHCP host.
- Page 14 Check the Wi-Fi password in this item. Password Advanced Configure advanced Wi-Fi settings in this option. Select country or region in this item. Country/Region Different regions use different channels: Channel 1-11 in FCC (US) / IC (Canada), Channel 1-13 in ETSI (Europe), and Channel 1-13 in MKK Channel (Japan).
- Page 15 1. When the SIM PIN feature is enabled, click Change SIM PIN. 2. Enter the original SIM PIN code and confirm the new SIM PIN code. Change SIM PIN 3. Click Apply. Note: When the SIM PIN code is entered incorrectly 3 times, a PUK code is required.
-
Page 16: System
If external users cannot access certain network services within the LAN, you can enable the DMZ function and set a new host IP address. UPnP Universal Plug and Play (UPnP) is a set of networking protocols that allows connected devices to discover each other and establish functional network services for data sharing, communications, and entertainment. - Page 17 Do not power off the device during the upgrade process. Otherwise, it may be damaged. Device management Login password Enter your current password, and set a new one. The new password must be 4 to 16 characters long. System settings In this option, you can set the system language and the time zone.
-
Page 18: Important Safety Information
Important safety information Read all the safety information before using your product. Failure to follow these safety instructions could result in injury, or damage to your product or other property. Important safety instructions • Observe signs and notices that prohibit or restrict the use of wireless devices. • Always handle your device with care. -
Page 19: Regulatory Compliance Information
Regulatory compliance information This section introduces regulatory information, certification, and compliance information specific to your product. Eelectromagnetic fields (EMF) This product complies with all applicable standards and regulations regarding exposure to electromagnetic fields. FCC compliance statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 20: Disposal And Recycling Information
Disposal and recycling information At TCL, we continually strive to improve our operations and products, and minimize our impact on the environment. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. -
Page 21: Troubleshooting
Troubleshooting If you encounter problems while using the product, use the troubleshooting information to help determine the problem and find possible solutions. General problems Problem Solution • Log in the web UI, then go to Settings > Wi-Fi > Basic. Click Show password to obtain the current Wi- I forget the Wi-Fi password. - Page 22 • Make sure 192.168.1.1 is entered correctly in the web browser. • Make sure the CPE is powered on. I can’t log in to the web UI. • Check whether the device is connected to the CPE network properly. 1. Log in to the web UI. 2. ...
- Page 23 1. Log in to the web UI. 2. Go to Settings > Mobile Data > Network settings. How to connect to 4G network? 3. Select 4G only.
- Page 24 First Edition TCL and the TCL logo are trademarks of TCL Communication Ltd. All other trademarks and trade names are the property of their respective owners. © 2021 TCL Communication Ltd. All rights reserved.
