Flylink JF-H-42H User Manual

Folding treadmill

Hide thumbs

Table Of Contents

FOLDiNG TREADMiLL

USER MANUAL

Please put the red safety key on the digital panel before turning on, otherwise

the treadmill will display E07 problem.

Table of Contents

Need help?

Do you have a question about the JF-H-42H and is the answer not in the manual?

Questions and answers

Summary of Contents for Flylink JF-H-42H

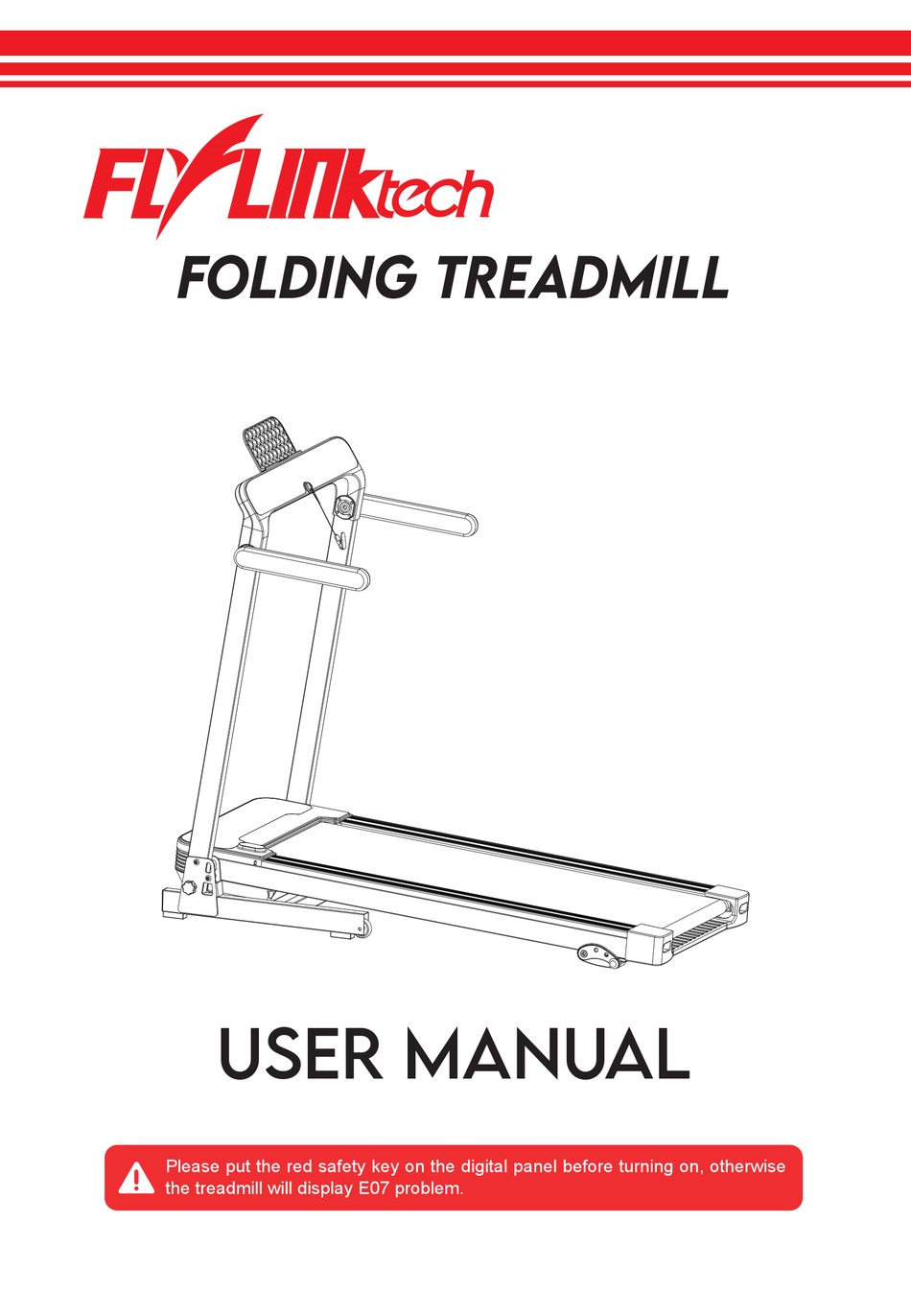

Page 1 FOLDiNG TREADMiLL USER MANUAL Please put the red safety key on the digital panel before turning on, otherwise the treadmill will display E07 problem.
Page 2 FITSHOW Installation Procedure 1. Scan the QR code on the right 2. http://fitshow.com/qr 3. Reprinted to the App Store to download and install, open the App, allow the permissions according to the system prompts 4. Connect to (FS-XXXXXX-A) 5. Login to the App, please use the mobile number or email to register for the new user 6.
Page 3: Table Of Contents
CATALOG ..............Product Brief Introduction ........Safety Precautions and Warning Instructions ..........Main parameters and configuration list ............Product Installation Instructions ........Folding and Inclines Adjustment Instructions ............Fitness Advice and Guidelines ................Product Instructions ................Product Maintenance ............ Common Troubleshooting Methods...
Page 4: Product Brief Introduction
Product Brief Introduction JF-H-42H Product Model: Mobile Phone Dashboard Bracket Components Left Handrail Right Handrail Tube Tube Safety Key Right Upright Tube Left Upright Tube Sidebar Acrylic Motor Cover Rear Corner Torx Knob Running Belt Guard Forefoot Pad Manual Inclines...
Page 5: Safety Precautions And Warning Instructions
Safety Precautions and Warning Instructions Please read the instructions carefully before use and pay attention to the following security precautions: ■ The treadmill is suitable to be placed indoors to avoid moisture,do not splash water on the treadmill,and do not place any foreign objects.
Page 6: Main Parameters And Configuration List
Main parameters and configuration list The main technical parameters Serial number Description Parameter name Rated voltage US:120V/60Hz; UK:220-240V/50-60 Hz Control method Meter touch type, APP Display method LED, APP Incline 3 Manual Incline Speed range 0.6-10 MHP(1-16km/h) Running belt size 430*1100mm (L.*W.) Product unfolded size 1375*750*1250mm(L.*W.*H.)
Page 7: Product Installation Instructions
Product Installation Instructions Step1. Take the product out of the box, remove S t e p 2 . Ta k e o u t t h e t o r x k n o b i n t h e the outer PE bag, and place it on flat ground.
Page 8: Folding And Inclines Adjustment Instructions
Folding and Inclines Adjustment Instructions 1. When the product is not in use, it can be put away. When folded, support the rear tail cover with your hand and lift it up until the support rod is supported. To lay down, touch the middle connection of the support rod with the top of the foot, and lay down slowly.
Page 9: Fitness Advice And Guidelines
Fitness Advice and Guidelines Warm-up 5 to 10 minutes of warm-up exercise before each use of the machine. Breathing should not be shielded during exercise. In general, inhale through the nose and exhale through the mouth when preparing to restore Breathing the movement.Breathing and movement should be coordinat-ed, If you feel short of breath, stop exercising immediately.
Page 10: Product Instructions
Product Instructions a. Brief Description This electronic meter is easy to use and has few adjustment parameters. Treadmill parameters: speed value. Sports parameters: distance value, calorie value,time value. Sports mode: default mode, program mode, manual mode. Default mode: customize exercise amount Program mode: Fixed exercise amount Classify countdown mode: single value to set the amount of exercise b.LED Digital Display...
Page 11 e. Sport Mode 1. Default Mode: Before running the product, check whether the power plug is in good contact with the socket, whether the safety lock is in place, and whether the main power switch is turned on. When the product is in standby state, the window displays 0:00, press the switch button, the product starts to count down for 3 seconds, the speed window displays 0.6 mph, the time window displays 0:00 by default, press the speed shortcut keys (2, 4, 5, 6, 8) value, the window will display the...
Page 12: Product Maintenance
Product Maintenance Lubricating After the running belt has been used for a period of time, it must be lubricated with 100% silicone treadmill lubricant oil. 1.Recommendations: --Use less than 3 hours per week, lubricate once every 5 months. --Use 4-7 hours a week, lubricate once every 2 months --Use more than 7 hours a week, lubricate once a month Don'tuse an excessive amount of lubricating agent.It is not that the more lubricant, the better effect.
Page 13 4. Running belt deviation adjustment All treadmils need to be adjusted before they are shipped from the factory and after they are installed.However, after a period of time, they may stll run off the track. There may be several reasons for this phenomenon: (1) The host is not placed flat;...
Page 14 FCC ID: 2A48IJF-H-42H NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 15: Common Troubleshooting Methods
Common Troubleshooting Methods...
Page 16 KATALOG ..............Produkt kurze Einführung ........Sicherheitsvorkehrungen und Warnhinweise ..........Hauptparameter und Konfigurationsliste .............. Produktinstallationsanleitung ........ Anweisungen zur Falt- und Neigungseinstellung ............. Fitness-Ratschläge und Richtlinien ................Produktanweisungen ..................Produktpflege ........Allgemeine Methoden zur Fehlerbehebung...
Page 17 Produkt kurze Einführung Produktmodell: JF-H-42H Dashboard- Handyhalterung Komponenten Rechtes Handlaufrohr Linkes Handlaufrohr Sicherheitsschloss Rechtes Standrohr Linkes Standrohr Seitenleiste Motorabdeckung aus Acryl Eckenschutz Torx-Knopf hinten Laufgürtel Fußpolster Manuelle Steigungen Bewegliches Rad Griff Verriegelungsstift...
Page 18 Sicherheitsvorkehrungen und Warnhinweise Bitte lesen Sie die Gebrauchsanweisung vor Gebrauch sorgfältig durch und beachten Sie die folgenden Sicherheitsvorkehrungen: ■ Das Laufband ist für die Aufstellung in Innenräumen geeignet, um Feuchtigkeit zu vermeiden, kein Wasser auf das Laufband zu spritzen und keine Fremdkörper abzulegen. ■...
Page 19 Hauptparameter und Konfigurationsliste Technische Hauptparameter Seriennummer Beschreibung Parametername Nennspannung 220-240V/50-60Hz Steuerungsmethode Meter-Touch-Typ, APP Anzeigemethode LED, APP Steigung 3 Manuelle Steigung Geschwindigkeitsbereich 1-16km/h Laufbandgröße 430*1100mm (L.*W.) Produkt entfaltete Größe 1375*750*1250mm(L.*W.*H.) Produktgewicht N.W:39kg G.W.:45kg Verpackungsgröße 1470*800*280mm(L.*W.*H.) FCC ID 2A48IJF-H-42H Verpackungsmaterialliste Seriennummer Name Menge Hauptmaschine 1PCS...
Page 20 Produktinstallationsanleitung Schritt 1. Nehmen Sie das Produkt aus der Schritt 2. Nehmen Sie den Torx-Knopf aus Verpackung, entfernen Sie den äußeren PE- dem Zubehörbeutel. Halten Sie das Standrohr Beutel und legen Sie es auf einen ebenen von Hand und drehen Sie es in Pfeilrichtung, Boden.
