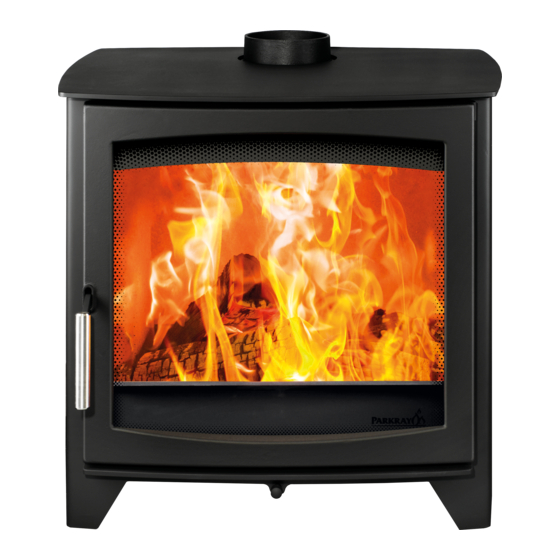

Summary of Contents for Hunterstoves Group Aspect 14 Eco Boiler

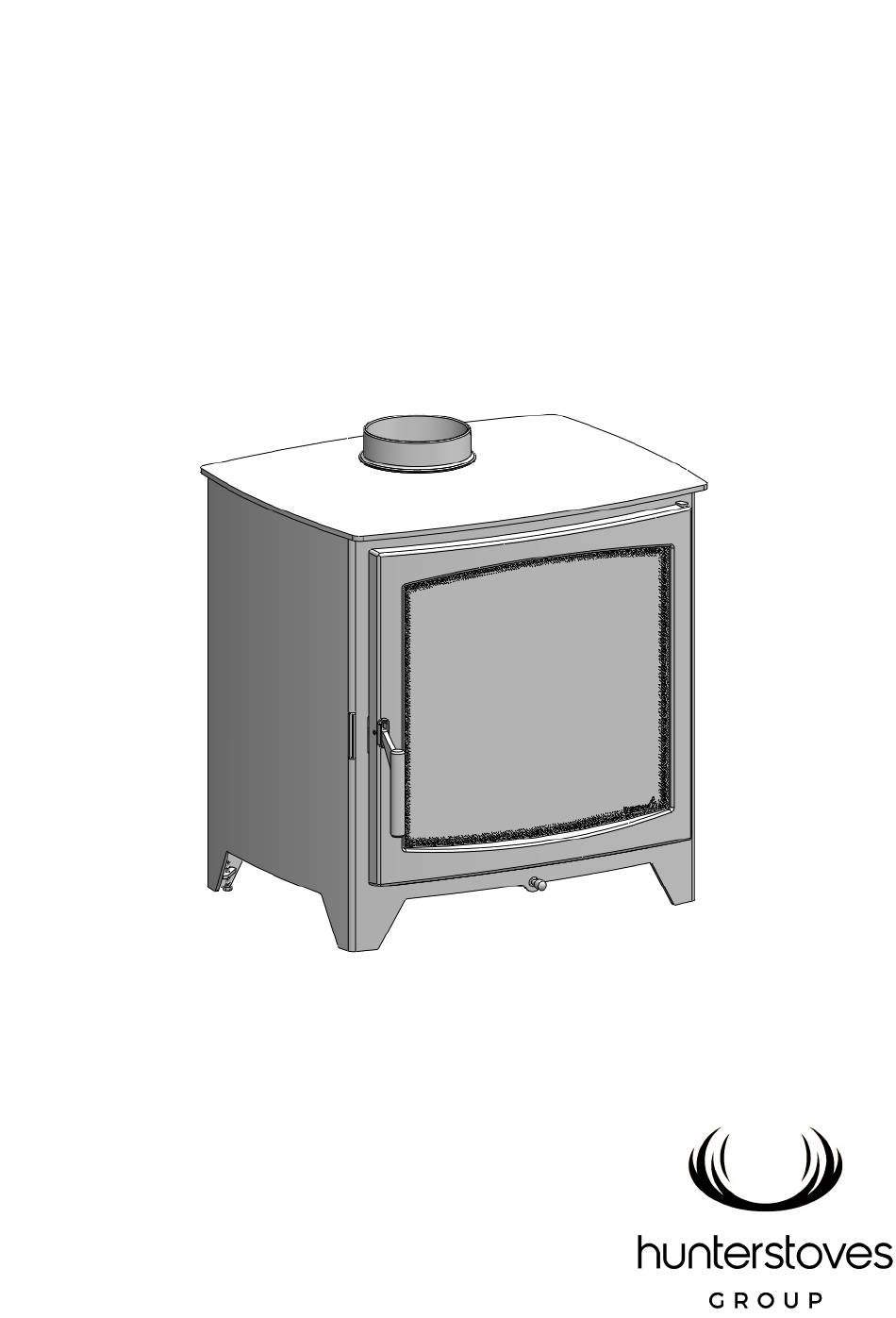

  • Page 1 Installation Instructions Aspect 14 Eco Boiler Stove www.hunterstoves.co.uk...
  • Page 2: Table Of Contents

    INSTALLATION INSTRUCTIONS Contents Introduction Safety General Safety instruction Technical specifications Technical data Product fiche Item list Appliance dimensions Material clearances Installation requirements 8-12 Legal requirements Competence person scheme Flue & chimney requirements Hearth Combustion air supply Material clearances Carbon monoxide (CO) alarm Boiler requirements 9-11 Certificate of compliance...
  • Page 3: Introduction

    INSTALLATION INSTRUCTIONS 1 Introduction This appliance was designed and manufactured with the highest possible quality, performance and safety requirements to comply with the essential local regulations. The appliance is supplied with an installation and user manual and should be kept safe for future reference.
  • Page 4: Technical Specifications

    INSTALLATION INSTRUCTIONS Technical specifications Technical data Model: Aspect 14 Eco Boiler Efficiency (%) Nominal Space Heating Output (kW) Nominal Water Heating Output (kW) CO @ 13% O 0.06 Mean Flue Temperature (°C) Min. Draft (Pa) Max Water Operating Pressure (Bar)
  • Page 5: Item List

    INSTALLATION INSTRUCTIONS Item list Note the items listed below when removing the packaging. Check the appliance and accessories for any damages. Please contact the supplier if any of the components are missing or damaged. The appliance is delivered in packaging that can be recycled. The glass cannot be recycled so must be disposed of along with any ceramics or porcelain waste in accordance with local regulations.
  • Page 6: Appliance Dimensions

    INSTALLATION INSTRUCTIONS Appliance dimensions Dimensions Aspect 14 1” Eco Boiler Dimension in mm...
  • Page 7: Material Clearances

    300mm+ 75mm Combustible Material Combustible Material Model Aspect 14 Eco Boiler 130mm 500mm Hearth Requirements All appliances must be installed on a non-combustible constructional hearth measuring at least 125mm thick. The position of the stove and the size of the hearth are governed by the building regulations (Approved Document J).
  • Page 8: Installation Requirements

    INSTALLATION INSTRUCTIONS Installation requirements Legal requirements These instructions cover the requirements to ensure satisfactory installation of the appliance, although details may need slight modification to suit particular local site conditions. In all cases the installation must comply with current building regulations, local authority bye-laws, European and national standards and other specifications or regulations.
  • Page 9: Combustion Air Supply

    INSTALLATION INSTRUCTIONS Combustion air supply The room or space with which the appliance is going to be installed into requires a permanently open vent. The size of the opening is governed by Building Regulations Approved Document J, section 2, table 1. Due consideration should be given to air requirements for any other appliance in the same room or space.
  • Page 10 INSTALLATION INSTRUCTIONS Do fit an open cold feed and expansion cistern with separate cold feed and vent pipes. The cold feed and vent pipes must be unvalved. The open vent pipe should have a diameter of 22mm and rise continuously from the boiler. It is common practice to form the vent pipe from an extension of the primary flow (see diagram).
  • Page 11 INSTALLATION INSTRUCTIONS Four tapping system Two tapping system...
  • Page 12: Certificate Of Compliance

    INSTALLATION INSTRUCTIONS Certificate of compliance After completion of the appliance installation please ensure the form below (specimen) is completed by the installation engineer to comply with the requirements of HETAS and building regulations. The installation engineer must supply these details, including registration number for any insurance details that may need changing after installation of the appliance.
  • Page 13: Fire Bricks

    INSTALLATION INSTRUCTIONS Fire bricks...
  • Page 14 INSTALLATION INSTRUCTIONS...
  • Page 15: Baffle

    INSTALLATION INSTRUCTIONS Baffle Water circuit connections • Water connection thread size 1” BSP. • Connect the water inlet to the bottom. • Connect the water outlet to the top.
  • Page 16: Rear Flue Connection

    INSTALLATION INSTRUCTIONS Rear flue connection Direct air (optional) For optimal efficiency it is recommend that the optional direct air attachment is fitted. The direct air connection has an outer diameter of 125mm. Measurement 150 mm 90 mm...
  • Page 17: Defra Setting

    INSTALLATION INSTRUCTIONS DEFRA setting This appliance is installed with a DEFRA compliant smoke control setting. If the appliance is installed in a smoke controlled area the setting must be in the on position. If the appliance is installed outside a smoke control area the setting can be in the off position to give more control over the lower burn rates.
  • Page 18: Flue Connection

    INSTALLATION INSTRUCTIONS Flue connection • Before applying the stove cement ensure gloves are worn. • Apply the stove cement inside the flue collar. • Ensure it is evenly distributed. Max ∅ ∅ 152mm 152mm • Press the flue firmly into the flue collar.
  • Page 19 INSTALLATION INSTRUCTIONS Overview of a typical top flue installation Overview of a typical rear flue installation...
  • Page 20: Commissioning

    INSTALLATION INSTRUCTIONS 5.10 Commissioning • Once the stove has been installed and the flue connected replace all the internal components. • Check the seal between the door, flue and joints are sound. • Check the air controls are working correctly and smooth to operate. •...
  • Page 21: Removing The Door

    INSTALLATION INSTRUCTIONS Removing the door Loosen the grub screw as shown above in image 3. This will allow the hinge pin to drop down. Do this for both the top and lower hinge. Ensure the door is supported at all times.
  • Page 22: Fitting New Glass

    INSTALLATION INSTRUCTIONS Fitting new glass Glass Fibre Tape • Ensure the door is on a soft flat surface before removing the glass. • Unscrew the four glass clamps. • Remove the old glass and glass fibre Glass tape. • Fit new glass and glass fibre tap. Glass •...
  • Page 23: Service Records

    INSTALLATION INSTRUCTIONS Service records SERVICE SERVICE Date of service........Date of service........Date of next service......Date of next service......HETAS Number........HETAS Number........Signature..........Signature..........SERVICE SERVICE Date of service........Date of service........Date of next service......Date of next service......HETAS Number........
  • Page 25 Hunter Stoves, 8 Emperor Way, Exeter, Devon, EX1 3QS www.hunterstoves.co.uk Hunter Stoves reserve right change JIN-ASB-A dimensions and procedures described in these 2022-05-03 instructions anytime without special notice.
