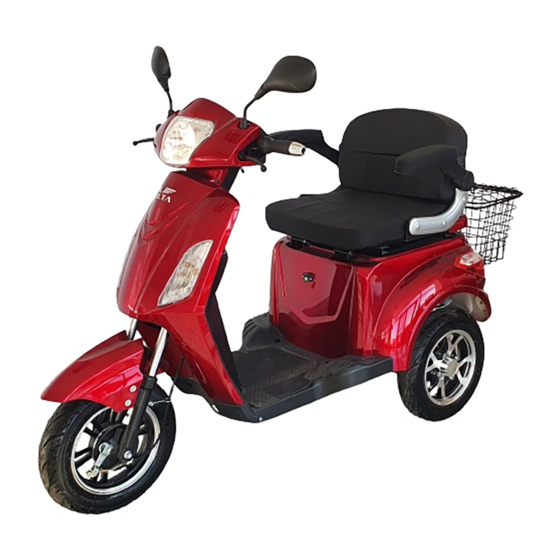

Summary of Contents for VTA VM4
- Page 1 www.VTAmobility.com.tr U S E R M A N U A L Read this user's manual carefully before using your vehicle.
- Page 2 PREFACE This product is designed for an environmentally friendly transportation. Throughout the guide you will see the advantages and characteristics of the vehicle. Its general specifications are as follows; • High efficiency brushless DC motor • Electronic control unit (Controller) which protects from high and low voltage. •...
- Page 3 CONTENTS Safe Contents Preface Driving General Actuation Maintenance And Usage And Control View Storage Technical Manunfacturer Conditions Specifications Information 19 20 Guarantee...
- Page 4 SAFE DRIVING Pre-Drive Instructions • Check the condition of all the movable parts. • Check all rotating parts and add oil if necessary • Check whether the tyres are in good condition. • Check the tyre pressures. • Make sure that all nuts and bolts are tightened adequately. •...
- Page 5 SAFE DRIVING Efficient Driving Instructions If the following efficient driving instructions are followed, your vehicle’s driving range and efficiency will increase; • Take your vehicle to service regularly. • Comply with the maximum load limits in the manual. • Be careful about using your vehicle in suitable weather and road conditions. •...
- Page 6 GENERAL VIEW 1- Head Lamp 8-Front Direction Indicator 2- Mirror 9- Front Wheel 3- Brake Lever 10- Electric Motor 4- Speedometer 11- Rear Wheels 5- Ignıtion 12- Compensating Wheel 6- Seat 13- Charging Connector 7- Stop Lamp WARNING • All parts listed in the user manual are given as reference. The manufacturer can make changes without notice.
- Page 7 GENERAL VIEW 1- Main / Dipped Beam Button 5- Direction Indicator Button 2- Speedometer Panel 6- Direct / Reverse Driving 3- Throttle lever 7- Lighting Switch 4- Horn 8- Electronic Gear SPEEDOMETER INDICATORS Brake Fault Main Beam Charging WARNING • All parts listed in the user manual are given as reference.
- Page 8 ACTUATION AND USAGE Actuating Insert the ignition key into its slot and turn it to the on position. Acceleration and Deceleration • Turn the throttle lever downwards. In this case, your vehicle will move. The speed can be increased or decreased with the throttle. Turn the throttle in direction (a) to increase your speed, or (b) to decrease speed.
- Page 9 ACTUATION AND USAGE Battery Information The vehicle is equipped with five rechargeable VRLA gel batteries that can provide 60V 22Ah energy. Since, the use of the battery affects the life of the vehicle and environmental conditions, it is necessary to pay maximum attention to the following points.
- Page 10 ACTUATION AND USAGE Charger • Charge your electric vehicle with the charger delivered to you with the vehicle. Don’t forget to charge it for 6-8 hours before its first drive. To charge the vehicle, please follow the instructions below; • Make sure your electric vehicle is turned off.
- Page 11 ACTUATION AND USAGE Differential The differential allows the wheels to turn at different speeds depending on the bend you have taken. When you turn the corner, the inner wheel of your vehicle rotate slower, while the outer wheel tend to turn faster. In corners, the distance traveled by the outer wheel is greater than the distance traveled by the inner wheel.
- Page 12 MAINTENANCE AND CONTROL Brake Maintenance Brake pads wear out due to the working principle. It should be replaced when it reaches certain safety levels. Inspection of this safety level and change of pads should be done by authorized services. Unreplaced brake pads cause the brake system to work poorly, make noise, and in some cases, break other parts.
- Page 13 MAINTENANCE AND CONTROL Rear Wheel and Suspension Assembly • Make sure all the nuts holding the front and rear suspension are tight. If the suspension connections are not tight, it will cause some connection points to be subjected to more force than usual. As a result of this damage, it may cause an accident.
- Page 14 MAINTENANCE AND CONTROL Controller / Motor Maintenance • Your vehicle’s electronic control unit (controller) is located under the seat. For this reason, make sure that this area does not get water, the cables entering this area are not strained and the protective plastic does not get impacted.
- Page 15 MAINTENANCE AND CONTROL MOTOR CODE AND VEHICLE IDENTIFICATION NUMBER Motor code and vehicle identification number are for the registration of your vehicle and help our authorized services in order to provide better service to you in case of need for maintenance / repair. Vehicle Identification Motor Code Number...
- Page 16 MAINTENANCE AND CONTROL Malfunction and Maintenance In case the vehicle doesn’t start, contact the authorized service. Do not interfere with the vehicles individually during the warranty period. Common problems can be: Malfunction Action to be taken -Check the battery voltage (It should be over 60V) -One of the sockets may have come loose, make sure that the sockets are The vehicle fully seated.
- Page 17 MAINTENANCE AND CONTROL Periodic Maintenance • Periodic maintenance should be done at authorized technical service stations. • Vehicles that are not regularly maintained (once every 4 months) will be evaluated out of warranty.
- Page 18 MAINTENANCE AND CONTROL ELECTRIC VEHICLES MAINTENANCE TABLE ACTION TO BE TAKEN PART/ SYSTEM NAME Check that the brake cables are not pinched and work properly, adjust if necessary. Replace the brake pads if necessary. Check and adjust the brake lever clearances. FRONT AND REAR BRAKE Check the operation of the brake sensors.
- Page 19 STORAGE CONDITIONS Storage • If you are not going to use your electric vehicle for a long time during periods such as winter , you should take some precautions to protect your vehicle from malfunctions and corrosions. It would be better to make some repairs before storage.
- Page 20 TECHNICAL SPECIFICATIONS Parameters Length 1750 mm Width 710 mm Height 1220 mm Wheelbase 1110 mm Rear Track Width 580 mm 108 kg Weight Max Carrying Capacity 95 kg Battery Mass 35 kg 1000 W Electric Motor Max Power 4,4 Nm Electric Motor Max Torque Motor Type BLDC...
- Page 21 MANUFACTURER INFORMATION MANUFACTURING COMPANY DUZCE FACTORY • Selamlar Köyü Selamlar Mevkii Gümüşova OSB 1.Sokak Blok No:10 Gümüşova / DÜZCE / TÜRKİYE • Tel :0380 731 25 25 GABZE FREEZONE • Tübitak MAM Teknoloji Serbest Bölgesi Mh. 5001 Sk. No:3 A/B Gebze / KOCAELİ...
- Page 22 GUARANTEE MANUFACTURER Trade Name Selamlar Koyu, Selamlar Address Tubitak MAM Teknoloji No. 36-37 Yougu Industrial Mevkii, Gumusova OSB 1. Park, no:58 Jinghong Germanyr GMBH Serbest Bolgesi Baris SB. Sk. No:10 Road, Xibei town, Xishan Handwerkerstraße Mh. 5001 Sk. No:3 A/B Road, Xibei Town, Xishan 15366 Hoppegarten, Gumusova/DUZCE/...
- Page 23 • Failures caused by adding parts or parts not produced or sold by VTA to the vehicle, •...
- Page 24 EnGInEErED By ELECtrIc Wuxi Technology Co., LTD No. 36-37, GERMANY GMBH Handwerkerstraße Yougu Industrial Park, No:58 Jinghong 3, 15366 Hoppegarten, Hoppegarten / Almanya Road, Xibei Town, Xishan District, Wuxi City JIANGSU / CHINA...
