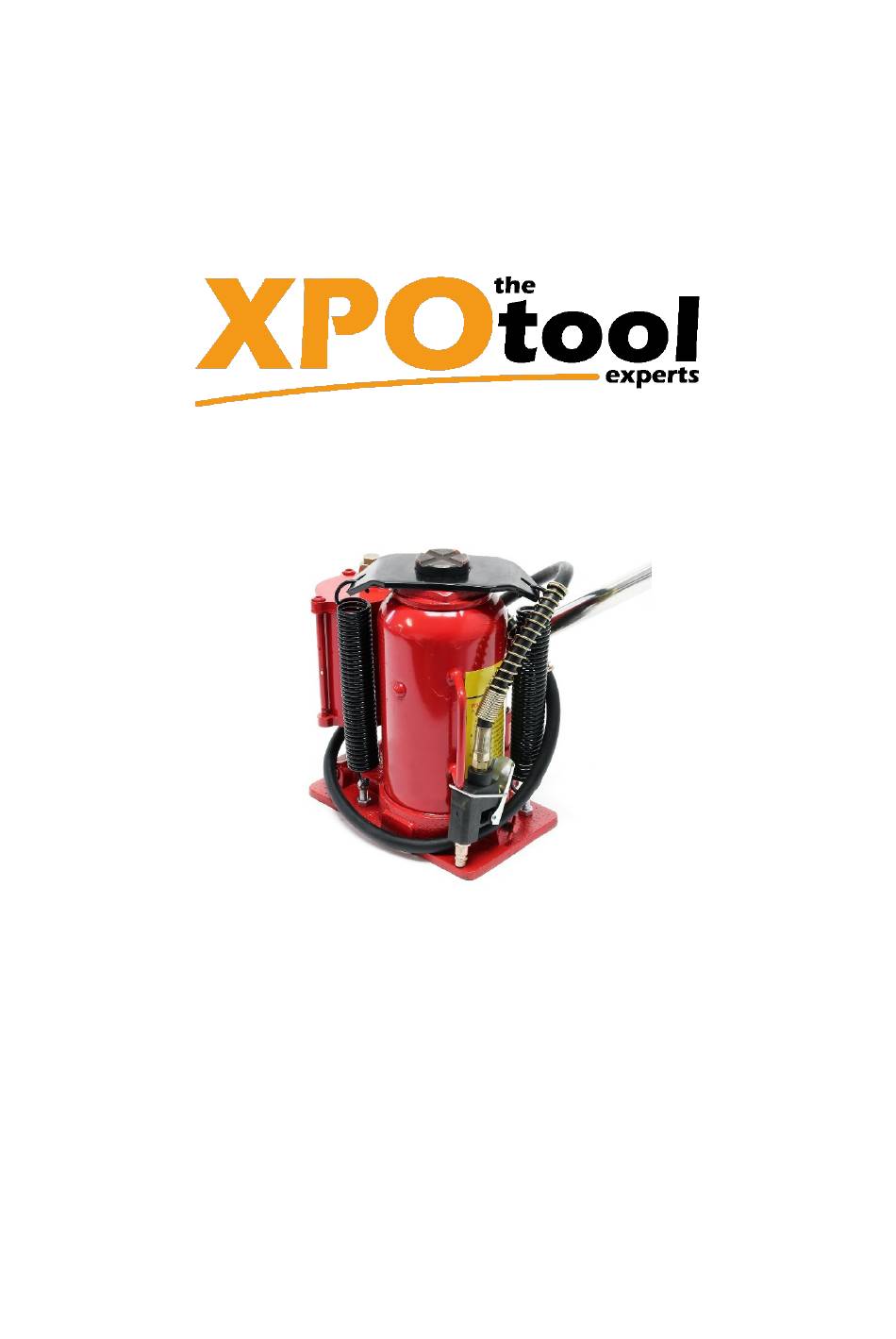

Operation Manual
Hydraulic Car Jack
61974, 61975
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 61974
Summary of Contents for XPOtool 61974
- Page 1 Operation Manual Hydraulic Car Jack 61974, 61975 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61974, 61975 Page 2 The Tool Experts 05 2022-1...
- Page 3 Hydraulic jacks are designed for lifting, but not sustaining loads. Respect the rated capacity of the indi- vidual jack (item 61974: 12 t; item 61975: 20 t). They can be used vertically or angled up to 5° from the vertical position. After lifting, the loads must immediately be supported by appropriate means. Each model is suitable for use in an appropriately rated and designed vertical or bench press structure.
- Page 4 With the ram saddle fully lowered and pump piston fully depressed remove the oil filler plug. 2. Lay the jack on its side and drain the fluid into a suitable container. Note: Dispose hydraulic fluid environmentally friendly in accordance with local regulations. https://www.XPOtool.com Item 61974, 61975 Page 4 The Tool Experts 05 2022-1...
-
Page 5: Troubleshooting
With ram fully retracted, remove oil filler mance plug to let pressurized air escape; reinstall oil filler plug. Will not lift to full Fluid level low Ensure proper fluid level. extension https://www.XPOtool.com Item 61974, 61975 Page 5 The Tool Experts 05 2022-1... - Page 6 Exploded views https://www.XPOtool.com Item 61974, 61975 Page 6 The Tool Experts 05 2022-1...
- Page 7 Item 61974, 61975 Page 7 The Tool Experts 05 2022-1...
- Page 8 45 O-ring Dust proof ring 46 O-ring returner Pump reservoir 47 Ram header Copper washer 48 Ram Steel ball 6 49 Spring Hydraulic cylinder 50 Spring plate Release valve screw https://www.XPOtool.com Item 61974, 61975 Page 8 The Tool Experts 05 2022-1...
- Page 9 Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61974, 61975 Page 9 The Tool Experts 05 2022-1...
