SimplyShade Concrete Mount Kit Instruction Manual

Hide thumbs

page of 8

/ 8
Bookmarks

Quick Links

Download this manual

Mount Kits

Concrete

In-Ground

Wood

I n s t r u c t i o n M a n u a l

Need help?

Do you have a question about the Concrete Mount Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for SimplyShade Concrete Mount Kit

Page 1 Mount Kits Concrete In-Ground Wood I n s t r u c t i o n M a n u a l...

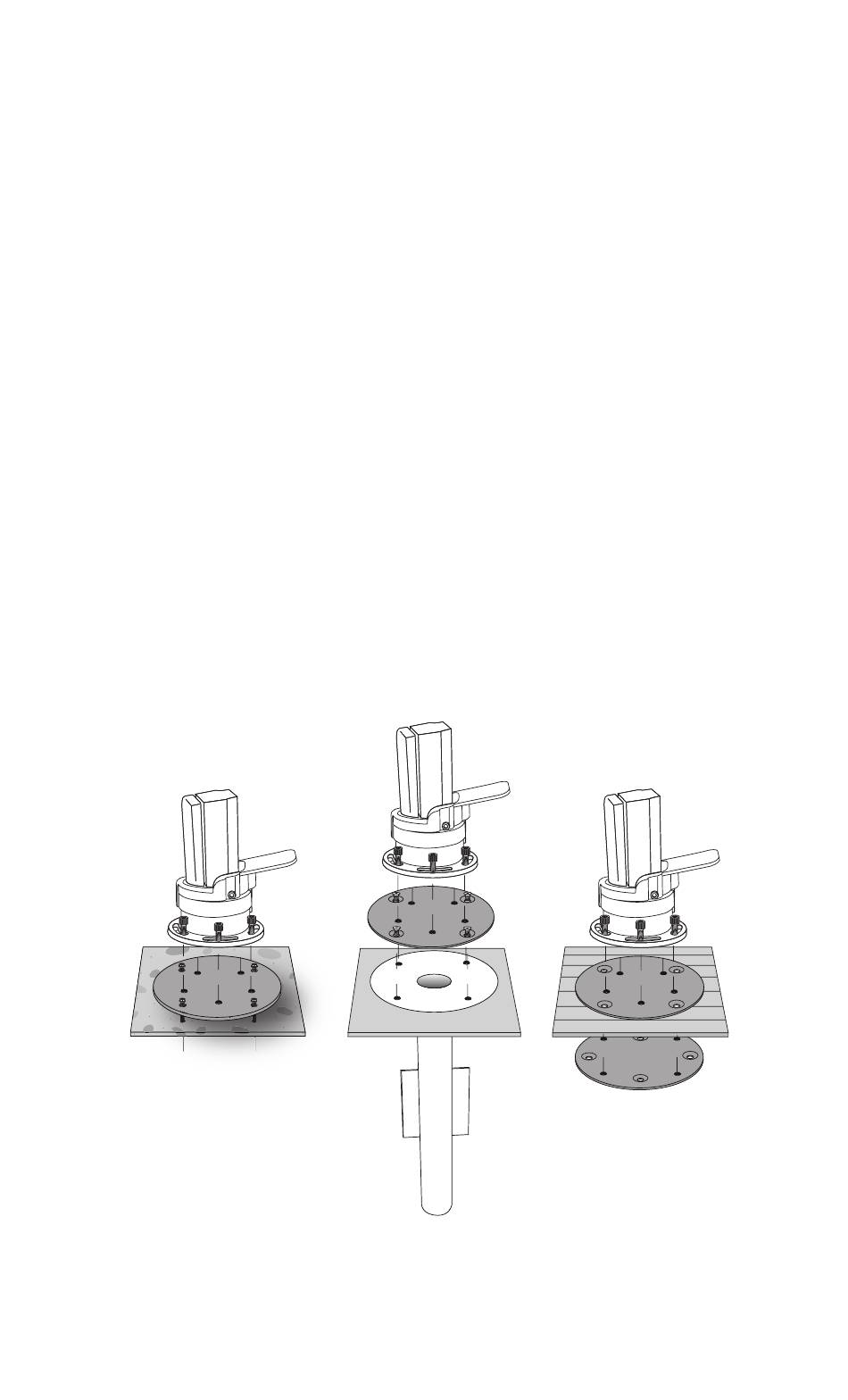

Page 2 CAUTION: To reduce personal injury and damage to your mount kit or umbrella, read and follow this instruction manual. Save information for future reference. MOUNT KIT CHECK LIST Concrete Mount Kit check list: Adapter Plate (8.5” diameter) Screw Anchors 3/8” x 3” (4) In-Ground Fitting Kit check list: Adapter Plate (8.5”...
Page 3 CONCRETE MOUNT KIT Concrete Mount Kit includes: Adapter Plate (8.5” diameter) Screw Anchors 3/8” x 3” (4) Hub Bolts Rotating Hub & Washers Screw Anchors Adapter Plate At least 6” thick S T E P 1 Bolt Adapter Plate Bolt the adapter plate (countersunk holes faced down) to an existing concrete slab (or through no thicker than 1”...
Page 4 IN-GROUND MOUNT KIT In-Ground Fitting Kit includes: Adapter Plate (8.5” diameter) Stem Bolts (4) In-Ground Fitting Allen Wrench Hub Bolts Rotating Hub & Washers Stem Bolts Adapter Plate Ground S T E P 1 Preparation The in-ground fitting should or can be Hole Diameter built into newly poured concrete.
Page 5 WOODEN DECK MOUNT KIT Wooden Deck Mount Kit includes: Adapter Plate Base Plate Round Countersunk Bolts (4) Allen Wrench Hub Bolts Rotating Hub & Washers Adapter Adapter Plate Bolts Base Plate S T E P 1 Adapter Plate Locate adapter plate and place in desired location on the deck. The adapter plate should overlap two deck planks evenly.
Page 6 DISCLAIMER: THE MOUNTING KIT SHOULD ONLY BE PROFESSIONALLY INSTALLED BY A LICENSED CONTRACTOR DULY QUALIFIED TO PERFORM THE INSTALLATION. SIMPLY SHADE ASSUMES NO LIABILITY AND EXPRESSLY DISCLAIMS ANY RESPONSIBILITY FOR INJURIES OR DAMAGES ARISING FROM OR RELATED TO THE FAILURE OF BUYER TO HAVE THE MOUNTING KIT INSTALLED BY A LICENSED PROFESSIONAL CONTRACTOR.
Page 7: Warranty
WARRANTY: upon issuance of an RA # and inspection by our QC department will credit or replacement of umbrella be issued. It is The manufacturer warrants that this the customer’s responsibility to pay the umbrella, when subject to normal and freight on return products or proper use, will be free from replacement parts.

This manual is also suitable for:

In-ground mount kitWood mount kit
