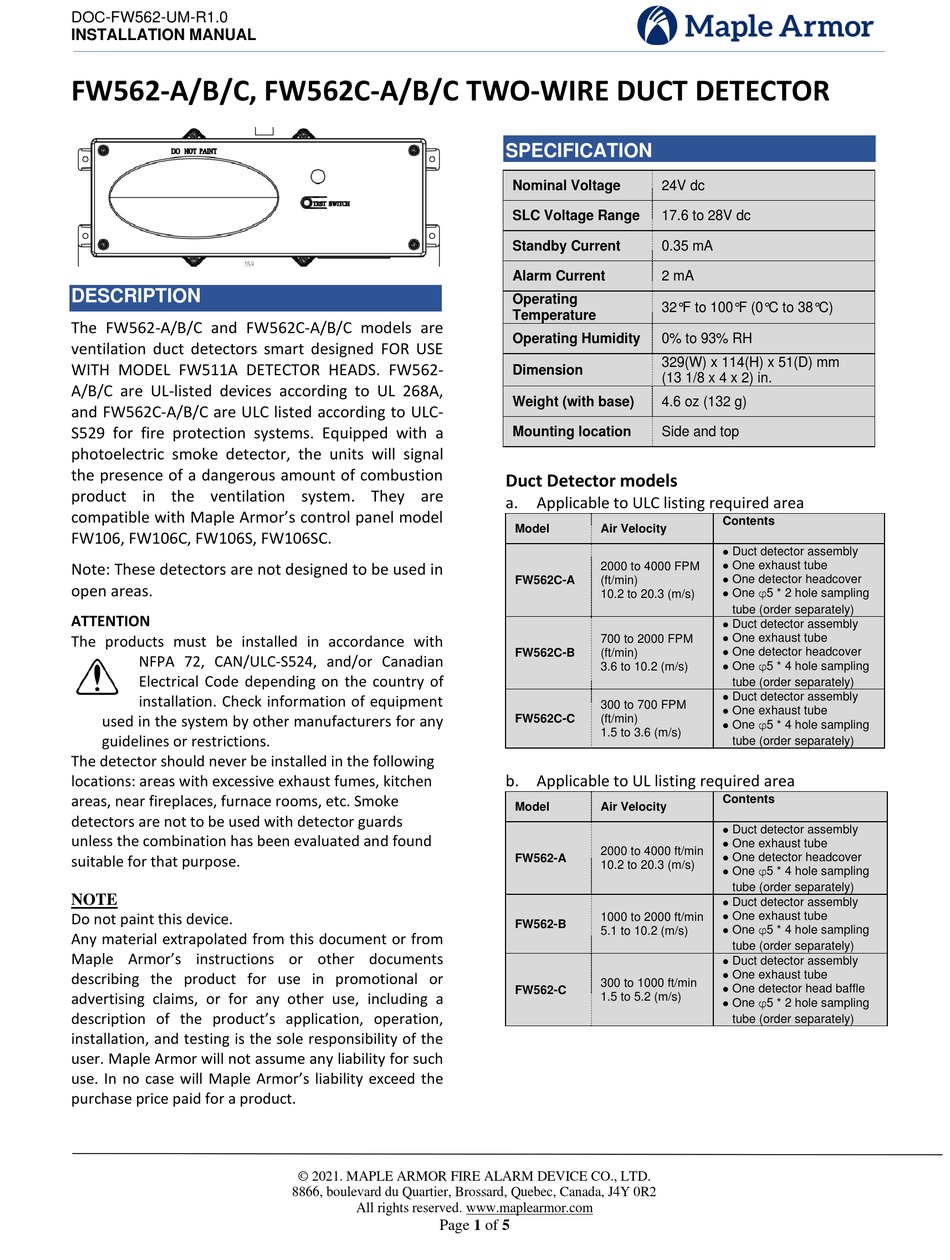

INSTALLATION MANUAL
FW562-A/B/C, FW562C-A/B/C TWO-WIRE DUCT DETECTOR

DESCRIPTION

The FW562-A/B/C and FW562C-A/B/C models are
ventilation duct detectors smart designed FOR USE
WITH MODEL FW511A DETECTOR HEADS. FW562-
A/B/C are UL-listed devices according to UL 268A,
and FW562C-A/B/C are ULC listed according to ULC-
S529 for fire protection systems. Equipped with a
photoelectric smoke detector, the units will signal
the presence of a dangerous amount of combustion
product in the ventilation system. They are
compatible with Maple Armor's control panel model
FW106, FW106C, FW106S, FW106SC.
Note: These detectors are not designed to be used in
open areas.
ATTENTION
The products must be installed in accordance with
NFPA 72, CAN/ULC-S524, and/or Canadian
Electrical Code depending on the country of
installation. Check information of equipment
used in the system by other manufacturers for any
guidelines or restrictions.
The detector should never be installed in the following
locations: areas with excessive exhaust fumes, kitchen
areas, near fireplaces, furnace rooms, etc. Smoke
detectors are not to be used with detector guards
unless the combination has been evaluated and found
suitable for that purpose.
NOTE
Do not paint this device.
Any material extrapolated from this document or from
Maple Armor's instructions or other documents
describing the product for use in promotional or
advertising claims, or for any other use, including a
description of the product's application, operation,
installation, and testing is the sole responsibility of the
user. Maple Armor will not assume any liability for such
use. In no case will Maple Armor's liability exceed the
purchase price paid for a product.
© 2021. MAPLE ARMOR FIRE ALARM DEVICE CO., LTD.
8866, boulevard du Quartier, Brossard, Quebec, Canada, J4Y 0R2
All rights reserved. www.maplearmor.com
Page 1 of 5

SPECIFICATION

Nominal Voltage 24V dc
SLC Voltage Range 17.6 to 28V dc
Standby Current 0.35 mA
Alarm Current 2 mA
Operating
32°F to 100°F (0°C to 38°C)
Temperature
Operating Humidity 0% to 93% RH
329(W) x 114(H) x 51(D) mm
Dimension
(13 1/8 x 4 x 2) in.
Weight (with base) 4.6 oz (132 g)
Mounting location Side and top
SPECIFICATIONS
Duct Detector models
a. Applicable to ULC listing required area
Model Air Velocity
2000 to 4000 FPM
FW562C-A (ft/min)
10.2 to 20.3 (m/s)
700 to 2000 FPM
FW562C-B (ft/min)
3.6 to 10.2 (m/s)
300 to 700 FPM
FW562C-C (ft/min)
1.5 to 3.6 (m/s)
b. Applicable to UL listing required area
Model Air Velocity
2000 to 4000 ft/min
FW562-A
10.2 to 20.3 (m/s)
1000 to 2000 ft/min
FW562-B
5.1 to 10.2 (m/s)
300 to 1000 ft/min
FW562-C
1.5 to 5.2 (m/s)
Contents
⚫ Duct detector assembly
⚫ One exhaust tube
One detector headcover
⚫
One φ5 * 2 hole sampling
⚫
tube (order separately)
⚫ Duct detector assembly
One exhaust tube
⚫
One detector headcover
⚫
One φ5 * 4 hole sampling
⚫
tube (order separately)
Duct detector assembly
⚫
One exhaust tube
⚫
One φ5 * 4 hole sampling
⚫
tube (order separately)
Contents
Duct detector assembly
⚫
One exhaust tube
⚫
One detector headcover
⚫
One φ5 * 4 hole sampling
⚫
tube (order separately)
Duct detector assembly
⚫
⚫ One exhaust tube
One φ5 * 4 hole sampling
⚫
tube (order separately)
Duct detector assembly
⚫
⚫ One exhaust tube
⚫ One detector head baffle
One φ5 * 2 hole sampling
⚫
tube (order separately)
