Summary of Contents for SwitchDin Residential Droplet

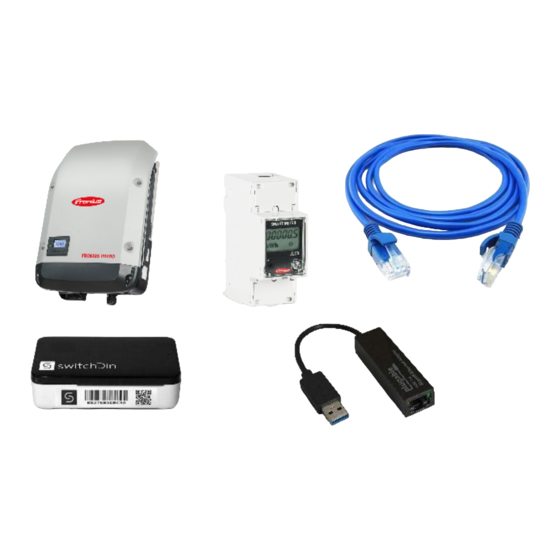

- Page 1 Quick Reference Guide Droplet + Fronius Installation For SA Power Networks Flexible Exports Prepared by: SwitchDin Pty Ltd 91 Parry Street Newcastle West 2302...
- Page 2 Droplet ID. To update after install (Note: even the 'beta' version of software should be able to support Flexible Exports and enable the installer to enrol the unit in the program, then contact SwitchDin to update): 1. Contact SwitchDin support at support@switchdin.com...
- Page 3 3. Wire up Smart Meter on grid or load configuration. Refer OTR Wiring Information and Diagram 4. Enable Modbus TCP and port 502 as follows: 1. Install Fronius Datamanager 2. Open an internet browser 3. Enter one of the following into the address field of the internet browser •...
- Page 4 5. Set the controlling priorities as follows: 1. Select “DNO Editor” in the side menu 2. In the IO Controls table toggle the box in the cross section of I4 column and the 4 row so that it shows as white instead of blue 3.
- Page 5 7. Commissioning the Droplet 1. In the Installer app, select installer from the side menu, the scanner will start 2. Scan the QR code on the side of the Droplet, follow the prompts and select to connect via ethernet or Wi-Fi 3.
- Page 6 Devices attached No devices Devices detected N/A Smart Meter Installation Guide 3. SwitchDin Installation video: SwitchDin Fronius Install & Commissioning Warranty claims & support: support@switchdin.com General enquiries: info@switchdin.com Support : +61 (0) 2 4786 0426 Document Number: QRG-Fronius Quick Reference Guide...
