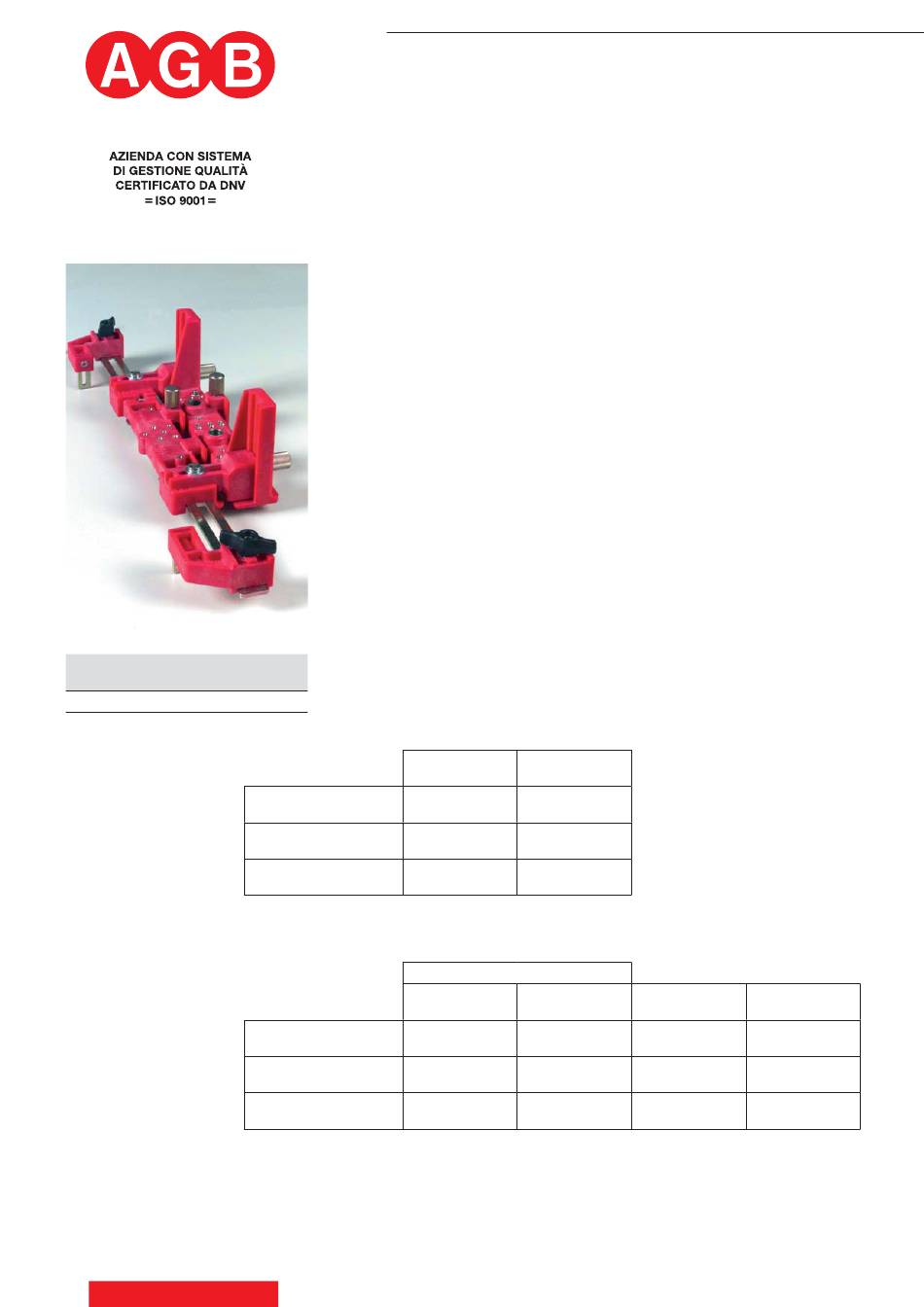

AGB ABACO Assembly Instructions

Jig for simultaneous sash-frame drilling

Advertisement

Quick Links

Alban Giacomo SpA
Articolo
Conf. n. pz.
Article
Packet n of pcs.
H00930.02.01
SOLUZIONE A FILO:
aria minima 2,3 mm
FLUSH SOLUTION:
minimum gap 2,3 mm
SOLUZIONE A BATTENTE:
spessore min. battuta 11 mm
spessore max. battuta 60 mm
REBATE SOLUTION:
min. reabte thickness 11 mm
min. reabte thickness 60 mm
ISTRUZIONI DI MONTAGGIO/
Dima ABACO per foratura
simultanea anta-telaio
ABACO jig for simultaneous
sash-frame drilling
CAMPO D'IMPIEGO DELLA DIMA/
La dima di foratura Abaco può essere utilizzata nei modi seguenti:
A) Con riferimento della battuta dell'anta.
B) Con riferimento della battuta esterna del telaio.
Utilizzando la dima in appoggio sul telaio, verificare che l'imposta abbia le
seguenti caratteristiche:
The Abaco drilling jig can be used in the following ways:
A) With reference to the sash rebate.
B) With reference to the external frame rebate.
When the jig is applied to the frame, make sur that the sash has the
following characteristics:
1
Largh. min. telaio
Min. frame width
Aria 4 - regolazione 26/16
Gap 4 - adjustment 26/16
Aria 4 - regolazione 26/19
Gap 4 - adjustment 26/19
Aria 4 - regolazione 35/19
Gap 4 - adjustment 35/19
() misura raggiungibile tagliando le squadrette P (Fig. 8)
() measurement obtained by cutting the P brackets (Fig. 8)
Spessore batt. <19
Reb. thickness <19
Regolazione 26/16
Adjustment 26/16
Regolazione 26/19
Adjustment 26/19
Regolazione 35/19
Adjustment 35/19
() misura raggiungibile tagliando le squadrette P (Fig. 8)
() measurement obtained by cutting the P brackets (Fig. 8)
NB. Su ante con lamelle inclinate sporgenti.
- larghezza minima del montante di 55mm con
regolazione foro vite a 26 mm.
- larghezza minima del montante di 64 mm con
regolazione foro vite a 35 mm.
Largh. max. telaio
Max. frame width
36 (34)
67
37
70
37
70
Largh. min.
telaio/Min. frame width
Spessore batt. >19
Reb. thickness >19
52 + S
50 + S
52 + S
50 + S
52 + S
50 + S
ASSEMBLY INSTRUCTIONS
JIG APPLICATION FIELD
Largh. min. telaio
Largh. max. telaio
Min. frame width
Max. frame width
38 + S
71 + S
41 + S
74 + S
41 + S
74 + S
S = sormonto
S = overlap
NB. On sashes with projecting louvers:
- 55 mm minimum stile width screw hole
adjustment at 26 mm.
- 64 mm minimum stile width screw hole
adjustment at 35 mm.
