Summary of Contents for VTA VB1

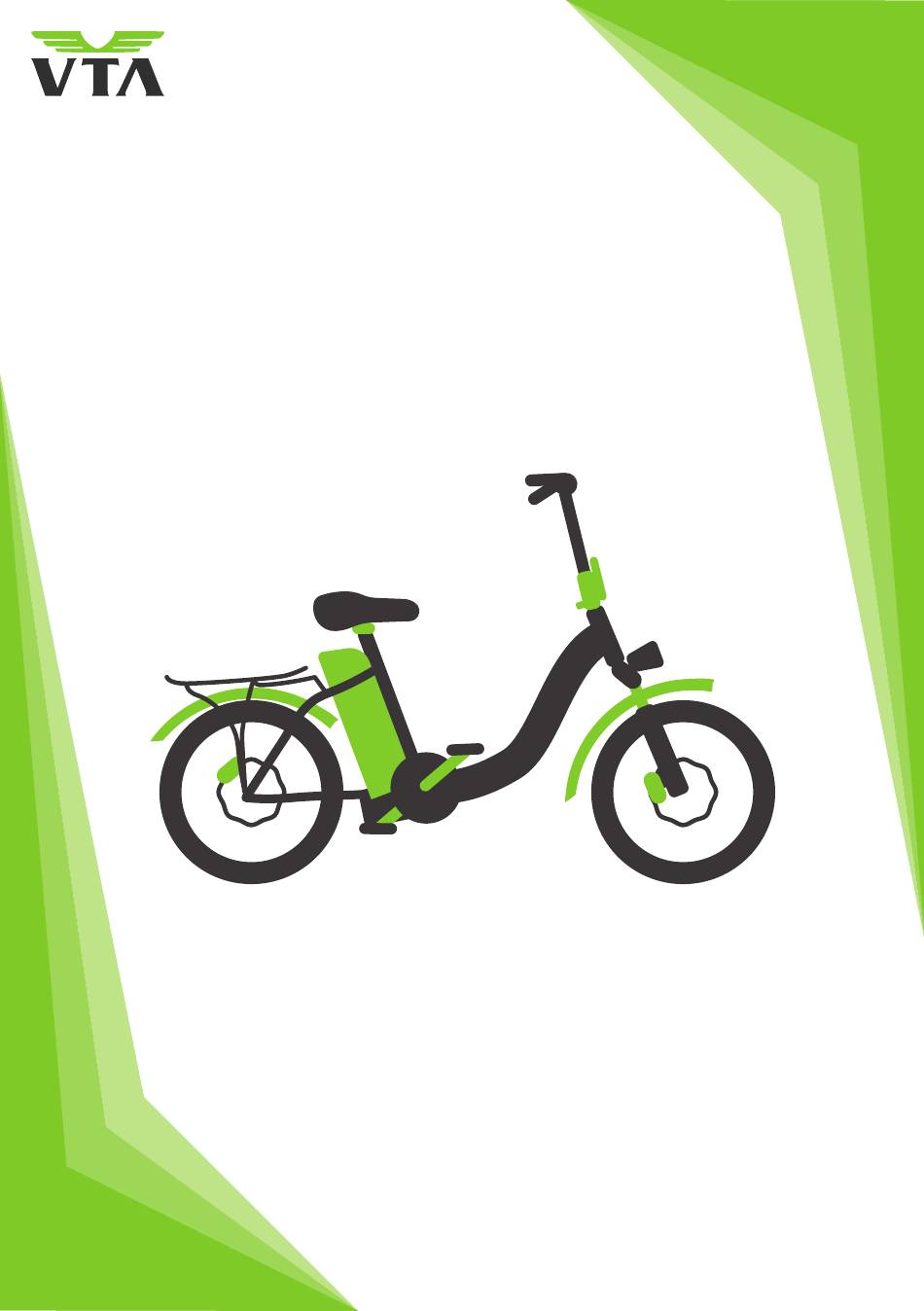

- Page 1 U S E R M A N U A L Read this user’s manual carefully before using your vehicle. www.VTAmobility.com...
-
Page 2: Preface
PREFACE This product is designed as an environmentally friendly means of transportation. Throughout the guide you will see the advantages and characteristics of the vehicle. Its general specifications are as follows; • High efficiency brushless DC motor • Electronic control unit (Controller) which protects from high and low voltage. •... -
Page 3: Table Of Contents
CONTENTS PREFACE CONTENTS SAFE DRIVING GENERAL VIEW ACTUATION AND USAGE MAINTENANCE AND CONTROL STORAGE CONDITIONS TECHNICIAL SPECIFICATIONS MANUFACTURER INFORMATION GUARANTEE WARRANTY CONDITIONS NOTES... -
Page 4: Safe Driving
SAFE DRIVING Pre-Ride Instructions • Check the condition of all the movable parts. • Check all rotating parts and add oil if it is missing. • Check whether the tires are intact. • Check the tire pressures. • Make sure that all nuts and bolts are tightened adequately. •... -
Page 5: General View
GENERAL VIEW Braking Disc 9. Battery 2. Headlamp 10. Rear Carrier Platform 3. Handlebar Folding Apparatus 11. Stop Lamp 4. Handlebar Adjusting Clamp 12. Electric Motor 5. Handlebar 13. Rear Derailleur 6. Frame Folding Apparatus 14. Crankset Saddle Adjusting Clamp 8. - Page 6 GENERAL VIEW Front Brake Lever 4. Rear Brake Lever 2. Speedometer 5. Lighting Switch 3. Shifters Warning All parts listed in the user manual are given as reference. The manufacturer can make changes without notice.
-
Page 7: Actuation And Usage
ACTUATION AND USAGE Speedometer The speedometer displays the bike’s control settings as well as function, speed, battery, error and and also it is used to display values such as range.Press the up/down button simultaneously for three seconds to open the display settings. Use the power button to change the code interface in the display settings. - Page 8 ACTUATION AND USAGE Display Settings CODE DEFINITION FEATURE 1 : Low P01: Backlight Brightness 2 : Medium 3 : High 0: Kilometers -KM P02: Distance Unit 1 : Mile - Mph P03: Voltage Class 24v - 36v - 48v 0 : No Sleep Mode P04: Sleep Mode Duration Other: 1 –...
- Page 9 ACTUATION AND USAGE Actuation Insert the key into the key slot on the battery and turn it to the open position. Then press and hold the power on/off icon on the display for 3 seconds. Speedometer powered on, the electric bike will be ready for riding. Warning Always keep the bike in the off position when not in use.
- Page 10 ACTUATION AND USAGE Gear Shift The electric bike is equipped with a gear set that enables gear change. By making appropriate gear selections in the rear gear with the gear lever positioned on the right brake set can be achieved optimal during riding. To change gear, push the gear lever to the desired gear position.
- Page 11 ACTUATION AND USAGE Battery The vehicle is equipped one rechargeable lithium-ion battery that can provide 36V 10Ah energy. Since the use of the battery affects the life of the vehicle and environmental conditions, it is necessary to pay maximum attention to the following points. •...
- Page 12 OPERATION AND USE Charge Charge your electric vehicle with the charger delivered to you with the vehicle. Don’t forget to charge it for 4.5-5 hours before its first drive. To charge the vehicle, please follow the instructions below; • Make sure your electric vehicle is turned off. •...
-
Page 13: Maintenance And Control
MAINTENANCE AND CONTROL Brake Maintenance Brake pads wear out due to the working principle. It should be replaced when it reaches certain safety levels. Inspection of this safety level and change of pads should be done by authorized services. Unreplaced brake pads cause the brake system to work poorly, make noise, and in some cases, break other parts. - Page 14 MAINTENANCE AND CONTROL Controller / Motor Maintenance Your vehicle’s electronic control unit (controller) is located under the battery. For this reason, make sure that this area does not get water, the cables entering this area are not strained and the protective plastic does not get impacted. •...
- Page 15 MAINTENANCE AND CONTROL Cleaning • It is recommended to clean your electric vehicle with a wet cloth. • Never lubricate the brake system and tyres. • Use oil to clean the metal parts of your vehicle.Always use standard cleaning materials when cleaning painted plastic parts. •...
- Page 16 MAINTENANCE AND CONTROL Periodic Maintenance • Periodic maintenance should be done at authorized technical service stations. • Vehicles that are not regularly maintained (once every 4 months) will be evaluated out of warranty.
- Page 17 MAINTENANCE AND CONTROL ELECTRIC VEHICLES MAINTENANCE TABLE ACTION TO BE TAKEN PART/ SYSTEM NAME Check that the brake cables are not pinched and work properly, adjust if necessary. Replace the brake pads if necessary. Check and adjust the brake lever clearances. FRONT AND REAR BRAKE Check the operation of the brake sensors.
-
Page 18: Storage Conditions
STORAGE AND HANDLING Storage • If you are not going to use your electric vehicle for a long time during periods such as winter , you should take some precautions to protect your vehicle from malfunctions and corrosions. It would be better to make some repairs before storage. •... -
Page 19: Technicial Specifications
TECHNICIAL SPECIFICATIONS Parameters Length 1670 mm Width 600 mm Height 1080 mm Wheelbase 1080 mm Weight 22,5 kg Maximum Carrying Capacity 110 kg Motor Power 250 W Motor Type BLDC Battery Type Lithium-Ion Battery Capacity 36 V 8.8 Ah Charger Capacity 36 V 2 Ah Charging Time 4,5-5 sa... -
Page 20: Manufacturer Information
MANUFACTURER INFORMATION The service life of your Volta brand vehicle is 10 years and the maximum repair period is 45 days. If you encounter any problems with your vehicle, you can visit our website at www.volta.com.tr and access information about authorized services and spare parts. You can access all authorized service station information from the Service Information System created by the Ministry VOLTA MOTOR SANAYI VE TICARET A.Ş. -
Page 21: Guarantee
Tel : 0850 222 28 65 info@volta.com.tr info@volta.com.tr PHONE 0850 222 28 65 NUMBER MAIL info@volta.com.tr PRODUCT TYPE ELECTRIC BIKE BRAND VOLTA, VTA MODEL CHASSİS NUMBER DELIVERY DATE MAXIMUM REPAIR 45 WORK DAY TIME GUARANTEE 2 YEARS TIME SELLER TITLE... -
Page 22: Warranty Conditions
WARRANTY CONDITIONS 1. The warranty period of the vehicle is one year and the warranty covers only the supply of spare parts. Spare parts will be sent if the warranty conditions are met stated in this user manual. In order to benefit from warranty it is necessary to submit Warranty Certificate that must be kept for the duration of the warranty. -
Page 23: Notes
NOTES... - Page 24 DÜZCE FABRİKA CUMAYERİ FABRİKA GÜMÜŞOVA/DÜZCE/TURKEY CUMAYERİ/DÜZCE/TURKEY sales@volta.com.tr sales@volta.com.tr info@volta.com.tr info@volta.com.tr ALMANYA GEBZE SERBEST BÖLGE HANDWERKERSTRASSE / GEBZE/KOCAELİ/TURKEY HOPPEGARTEN /GERMANY sales@volta.com.tr sales@volta.com.tr info@volta.com.tr info@volta.com.tr İNGİLTERE ÇİN CREEK WAY/RAINHAM/ENGLAND WUXI CITY/JIANNGSU/CHINA sales@volta.com.tr sales@volta.com.tr info@volta.com.tr info@volta.com.tr www.VTAmobility.com...
