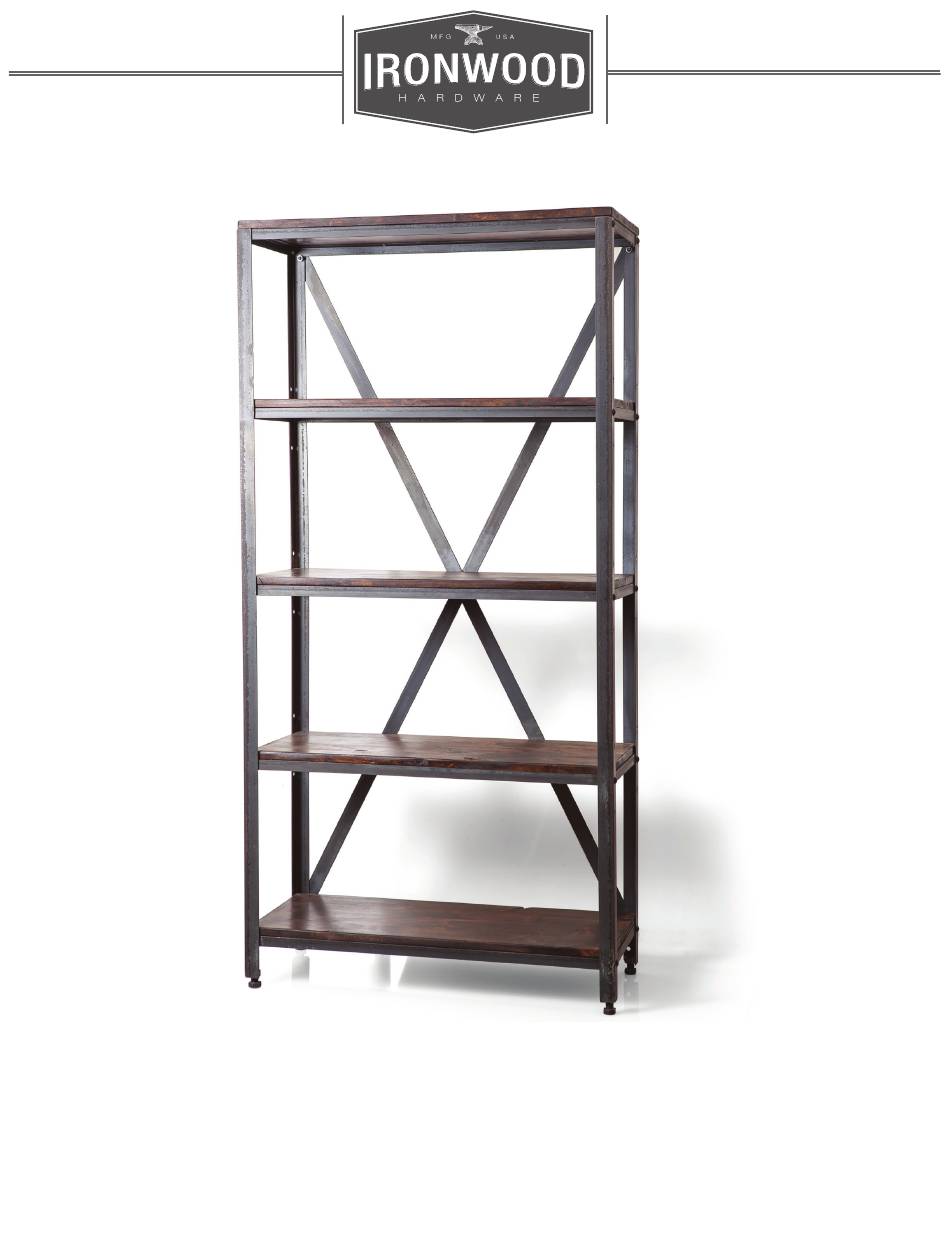

- Page 1 Crossroads shelf ASSEMBLY INSTRUCTIONS...
- Page 2 CROSSROADS SHELF Recommended Tools Drill with 7/32” Allen Driver Bit 7/32” Allen Wrench 9/16” Socket Wrench 9/16” Combination Wrench Bubble Level Use teamwork - We recommend two people for this build.
- Page 3 CROSSROADS SHELF Parts PARTS A. Top and Bottom Shelf Frame ( xed) B. Adjustable Shelf Frames C. Top Shelf (Wood) D. Adjustable and Bottom Shelf (Wood) E. Legs F. X-Brace G. Hex Socket Button Head Cap Screws H. Nylock Nuts...
- Page 4 CROSSROADS SHELF Assembly Instructions 1. Lay the wood shelf (D) on a at, stable surface. 2. Position the shelf frame (A or B) on top of the wood, ensuring the edge of the wood and the edge of the frame are even on all sides ( gure 1).
- Page 5 CROSSROADS SHELF Assembly Instructions NOTE: Make sure you have the bottom shelf. It will look like the adjustable shelves except for two additional screw holes on the back plane. 6. Insert one button head cap screw (G) in each hole fastening with one nylock nut per screw (H).
- Page 6 CROSSROADS SHELF Assembly Instructions 9. Place the x-brace pieces (F) on a at, stable surface aligning the center hole of each. Join with one button head cap screw (G) and one nylock nut (H). When tightening, ensure the x-brace can still be adjusted to t the shelf unit.
- Page 7 WE LOVE WHAT YOU ARE DOING WITH THE PLACE CONGRATULATIONS ON YOUR DECISION TO BRING HOME AN AMERICAN MADE PRODUCT OF THE HIGHEST QUALITY. WE HOPE YOUR crossroads shelf BRINGS ART AND FUNCTION INTO YOUR LIFE. Designed and crafted entirely in the U.S.A.
