Summary of Contents for Saunatec HELO HSS M 34

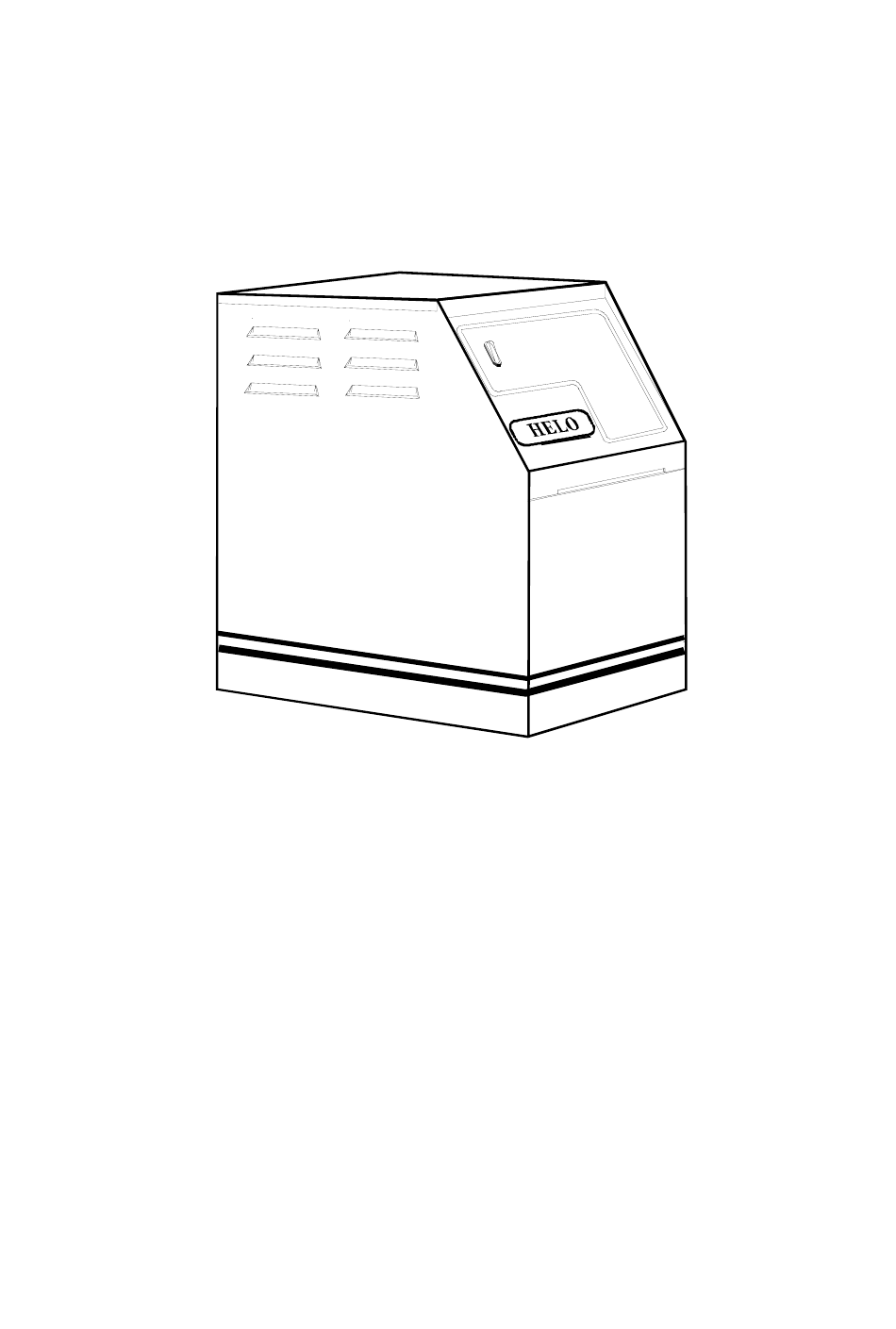

- Page 1 SAUNATEC GROUP Ltd HELO HSS M and HST M STEAM GENERATOR User and Installation Guide for models: HELO HSS M 34, 47, 60, 77. HELO HST M 90, 120, 140. 314 SHS 64 C...
-
Page 2: Technical Information
Technical information: • Voltage: 400V – 415V 3N~ 50Hz (230V – 240V 1N~ 3.4 – 7.7 kW) • Power options 3.4kW-14kW • Protection Class: IP 20 • Water tank material: AISI 304, steel • Two-stage control for heat elements. Not 230 V 3~ •... -
Page 3: Installation And Use
INSTALLATION AND USE HSS M and HST M generators are designed solely for application in steam bathing facilities. Use of the steam generator for any other purpose is not permitted. The manufacturer is not responsible for damage caused by equipment that has been incorrectly installed or used or any consequential loss that may occur. - Page 4 STEAM GENERATOR CONNECTORS Electricity connection Cable for the flush vent Main switch Control module cable Measurem ents Water connection Excess pressure H = 325 H = 410 vent and descaling W = 185 W = 200 (optional) D = 315 D = 400 Steam exit Water and Steam connection...
-
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS The steam generator will be semi-permanently connected to the electricity mains. Local regulations must be observed. Steam Power 400V-415V 3N~ 230V-240V 1N~ 230V3~ Room size generator m³ *) HSS 34 15 / 14 1.5-2.5 HSS 47 7 / 6,5 20 / 19 2.5-5 HSS 60... -
Page 6: Wiring Diagrams
WIRING DIAGRAMS HSS M 3,4 kW - 7,7 kW 3 N~ 400 V - 415 V 1 N~ 230 V - 240 V 50 - 60 Hz 3 N~ Elements 1 N~ Contactor Tank Heater fuse Main switch Earthing for cover High level Low level Level probe... - Page 7 HST M 9,5 - 14 kW 3 N~ 400 V - 415 V 50 - 60 Hz 3 N~ Elements Contactor Tank Heater fuse Main switch Earthing for cover Level probe High level Low levelt Serial traffic to MIDI-control On / Off Push button Thermostat Alarm 12 V DC...
- Page 8 HSS M 3,4 kW - 7,7 kW HST M 9,5 kW - 14 kW 3 ~ 230 V 50 - 60 Hz Elements Contactor Thermofuse Main Switch Top cover OLEA 72 High level Low level Level probe White Control Green keyboard Yellow White...
-
Page 9: Water Connection
INSTALLATION OF THE GENERATOR AND OPTIONAL EXTRAS Temperature sensor Water connection Control module 400V 3N~ OF F OF F Pressure button Steam nozzle Floor drain Control module may be installed inside the steam room. If the control module is fitted outside the steam room or so low within the steam room that its own thermostat does not show the correct temperature, a separate thermostat which is connected directly to the circuit board must be used. -
Page 10: Light Control
MIDI CONTROL MODULE FOR HSS M AND HST M STEAM GENERATOR Light control Temperature display Time display Temperature setting 25 - 50 °C Time setting 0 - 4 hours Temperature sensor Steam generator On / Off Digital control module -ON / OFF button for starting / stopping the steam -OK button - Bathing temperature selection button (temperature display flashing) - Bathing time selection button (time display flashing) -
Page 11: Control Module Functions
Control Module functions The steam is started from the control module by pressing the ON/OFF button. After this, the temperature display will flash. The temperature may be set with the + and - buttons in 1 increments from 25 °C min. and 50 °C max. When the desired temperature is displayed press the OK button to set the bathing time. - Page 12 INSTALLATION OF THE CONTROL MODULE, PUSH BUTTON AND THE THERMOSTAT: 55 mm 5 mm Affixing hole The control module is factory sealed to withstand use in the humidity of the steam room. It can be installed directly against the wall, fixed with suitable screws through the two fixing holes and sealed in place Locking Locking...
- Page 13 FLUSHING AND RINSE The generator should be emptied after each use. Since chalk and scale will naturally adhere to the internal components, it is important to drain the tank while the water is still hot. This ensures that no chalk builds up on the elements, tank or sensors. Install an 18/16mm copper or heat resistant silicone pipe from the flushing valve into the floor drain.
- Page 14 On generator fitted with a push button, the LED light in the button will blink rapidly when an error is detected; e.g. steam was turned on while the water supply was isolated or for some other reason water flow to the generator was restricted. This error will also be generated if the water flow is interrupted during operation.
- Page 15 Remove parts from packaging. Unscrew pressure release valve from generator and attach filler pipe using PTFE tape provided to ensure a good seal. Use only Citric Acid recommended by Saunatec, to ensure the process poses no health risks. This is how you de-scale using citric acid 1.
