Sky Light TSN51B User Manual

TSN51B Manual
1.

Key features

600/300 dpi resolution scan selection
Built-in BLUETOOTH transmission
Directly save JPEG file to microSD/SDHC card
Support microSD/SDHC card up to 32GB
Driver free to download for Windows® XP, Windows® Vista™,
Windows® 7 and Mac OS® 10.4 or above
(direct plug-in, driver installation not required)

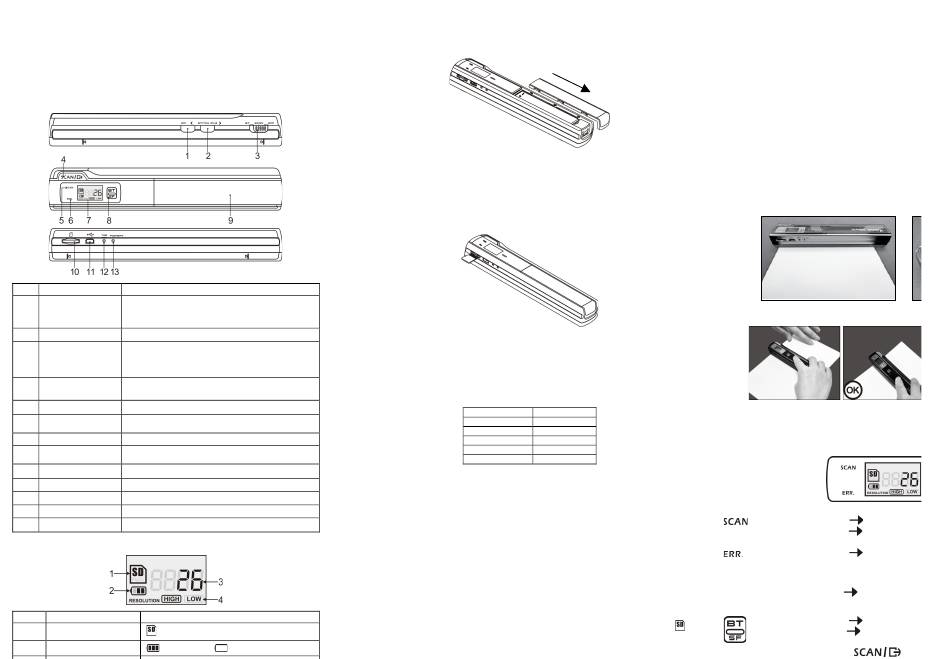

2. Functional parts

Part Function
Select High(600dpi) / Low(300dpi) resolution;
1 Resolution High / Low resolution mode icon will be displayed on
status LCD screen.
2 Stitch file Create new folder for file storage.
Bluetooth On/Off: Switch this key left to turn Bluetooth on
Power / Bluetooth or off.
3
button Power On/Off: Switch this key middle or right to turn
scanner on or off.
In power on mode, press this button to start scanning,
4 Scan
press this button again to stop scanning
5 Scan LED indicator Ready for scan: Yellow LED on
Error LED indicator Over speed: Red LED on
6
Charging battery: Red LED on until complete.
7 LCD screen Scanning status display
Bluetooth: Blue LED on
8 BT/SF LED indicator
Stitch file: White LED on
9 Battery door For 4.2V rechargeable battery
10 microSD card slot microSD/SDHC card storage location.
11 USB interface Download photo to a computer via USB cable provided.
12 Time set Press to enter Time and Date setting mode
13 Format button Press this button to format the microSD/SDHC card.

3. Explanation of the status icons

Item Function
1 SD card indicator
Photos will be stored in microSD card
2 Battery indicator Battery is full
3 Counting indicator
Show scanned files in microSD card

4. Using the scanner

4.1 Installing the battery
1.
2.
3.
4.2 Inserting a microSD memory card (not included)
To operate the scanner, you must insert a microSD Card (not supplied) to record and store your
pictures. Inserting the microSD memory card:
1.
2.
Note: Do not force the card into the slot; forcing may damage scanner and the microSD memory
card. Align microSD card position (as marked) and try again.
4.3 Time setting
1.
2.
3.
4.
5
4.4 Formatting the microSD memory card
Note: All contents on the microSD card will be erased during formatting.
1.
2.
3.
4.
4.5 Calibrating your scanner
Note: Perform calibration only when white balance needs adjustment.
1.
Description 2.
3.
Empty battery
4.
Open the battery door by sliding the battery compartment downwards as indicated by
the arrow in the diagram below.
Make sure battery is in the battery compartment. If not, insert 4.2V rechargeable lithium
polymer battery into compartment.
Turn on the scanner by switching the [POWER] button middle.
Turn OFF the scanner.
Insert the microSD card into the microSD card slot (with metal side facing upwards).
Gently press in until card is latched.
Press [TIME SET] button to enter time setting mode by using a thin, blunt object, such
as a paperclip to access the button. The LCD screen will read "1##" for the year. "##" is
a set of number that would be changed to correspond to the actual time/date setting.
Press the [STITCH FILE] or [DPI] buttons to select the current Year.
Press [SCAN] button to confirm setting. The LCD screen will now read "2##."
Repeat steps 2 and 3 to select the Month, Date, Hour, and Minute.
Indicator Setting
1## Year
2## Month
3## Date
4## Hour
5## Minute
After setting the Minute, "5##", press the [TIME SET] button again to complete the Time
and Date setting.
Insert a microSD card into the scanner with metal side facing upwards. Then power on
the scanner.
Press the [FORMAT] button with a thin, blunt object, such as the end of a paperclip to
access the button. An "F" shows on the LCD screen.
Press the [SCAN] button once to begin formatting microSD card.
The microSD card indicator will blink until the formatting process is complete.
Turn on the scanner by sliding the [POWER] button to ON. Then place the scanner on
the provided "White Balance Calibration" paper.
Click and hold onto the [STITCH FILE] button. While holding onto the [STITCH FILE]
button, press the [SCAN] button once and then release both bottons. SD symbol
flash and "GREEN" and "RED" LED light will turn on.
Do not move the scanner. Wait until the "RED" LED light turns off. "GREEN" LED light
will stay on.
With only the "GREEN" LED light on, start scanning the white paper by sliding the
scanner across the paper until the "GREEN" LED light turns off. (Slide the scanner
4.6 Setting the resolution
1. By pressing the [DPI] resolution button on the scanner, you m
resolution (600 dpi) and low resolution (300 dpi).
2. The high or low resolution mode will be displayed on the LCD
choice.
4.7 Stitch file
To group scanned files into a new folder within the microSD card use th
1. Press the [STITCH FILE] button to create a new folder within
storage. SF white LED light will turn on.
2. Then scan your documents. Your files will be saved into the
3. To save another new set of scans in another folder, press the
again to generate a new folder.
For free optional stitching software, please download the program fr
http://research.microsoft.com/en-us/um/redmond/groups/ivm/ice/
4.8 How to scan
Note: To scan, make sure your scanner is not connected to the com
1. Turn on the scanner by sliding the [POWER] button to SCA
2. Place the document on a flat surface and hold down the doc
3. Place the scanner on the edge of the paper approximately 5
paper to ensure the most of the document can be scanned.
scanning area in between the scanning width indicator mark
scanner.
4. Hold the scanner flat against the material and then press th
5. Slide the scanner slowly, keeping you hand stable to get the
6. Press the [SCAN] button again to stop scanning.

5. LED light indications

"GREEN" SCAN LED ON
"GREEN" SCAN LED OFF
------------------------------------------------------------------------------------
"RED" ERROR LED ON
"RED" ERROR LED OFF
-------------------------------------------------------------------------------------------------
"BLUE" BT LED ON/OFF
will
"WHITE" SF LED ON/OFF
﹡
Scan will START when
﹡To END scan, press
Scan in progress.
Standby / Scan is complete.
Scanning too fast.
May cause scanning error.
Restart and scan again.
No error in scanning speed.
Continue scanning process.
Bluetooth is workong
A new folder created.
button is pressed
button again
