INSTRUCTION MANUAL
OL10-009E
Please keep this manual carefully for further reference!
Thank you for selecting our super quality dehumidifier. Please be sure to read this
manual carefully before using it. Any question, please contact the professional
service for help. Keep the manual for future reference.

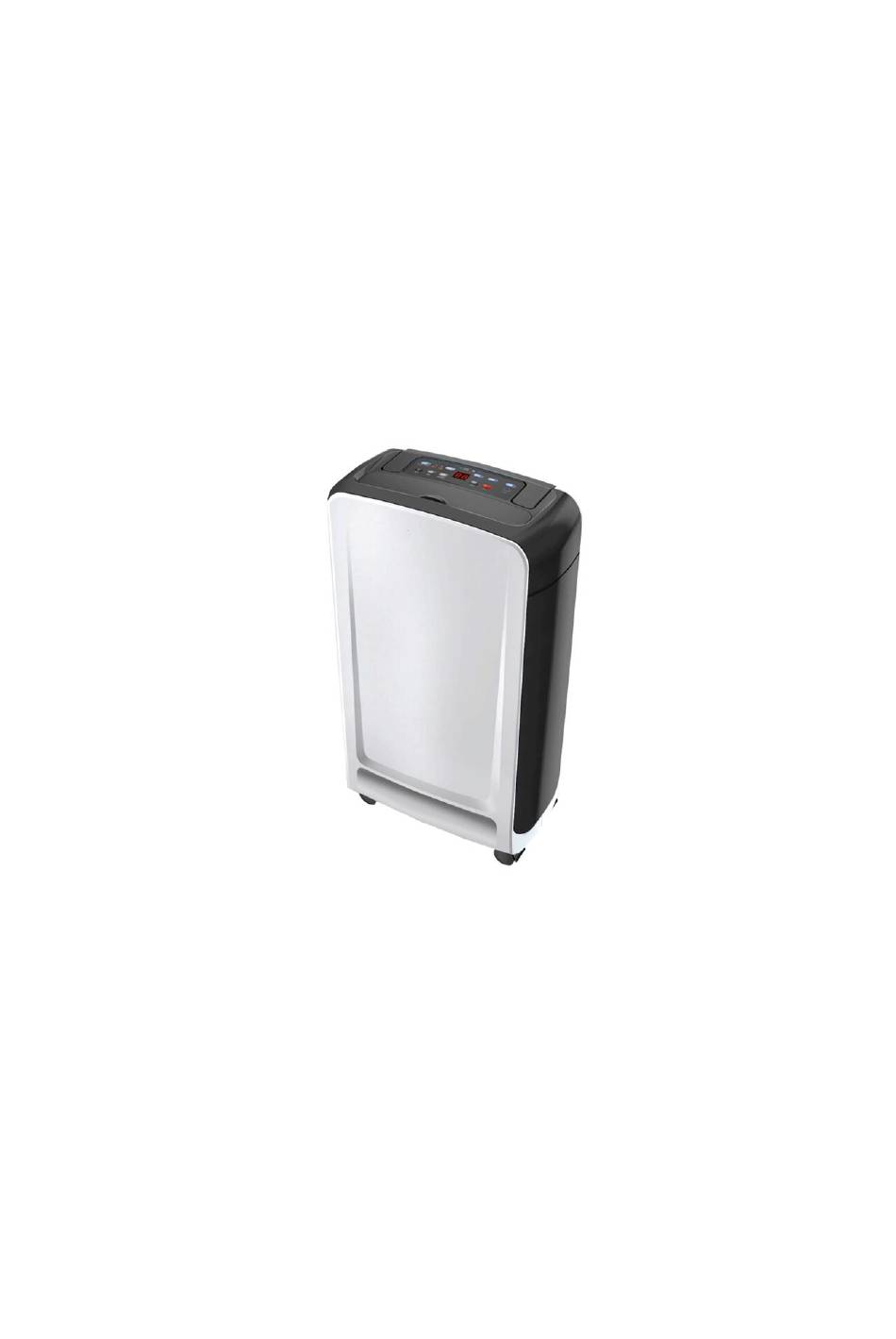

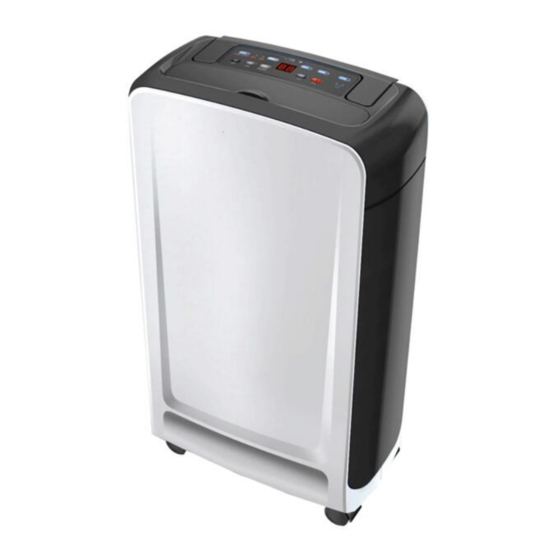

The dehumidifier will remove excess moisture from the air, creating a comfortable
environment for your home and Office. Its compact design allows you to easily move
it to every room.
Advertisement
Related Manuals for EURGEEN OL10-009E
Summary of Contents for EURGEEN OL10-009E
- Page 1 INSTRUCTION MANUAL OL10-009E Please keep this manual carefully for further reference! Thank you for selecting our super quality dehumidifier. Please be sure to read this manual carefully before using it. Any question, please contact the professional service for help. Keep the manual for future reference.
-
Page 2: Table Of Contents
CONTENTS CONTENTS…....................1 CAUTIONS…....................2 INSTALLATION…..................3 PARTS….......................4 OPERATIONS…....................5 WATER DRAINAGE…..................7 MAINTENANCE…..................10 TROUBLE SHOOTING…................12... -
Page 3: Cautions
CAUTIONS Please read the operating instructions carefully before using your dehumidifier for the first time. Install the unit on flat and hard floor to diminish vibration or noise. Never immerse the unit in water or other liquids. Never operate the unit if the cable or other connector is damaged, or something abnormal may happen, please call customer service for help. -
Page 4: Installation
INSTALLATION Install the unit in hard & flat floor, keep the room ventilated. Leave at least 20cm space around the unit (when the hose is not connected). 1. Push the rubber adaptor of the water pipe on the drainage port of rear panel. Please refer the following picture. -
Page 5: Parts
PARTS Front Handle Top Cap Louver Front Panel Right Side Plate Castor Back Filter Gridding Continuously Drain Cover Water Tank Power Cord Left Side Plate Back Panel... -
Page 6: Operations
OPERATIONS Note: please open the louver before you start the dehumidifier Indication Power indication When power is on, whenever it is running or not, the power indicator shows green Water full indication When water tank is full, indicator light shows red and the unit will buzz for 15 times and then stop. - Page 7 Drying clothes model indication When in drying clothes model, the drying clothes model indicator shows red Ionizer feature: When the ionizer function is running the indicator shows green. Display This indicator with 3 functions as below: 1. When the power is on, it shows indoor humidity 2.
-
Page 8: Water Drainage
3. Humidity setting button Press this button to adjust humidity as following (The initial humidity is 50%), from 50%→ 55%→60%→65%→70%→75%→80%→40%→45%→50%.When the indoor humidity is lower than the set humidity, the machine would stop automatically. 4. Fan speed setting button Press this button to adjust the fan speed between HIGH, LOW fan speed. 5. - Page 9 Pull the water tank at the back of the machine slightly; the water tank is forced to move out Empty the water tank Cautions! 1. Do not remove the float from the water tank; otherwise, the machine will not stop to work when the water tank is full.
- Page 10 Continuous drainage 1. Open the cover on the back of the dehumidifier. 2. Take out the water tank 3. Insert a PVC pipe with 9.5mm（inner diameter 9.5mm）, and the recommended length is 300mm; put the other side into a container, such as a bucket. NOTE: PVC pipe is excluded, need to buy separately.
-
Page 11: Maintenance
4.Put the drain-pipe to the specific location Caution: 1. Never block the water outlet or the pipe, water will flow into the water tank if it is blocked. 2. Never bend the drainage pipe and be always lower than the outlet. 3. - Page 12 Clean the washable filter every 2 weeks. If the filter is blocked with dust, the efficiency will reduce. Wash the air filter by immersing it gently into warm (about 40°) water with a neutral detergent, rinse it and dry it thoroughly in a shaded place. 1.
-
Page 13: Trouble Shooting
Dehumidifier storage If the dehumidifier will not be used for an extended period of time: 1. Drain the water tank completely and make sure no more water stocked inside. 2. Unplug the unit and fold up the power supply cord. 3. - Page 14 Clean the air filter as Is the air filter clogged? instructions The dehumidifying Is the door/window Close the door / window function doesn't work opened? or the unit turn on / off Is the unit close any heat Remove the unit to a cool frequently emanation? place...
