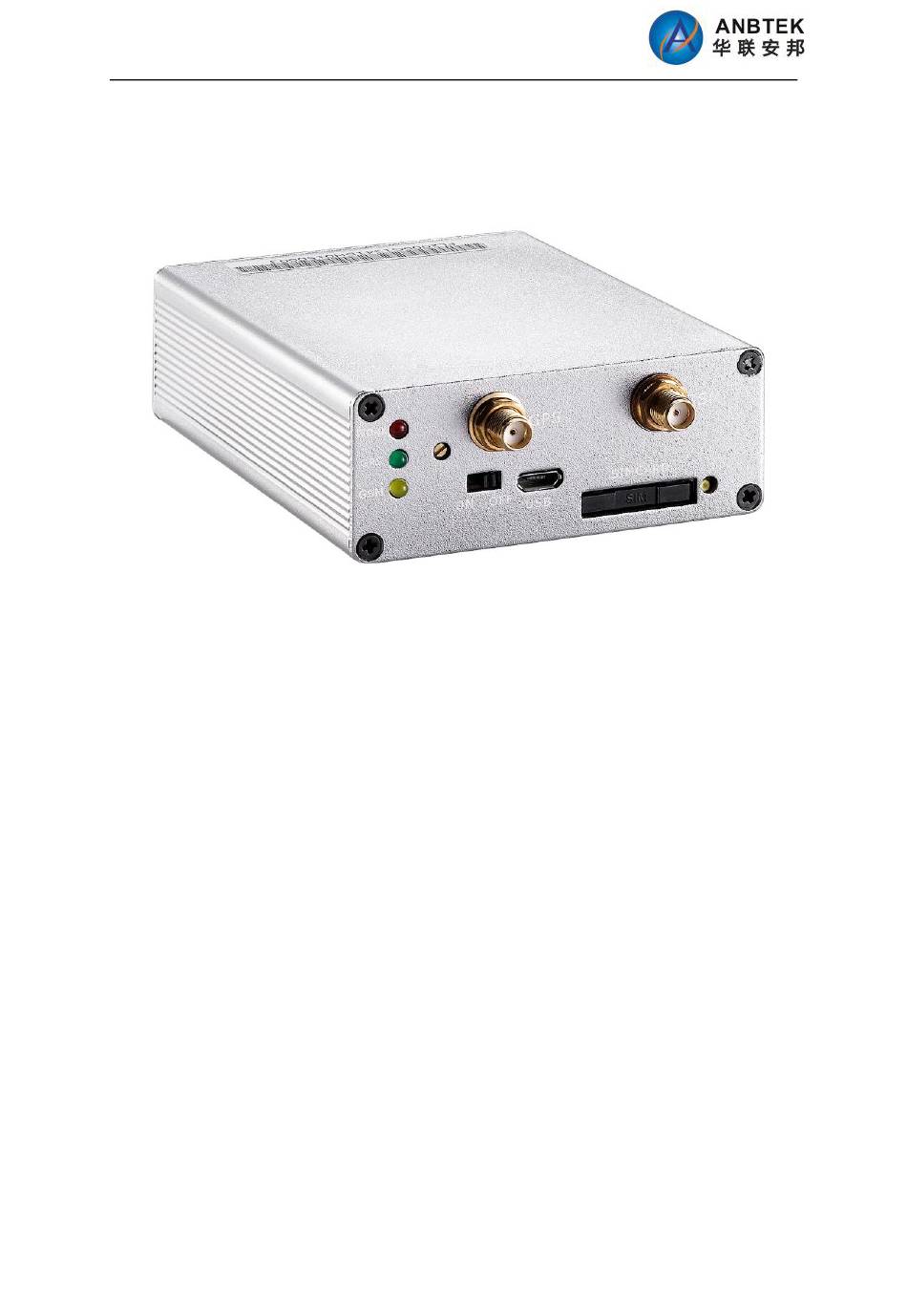

TS100W User Manual

(Multi-functional AVL Terminal)

Ver:1.0

Table of Contents

Need help?

Do you have a question about the TS100W and is the answer not in the manual?

Questions and answers

Summary of Contents for ANBTEK TS100W

Page 2: Table Of Contents
Contents Index 1 INTRODUCTION..........................4 1.1Attention............................4 1.2 Instructions of safety........................4 1.3 About document..........................5 2 BASIC DESCRIPTION..........................5 2.1 Package contents..........................5 2.2 Add-ON Optional Accessories......................6 2.2.1 Part Name: Mobile Data Terminal for GPS AVL..............6 2.2.2 Part Name: Liquid Fuel Level Sensor..................6 2.2.3 Part Name: RS485 Image Camera...................
Page 3 7.1.8 Setup GPRS parameters:......................35 7.1.9 Setup Time-based Data report Interval: (GPRS)..............35 7.1.10 Switch Off Time-based data report:..................35 7.1.11 Switch ON/OFF GPRS Data report when ACC Off............36 7.1.12 Setup Voice listen-in Call Back telNo................. 36 7.1.13 Setup Distance Report Parameter:..................36 7.1.14 Setup Angle-based Report Angle Parameter...............
Page 4: Introduction
The device uses a 9V...36V DC power supply. The allowed range of voltage is 9V...36V DC Power. To avoid mechanical damage, it is advised to transport the TS100W device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are visible, which show the status of operation the device is in.
Page 5: About Document
. SMS – Short Message Service. . AC/DC – Alternating Current/Direct Current. . Record – AVL data stored in TS100W memory. AVL data contains GPS and I/O information . AVL packet - Data packet that is being sent to server during data transmission.
Page 6: Add-On Optional Accessories
2.2 Add-ON Optional Accessories 2.2.1 Part Name: Mobile Data Terminal for GPS AVL Part No.: PND-100  5’TFT LCD Touch Display, 800*480  Microsoft WinCE.NET 6.0  SD Card Supported: 2GB-8GB Size:185x100x30mm   Supported Map: Garmin, PAPA GO Functionality: Road Navigation with Map Software Make calls out and pickup incoming call Receive/Send SMS to anyone...
Page 7: Part Name: Rs485 Image Camera
2.2.3 Part Name: RS485 Image Camera Part No.: ZM-CAM-ICA01  Dimension: 93.5 (Diameter)x60.5mm(Height)  Work Temp:-20℃～70℃  Resolution: 320x240Pixels( 18 IR LEDs)  Image Output: JPEG  View Angle: 90Degrees  Baud Rate:115200  Communication: RS232  Night-Vision Distance:5-10Meters  Night Vision lumen:5LUX ...
Page 8: Part Name: Speed Over Alarm Buzzer
2.2.5 Part Name: Speed Over Alarm Buzzer Part NO.: HYDZ  Working Voltage: 3-24V DC  Sound at 10CM: 90dB  Rated Current: 15mA  Beeping Type: Bi….Bi….Bi 2.2.6 Part Name.: Temperature Sensor Part NO.:ST0923971  Temperature Range: -50-150  Accuracy: ±0.2%PS ...
Page 9: Gps Features
Module 4G LTE EC25 . SMS (text, data) . Voice calling 2.3.2 GPS features: . Skylab GPS Receiver . -160dB Sensitivity 2.3.3Hardware features: . ARM7 STM103FRBT6 Micro Controller . 4MB internal memory . Built-in high sensitivity movement Sensor . Internal backup battery .On board RS232 or 485 communication port .Two Way Audio intercom .Fuel Sensor, Temperature Sensor, Dispatch LCD Display connection...
Page 10: Mechanical Features
. Firmware update via USB_RS232 port . Configuration update via GPRS, SMS or virtual ComPort . More than 15000way points record storage capability . GPRS NULL zone data recover automatically . Supported extra device: Fuel sensor, Temperature sensor, LCD Display Navigator, Image Camera, RFID Reader .
Page 11: Connection, Pinout, Accessories
3 CONNECTION, PINOUT, ACCESSORIES 3.1 Status LED 3.2 Wire Connection PIN out Introduction 3.2.1 OnBoard Pin Slot description - L1 2x9 Pin Socket (Power+I/O) Standard 2x9 socket Pin Slot Description: Pin No. Pin Name Description MIC+ Microphone + SOS - Digital Output, Connection with Relay for Immobilizer On/Off Duty/Empty Digital Input, 0V: empty, Positive: Duty...
Page 12 Buzzer Buzzer output 12/24V DC Fuel Fuel AD Calibration output, Range 0-9V DC Calibration Temperature Temperature sensor Input(0-10VDC) Sensor ACC Wire, 0: off;12/24V: ON. Very important, strong recommend to Ignition status connect. Power + Power +,9-36V DC Mic- Microphone - Short-Call Short-call button input, Positive Trigger Door Status...
Page 13: Insert Simcard
12/24V DC Power Output 12/24V DC for Display Fuel AD Calibration output, Range 0-9V DC Temperature sensor Input(0-10VDC) Speaker - Speaker – for Display L3, 2x2Pin Socket( RFID Reader/Camera Connection) 2x2 Pin socket Description: Pin No. Pin Name Description 5V DC Power Output, 5V DC (Backup for other application) RS232, RX Ground...
Page 14: Internal Battery Switch
3.5 Mini USB Usage TS100W has one micro-USB Connector built on PCB Board which can use for device configuration and Firmware Upgrading by connect with PC. For Micro-USB connection with PC, you have to install a Driver in your PC in order to let PC can recognize TS100W Device.
Page 15 When TS100W is connected for the first time to PC, you will be prompted with 'Found New Hardware' window. Click 'Cancel' to stop automatic installation process and disconnect TS100W from PC. Find your download TS100W Driver and double click the...
Page 16: Wire Connection And Accessories
PC and reinstall the drivers. 3.6 Wire Connection and Accessories For installation this TS100W device to a vehicle, Please refer to “TS100W Installation Diagram” which you can download from support center. For those special application accessories like Fuel Monitoring, Temperature monitoring, Camera...
Page 17: Firmware
Connect ACC wire to ignition switch signal wire. This wire has to be with Ignition status ON/Off status. And this wire is a must connection which will make TS100W work properly like data report interval, Sleep mode activate and deactivate etc.
Page 18: Sleep Mode
TS100W device is designed to acquire GPS and I/O information in live and send them to server via 3G/4G network. It uses GPS receiver to acquire GPS data and is powered with data acquire methods: Time-based, distance-based, angle-based and various I/O event trigger. All data acquired will send to server in real time via GPRS or SMS.
Page 19: Movement Sensor
Instead, it uses virtual points which are established every second, and calculates distance between them. This virtual odometer for TS100W need to activate by GPRS commands and then it will begin to start the odometer calculation. And it also could be deactivated by GPRS commands.
Page 20: Speed Limit Over And Buzzer Alert
This time period only can be configured from Server Client software remotely. 5.8 GEO Fencing: TS100W device allow user to configure 10 GEO Fencing areas. And the fencing area could be circle or rectangle shape. Copyright © 2015 Shenzhen ANB Technology Co., Ltd. All rights reserved.
Page 21: Alarm Working Principals
• Y – Circular Point Y coordinate • R – radius of circle when Circular zone used 5.9 Alarm working principals TS100W is a dedicated AVL tracking terminal, but we also included alarm functions for security purpose. TS100W alarm function includes: - External Power tampers alarm - Panic Help alarm - Shortcut Call button for Medical, Information query service help with Monitoring base.
Page 22: Configurations
All above alarms can be enable/disable by configurator software, and the user could use configurator to choose the wanted alert method like by SMS, missed calls etc. 6 CONFIGURATIONS TS100W has default factory settings. Setting should be changed according to your application and 3G/4G operator information. TS100W configuration could be performed with multi-method:...
Page 23: Operation Menus
TS100W Configurator window consist of following part: -Operation Menu; - GPRS Parameters Setting - Authorization Setting - Device Status display - System Setting - Other Setting 6.1.1 Operation Menus: • Default: Choose the default factory recommended settings for the device. Every time you launch Configurator software, you either have to load settings from file, or load default settings and modify values manually.
Page 24: Gprs Parameters
Configurator is able to read it. Otherwise it will be displayed as 'none'. • COM port: Click this drop-down list to choose which COM port is used by TS100W to connect to PC. See chapter 0 to find out number of the port.
Page 25: Authorization Setting
TS100W support device configure two Ports. Port1 is for IP1 only, and Port 2 for IP2 only. The priority is same as the IP address. • Device ID: The device ID is the unique identification code which was registered in Server database.
Page 26: Device Status
6.1.4 Device Status: The device status is using for Bench testing purpose when your connect TS100W with PC. To check 3G/4G network is able to register and GPS position fix capability. •3G/4G Operator: 3Gnetwork Operator name which your Simcard belongs •3G/4G Status:...
Page 27 This parameter is to setup the movement sensor sensitivity. We suggest put it as 150-300 value which is less means high sensitivity, and bigger means low sensitivity. TS100W built-in movement sensor is a type for shocking trigger. The MCU calculates the shocking times every second to know how big the impact occurred.
Page 28 •Time Zone: TS100W use GPS factor time as data time. And normally it's GMT time. By setup this time zone to make the SMS data time as vehicle local time. But all data go to Server still use GMT time.
Page 29: Other Setting
6.1.6 Other Setting: •Alarm Setting: In this window, the user can configure which alarm event to receive what kind of Alerts, like by SMS or By missed calls.And it also could be configured to send these alert to whom. In this example, it means when Hijack happened, User A and C will receive SMS alert. And user B will receive a missed call alert.
Page 30: Configuration By Gprs Commands
Configurator and SMS are the basic configuration methods for device. 7. SMS Command List SMS commands are used to identify TS100W current state, possible configuration errors, perform reset, set parameters, switch on/off outputs, etc. SMS command should be sent along with module access password. The factory default password...
Page 31 Example for getting Google Map link: *1234*P# All available SMS command list as following: Command Command Name Functionality Response Type Gxxxxx Setup Server SMS Modem NO. A*B*C Setup User A/B/C authorization NO. Setup Call Center Service NO. Modify Access Password Recover Factory Setting SPD:xxx Setup speed Limit...
Page 32: Configuration Sms Commands
Query Device Firmware Version Error SMS Reply Note: Password Wrong device Response: Key Incorrect! Command format Wrong Response: Format Incorrect! Setup Failed Response: Setup Failed! Query failed Response: Query failed! Control command Failed response: Control Failed! 7.1 Configuration SMS commands: 7.1.1 Setup Server SMS modem NO.: Function SMS Command Format...
Page 33: Setup Call Center D Serve No
7.1.3 Setup Call Center D Serve NO.: Function SMS Command Format Device Reply SMS Setup Call Center D No. *UPWD*Dxxxxx# Unarmed;D:xxxx This is D number is a monitoring base call service NO. If the drive r pressed the emergency button, device will call this no and make a two way audio intercom.
Page 34: Setup Speed Over Limit Value
Factory defaults setting are as following: Time-based Data Report Interval: 60Seconds Distance-based Data Report Interval: 500Meters Angle-based Data Report Interval: 30Degrees ACC ON/Off Report: ON IP,Port, APN, username and password: Empty Authorized Numbers A/B/C/D/G: Empty Default Password: 1234 GEO Fencing Areas: Empty Speed Over Limit: 0 ( Off) Data Report when ACC Off: Off Memory Records time interval: 5Minutes...
Page 35: Setup Gprs Parameters
*1234*GPRS:13400010001,183.15.144.143,9000,01,CMNET,user,pass# Example Reply: GPRS activated!13400010001,183.15.144.143,9000,01,CMNET,User,Pass Details: Device ID: 13400010001, in TS100W we use IMEI NO. as device ID IP address: 183.15.144.143. Port NO.: 9000. Maximum length is 5 digits Heartbeat data sending Time Interval: 01 Please always put it as 01, because this function is not applied yet.
Page 36: Switch On/Off Gprs Data Report When Acc Off
Switch Off *UPWD*ITVOFF# ITV Disabled Example Command: *1234*ITVOFF# Example Reply: ITV Disabled! 7.1.11 Switch ON/OFF GPRS Data report when ACC Off Function SMS Command Format Device Reply SMS Switch ON *UPWD*AVON# ACC Off Data report activated! Switch Off *UPWD*AVOFF# ACC Off Data report deactivated! Note: Factory default setting is Off This setting is only valid for GPRS data sending...
Page 37: Setup Angle-Based Report Angle Parameter
7.1.14 Setup Angle-based Report Angle Parameter Function SMS Command Format Device Reply SMS Setup Angle-based *UPWD*CR:XXX# CR:xxx Report on! Report Angle Parameter Example Command: *GPWD*CR:90# Example Reply: CR: 90 Report on! Note: Xxx value ranges 00-360, when xxx=00, means function off. Unit is degree 7.1.15 Sleep Mode setting: Function...
Page 38: Control Function Sms Commands
7.2 Control function SMS Commands 7.2.1 Enable Engine Immobilizer Function SMS Command Format Device Reply SMS Enable Engine Immobilizer Enabled; *UPWD*stop # Immobilizer $GPRMC,xxxxxx.xxx,A,xxxx.xxxx,N,xxxxx.xxxx,E,x.x,xxx.x, xxxxxx,,,A*xx Note: For safety reason, this functions as: In first 3minutes, device cut engine 1s and then release for 2seconds as recycle.
Page 39: Query Functionsms Commands
Example Reply: GPRS Enable! 7.3 Query function SMS commands: This query commands is to query vehicle status, device position or parameters etc. 7.3.1 Query all authorized Phone Numbers SMS Command Function Device Reply SMS Format Query authorized Unarmed;A:XXXXXB:XXXXC:XXXXD:XXXXXG:XXX *UPWD*YY # Number Example Command: *1234*YY#...
Page 40: Query Current Gprs Parameter In Memory
Example Reply: GMT+0800 setup ok 7.3.4 Query current GPRS Parameter in memory Function SMS Command Format Device Reply SMS GPRS Activated! Query GPRS Parameter *UPWD*GPRS# 13400010001,183.15.144.143,9000,01,CMNET,User,pass Example Command: *1234*GPRS# Example Reply: GPRS Activated! 13400010001,183.15.144.143,9000,01,CMNET,, 7.3.5 Query device IMEI NO. Function SMS Command Format Device Reply SMS Query IMEI NO.
Page 41: Query Gps Data By Sms With Gprmc Format
Signal Strength: 3Gnetwork signal strength GPRMC data: GPS element. Details check X command description. 7.3.6 Query GPS data by SMS with GPRMC format SMS Command Function Device Reply SMS Format Query $GPRMC,xxxxxx.xxx,A,xxxx.xxxx,N,xxxxx.xxxx,E,x.x,xxx.x, *UPWD*GPS# Status xxxxxx,,,A*xx Example Command: *1234*GPS# Example Reply: $GPRMC,xxxxxx.xxx,A,xxxx.xxxx,N,xxxxx.xxxx,E,x.x,xxx.x, xxxxxx,,,A*xx GPRMC Data details: Copyright ©...
Page 42: Query Gps Data By Sms With Degree Formats
7.3.7 Query GPS data by SMS with degree formats SMS Command Function Device Reply SMS Format 2011-12-08, Query GPS data with *UPWD*GPSD 12:32:13,V,60Km/H,Heading:60,LAC:2638,CID:0ECF,Lat:22.54 degree format 415,Lon:113.92423 7.3.8 Get current vehicle position by Google Map link SMS Command Function Device Reply SMS Format Time:2011-12-08 Query Google map...
Page 43: Query Device Firmware Version
7.3.9 Query device firmware version Function SMS Command Format Device Reply SMS Query Firmware Version *UPWD*Ver# Ver:XXXXX Example Command: *1234*VER# Example Reply: Version:TS100WG 1.0.0 7.4 Alarm SMS Alert list When alarm event triggered, and the user has choose to receive SMS alert, those SMS alert will send to A/B/C user authorized number.
Page 44: Debug And Test Modes
8 Debug and Test Modes: TS100W is able to transmit its current status when connected to PC via USB Port cable. It is used to detect errors and provide information to possible solutions when device operates as unexpected.
Page 45: Connecting Power Source
9.2 Connecting Power Source • Be sure that after the car computer falls asleep, power is still available on chosen wire. Depending on a car, this may happen in 5 to 30 minutes period. • When module is connected, be sure to measure voltage again if it did not decrease. •...
