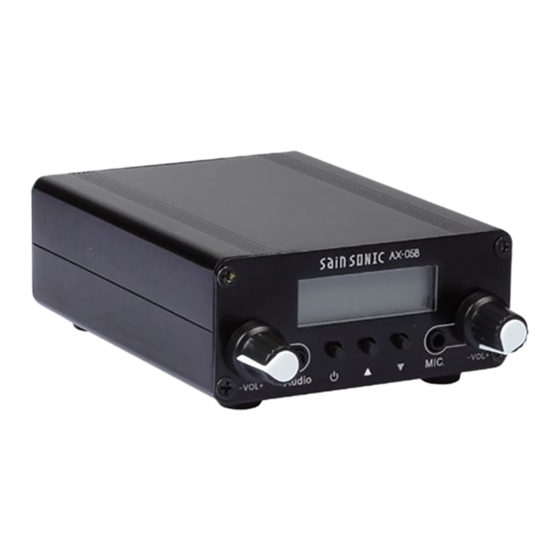

AX-05B User Manual
1. Electrical parameters:
Working Voltage： DC 9V~14V
Operating Current： ＜0.2A；
RF Frequency Range：
88.1~107.9MHz
RF Power：
<43dBuV@3m
Modulation:
WFM
Frequency Deviation: +/-75KHz
SNR: <-60db
Pre-emphasis Delay：75us；
Separation：
40dB；
Input Level： -13dBV；
Applicable Microphone: Electret Microphone.
Dimensions： 114mm（L）×88mm（W）×38.5mm（H）
2．Operation Brief
a. Operation Steps: connect power
connect audio
connect microphone
press the power button to switch
on
into normal working condition
.
2．Boot
Press button in the front panel
, fm transmitter will be
Advertisement
Table of Contents
Related Manuals for SainSonic AX-05B
Summary of Contents for SainSonic AX-05B
- Page 1 AX-05B User Manual 1. Electrical parameters: Working Voltage： DC 9V~14V Operating Current： ＜0.2A； RF Frequency Range： 88.1~107.9MHz RF Power： <43dBuV@3m Modulation: Frequency Deviation: +/-75KHz SNR: <-60db Pre-emphasis Delay：75us； Separation： 40dB； Input Level： -13dBV； Applicable Microphone: Electret Microphone. Dimensions： 114mm（L）×88mm（W）×38.5mm（H） 2．Operation Brief a.
- Page 2 in to normal working status. 3．Frequency Adjustment Press button to adjust the needed working frequency of the machine. Long press the button, it can into quickly adjustment state. 4．LINE Volume Adjustment By "LINE LEVEL" knob, you can adjust the input volume. The clockwise is to increase, counterclockwise is to decrease.
- Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
