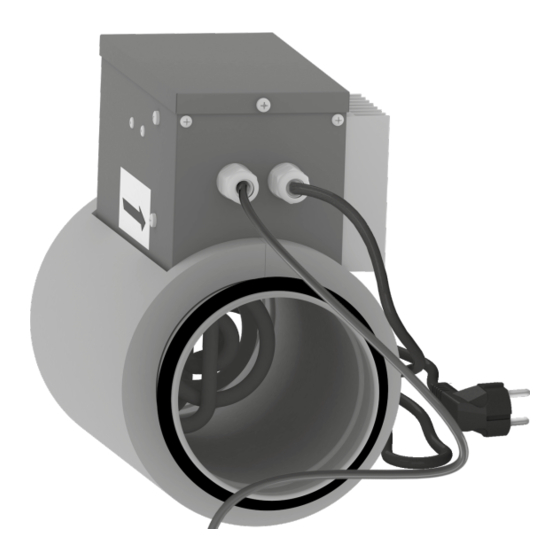

- Page 1 Duct heater eVh 125 S21 V.2 eNh 125 S21 V.2 eVh 150 S21 V.2 eNh 150 S21 V.2 eVh 160 S21 V.2 eNh 160 S21 V.2 eVh 200 S21 V.2 eNh 200 S21 V.2 eVh 250 S21 V.2 eNh 250 S21 V.2 eVh 315 S21 V.2...
-
Page 2: Table Of Contents
eVh/eNh S21 V.2 www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................4 Design and operating principle ............................5 Mounting and set-up .................................. 6 Connection to power mains ..............................7 Technical maintenance ................................ - Page 3 eVh/eNh S21 V.2 www.blaubergventilatoren.de This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.
-
Page 4: Purpose
eVh/eNh S21 V.2 www.blaubergventilatoren.de PURPOSE The heater is designed for integration into a ventilation system and joint operation with an air handling unit equipped with a control system used to switch on the heater and control its operation. DELIVERY SET Name Number Heater... -
Page 5: Design And Operating Principle
eVh/eNh S21 V.2 www.blaubergventilatoren.de Technical data Dimensions [mm] Power consumption Model Minimum air flow of electric Current [A] Ø D В heating elements [kW] EVH/ENH 125-0.6-1 EVH/ENH 125-0.8-1 EVH/ENH 125-1.2-1 EVH/ENH 150-0.8-1 EVH/ENH 150-1.2-1 EVH/ENH 150-1.7-1 EVH/ENH 150-2.0-1 EVH/ENH 160-0.8-1 EVH/ENH 160-1.2-1 EVH/ENH 160-1.7-1 EVH/ENH 160-2.0-1... -
Page 6: Mounting And Set-Up
eVh/eNh S21 V.2 www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. Attach the ENH heater to the air duct connected to the supply air spigot. Attach the EVH heater to the air duct connected to the intake air spigot. The heater is mounted horizontally or vertically. -
Page 7: Connection To Power Mains
eVh/eNh S21 V.2 www.blaubergventilatoren.de Ensure air duct tightness at the sensor mounting location. CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 8: Technical Maintenance
eVh/eNh S21 V.2 www.blaubergventilatoren.de TECHNICAL MAINTENANCE The heater should be inspected periodically for mechanical damage, checking that the seals are tight and that the ducts are securely fastened to the heater. Heater maintenance includes: • Inspection of tightening of ground screw clamps and electric connections. •... -
Page 9: Storage And Transportation Regulations
eVh/eNh S21 V.2 www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С to +40 ˚С and relative humidity up to 70 %. •... -
Page 10: Manufacturer's Warranty
eVh/eNh S21 V.2 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 11: Certificate Of Acceptance
eVh/eNh S21 V.2 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Duct heater Model ______________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 12 www.blaubergventilatoren.de B249EN-01...
