Summary of Contents for SG Wireless SGW101 Series

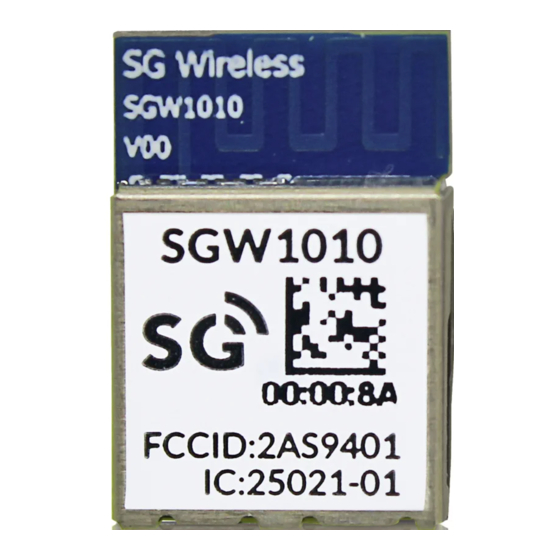

- Page 1 SGW101X BLE Modules Series Model：SGW1010，SGW1010A，SGW1011，SGW1011A...
-
Page 2: Introduction
Support 128-bit AES HW encryption 48 General Purpose I/O pins Supply voltage: 1.7–5.5V Low Energy Current consumption, 3V DCDC enabled: Tx only, 0dBm: 4.8mA (typical) Rx only @1Mbps: 4.6mA (typical) @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... - Page 3 CE Pending BQB: Pending FCC: 2AS9401 IC: 25021-01 Mechanical Dimension: 10.2mm x 15.0mm x 2.1mm APPLICATIONS Connected home Smart city infrastructure Industrial mesh networks Industrial smart lighting Logistics and transportation @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com...
-
Page 4: Table Of Contents
9. Certifications............................12 A. Qualified Antenna Type........................12 B. Bluetooth............................12 C. FCC Statement..........................13 D. IC Statement............................ 14 10. Product Packaging..........................16 11. Revision History............................17 12. Useful Link.............................. 17 @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 5: Ordering Information
Bluetooth 5 module, u.FL connector for external antenna SGW1010A Bluetooth 5 module, Built-in antenna, Low voltage operation SGW1011A Bluetooth 5 module, u.FL connector for external antenna, Low voltage operation SGW1010–EVK SGW1010 Bluetooth 5 module Evaluation Kit @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 6: Electrical Specifications
VCC Supply Rise time (0V to 1.7V) R_VCC VCCH Supply Rise time (0V to 3.7V) ℃ R_VCCH Operating Temperature Range Ambient REMARK: (1): Applicable to module configures as nRF52840 HV mode. @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 7: Module Interface
The USB interface of the SGW101X series can be used in either Normal (LV) or High voltage mode of the module. The inside USB peripheral has a dedicated internal voltage regulator for converting the VBUS supply to 3.3 V. @2019 | SG Wireless Limited Confidential Proprietary... -
Page 8: Rf Antenna Interface
Parameter Min. Typ. Max. Unit Input High Voltage 0.7 x V Input Low Voltage 0.3 x V Output High Voltage – 0.4 Output High Voltage + 0.4 Pull-up Resistance kΩ @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... - Page 9 The SGW101X series modules also support parallel trace output. This allows output from the Embedded Trace Macrocell (ETM) and Instrumentation Trace Macrocell (ITM) embedded in the Arm Cortex-M4 core of the nRF52840 chip. The ETM @2019 | SG Wireless Limited Confidential Proprietary...
-
Page 10: Mechanical Dimension
1 clock signal and 4 data signals respectively – TRACE_CLK, TRACE_D0, TRACE_D1, TRACE_D2 and TRACE_D3. 6. Mechanical Dimension Figure 7 SGW1010/SGW1010A (Embedded Antenna) Mechanical Information Figure 8 SGW1011/SGW1011A (External Antenna) Mechanical Information @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 11: Module Marking
SGW101X Series 7. Module Marking Figure 10 SGW1010/SGW1010A/SGW1011/SGW1011A Module label @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 12: Soldering Temperature-Time Profile For Re-Flow Soldering
SGW101X Series 8. Soldering Temperature-Time Profile for Re-Flow Soldering Figure 11 Soldering Temperature-Time Profile for Re-Flow Soldering Remark: SGW101X series are rated as MSL 3, 168-hour floor life after opening. @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 13: Certifications
RF-PHY testing. To achieve Bluetooth End Product qualification, the SG Wireless RF-PHY QDID can be combined with Nordic QDIDs for the SoftDevice used when filing on the Bluetooth SIG website. The only testing required is for the Bluetooth profiles supported by the customer’s product. -
Page 14: Fcc Statement
FCC ID:2AS9401,Additionally, the following statement should be included on the label and in the final product’s user manual: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 15: Ic Statement
This device complies with RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... - Page 16 The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product. @2019 | SG Wireless Limited Confidential Proprietary...
-
Page 17: Product Packaging
Reel Packaging: 1000 modules will be loaded into the REEL. Each reel will be placed in an antistatic bag and put into a 340 x350x45mm box as shown in below diagram. @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com... -
Page 18: Revision History
The site also includes tutorials in detail to help you get started. Official Page of nRF52840: https://www.nordicsemi.com/eng/Products/nRF52840 A brief introduction to nRF52840 and download links for Nordic’s developing software and Soft Devices. @2019 | SG Wireless Limited Confidential Proprietary Website : www.sgwireless.com...
