Summary of Contents for WP 80MM Series

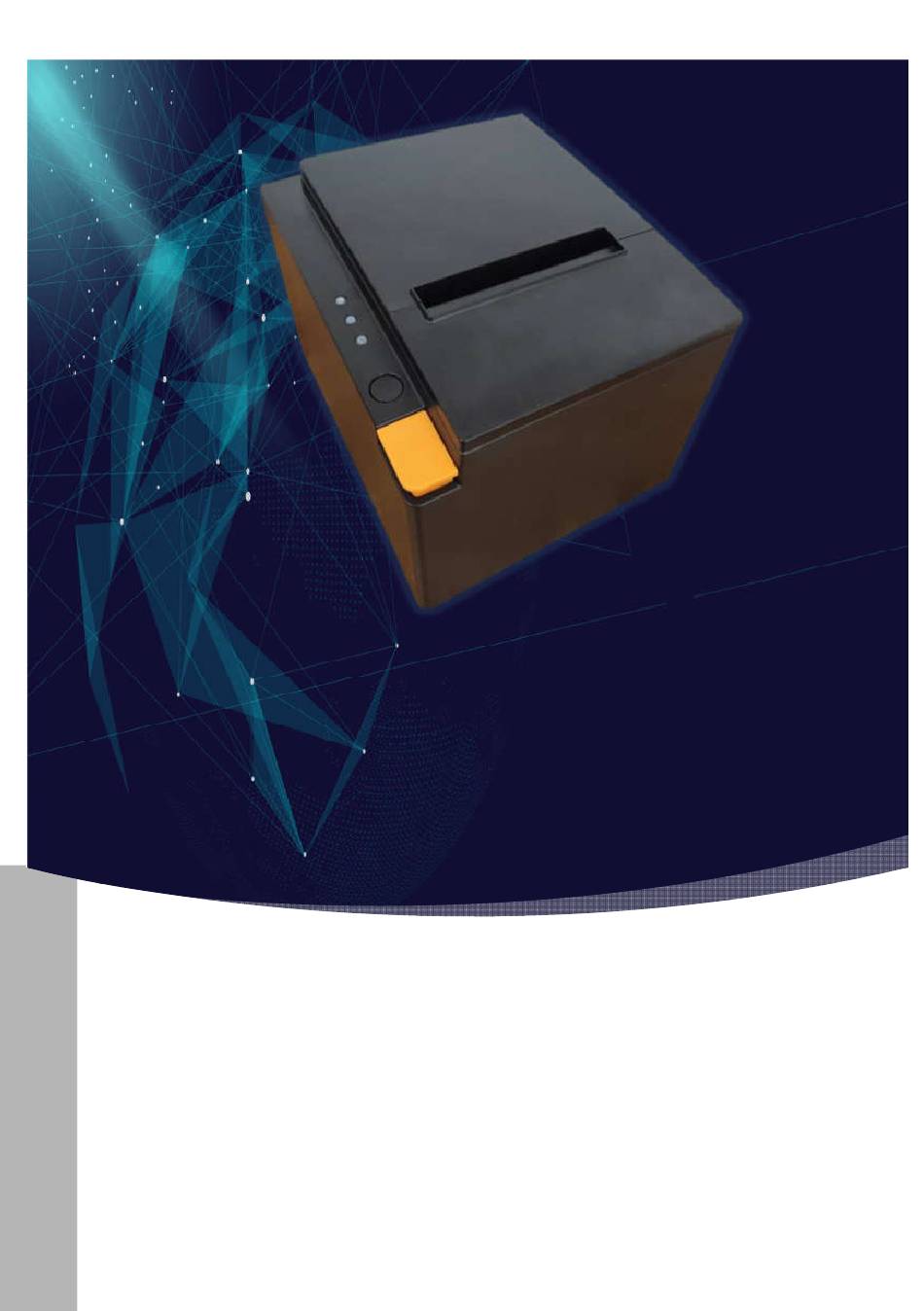

  • Page 1 80MM SERIES THERMAL RECEIPT PRINTER -INSTRUCTION MANUAL...

  • Page 2: Safety Notice

    1. Safety Notice: * Don't touch the printer head with anything. * Don't touch the cutter blade. * Don't bend the power cord excessively or place any heavy objects onto it. * Don't use the printer when it is out of order. This can cause a fire or and electrocution. * When connecting or disconnecting the plug, always hold the plug but not the cord.
  • Page 3 4. Features * 200-250mm/sec high-speed printing * Support Kitchen Printing and Ethernet Printing * High print quality * Low working noise * Support cashdrawer kick-out * Easy maintenance * Various interface available (Serial + USB + Ethernet + Bluetooth) * Built-in data buffer * Support character enlargement, bold, underline, line spacing and character spacing * Support NV images download * Low energy consumption and low operation cost...

  • Page 4: Specifications

    5. Specifications Model Thermal Printer Print method Direct Thermal line Print density 576dot/line Print speed 250mm/sec Print Resolution 8dots/mm(203DPI) Print width 72mm Paper thickness 0.06~0.08mm Paper diameter 83mm Serial + USB + Ethernet Print interface Serial + USB + Ethernet + Bluetooth(optional) UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ Barcode type CODE39/ITF/CODEBAR/CODE93/CODE128 /...

  • Page 5: Printer Connection

    6. Printer Connection a. Plug the DC cord connector into the printer's power connector. b. Plug the data cable connector into the printer's interface connector. c. Plug the drawer cable into the drawer kick-out connector on the back of the printer next to the interface connector.

  • Page 6: Installing The Roll Paper

    7. Installing the roll paper a. Open the printer cover. b. Install the roller in the roll paper, and put them into the printer. c. Pull out some paper outside the printer and then close the printer cover. d. Close the top cover. Press the printer cover to avoid error position of roll paper. 8.
  • Page 7 9. Functions of buttons and indicators （1）FEED Button Press to feed paper manually. （2）PAPER Indicator When this indicator is lighting as well as the ERROR indicator, printer is out of paper. When this indicator is dim as well as the ERROR indicator, printer has paper. When this indicator is lighting but the ERROR indicator is dim, roll paper is near end.

  • Page 8: Printer View

    11. Printer view 12. Connect the Bluetooth The high edition can be connected to the mobile phone APP via Bluetooth to print Recipe. After installing the Android APP, the software itself has built-in standard printing formats of various Recipe. Start the printer and press the function button of the printer. The printer prints out the interface information.

  • Page 9: Driver Installation

    13. Driver Installation Insert the bundled CD disk into the CD-ROM drive, click Thermal Receipt Printer Driver v1.0 file to begin driver installation . b. Select the operation system that you’re using a. Click Next c. Select the driver POS Printer 203DPI Series and d.
  • Page 10 13.1 USB Port Connection ( If your desired port is USB ) We can see many USB ports if there is other USB printer used in this PC. Select the unoccupied USB port and click “Apply” Remarks: Ensure the printer is power on & cable connects to the computer for the 1st time use.
  • Page 11 13.2 Ethernet Connection ( If your desired port is Ethernet ) a. Get the IP address from a Self Printing Test Paper Switch off the printer then press “FEED” button and do not release. Press the “POWER” button at the same time till the “...
  • Page 12 e. choose “ Generic Network Card “ then click “Next “ f. Then you can check the image as above g. Click Finished and we can check the added ports as h. Let’s back to “General” and click “Print Test Page ” above image 11 / 17...
  • Page 13 If the print test page works well, that mean all setting is ok. We can also change the setting by ”Preference“ and “ Device Settings ” ( print method setting ,cash drawer setting, paper cutter setting etc ) 13.3 Serial Port Connecting ( If your desired port is Serial ) b.
  • Page 14 d. Back to “ General” and try “ Print Test Page” c. We should refer to the default baud rate from the self If the print test page works well, that mean all setting is test page and input the same baud rate above or there will be error in the printing.
  • Page 15 e. Once the Bluetooth printer is found. You can see it f. Choose “Let me choose my own passkey”, then enter listed on the screen, here, for example, Bluetooth “0000”(this is factory default passkey, if you want to printer is successfully found. Please click “-Bluetooth change it, you have to inform us to set the new passkey printer”, click “Next”...
  • Page 16 c. Modify the IP address of the computer, make sure that the printer is in the same network segment, and the subnet mask and gateway should be the same as printer. As shown in below, and then press the "OK d.
  • Page 17 Step 1： Connect the printer, Step 2: Click the “Load” button, and get the printer IP (the default IP address is 192.168.123.100) Step 3: Can be modified the relevant parameter of printers ( IP, Subnet mask, Gateway, MAC), After all the setting are done, please power off and restart the printer.
  • Page 18 Warning: The contents of this manual shall not be changed without consent. We reserve the right to change the products in terms of technology, components, software and hardware. Users may contact the reseller if they need further information about the product. No section of this manual may be reproduced or transmitted in any form or by any means without permission.
