LAND Multi-changer

POS

Operator's Manual

Rev. 1.04 EN

LAND

Money Changer / Token Dispenser

Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash

Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash

Table of Contents

Need help?

Do you have a question about the LAND and is the answer not in the manual?

Questions and answers

Summary of Contents for Alberici LAND

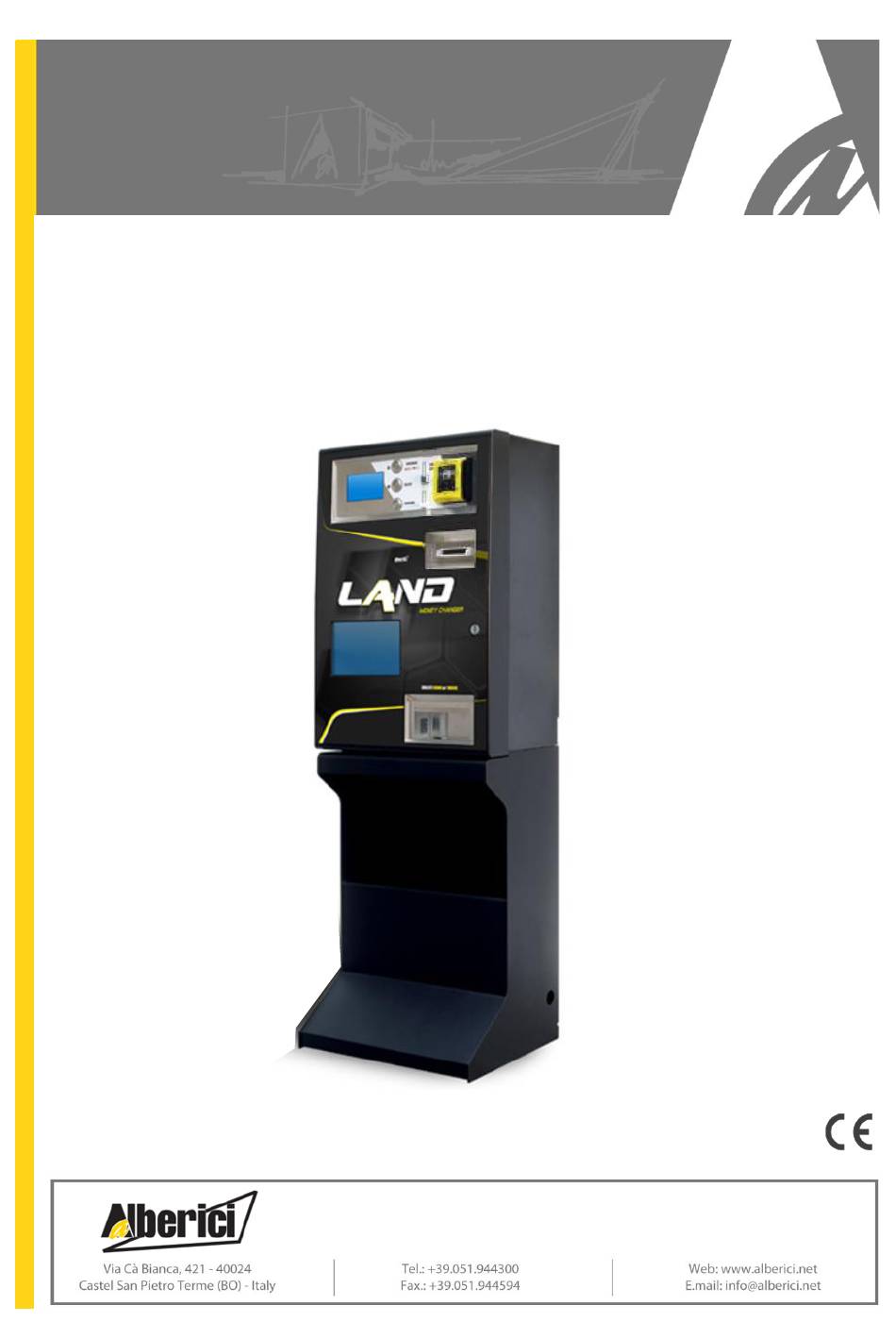

Page 1 LAND Multi-changer Operator’s Manual Rev. 1.04 EN LAND Money Changer / Token Dispenser Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash...
Page 2 Alberici S.p.A. reserves the right to modify, without prior notice and in any way, any part of this manual and the technical specifications of this product, as part of the continuous pursuit of improvement of its products.
Page 3: Table Of Contents
CONTENTS Package content ............................4 Components description ..........................4 Product description ............................ 5 Warning ..............................5 Installation ..............................6 Operation ..............................8 System configuration ..........................10 Messages ..............................22 Cleaning of the Note Validator ........................25 11. Disposal of the product ..........................28 12. Terms of Guarantee ..........................31 13.
Page 4: Package Content
We trust that you will appreciate the quality and performace of the LAND automatic Change Machine. This machine operates by cctalk protocol, the serial communication mode that provides security and precision.
Page 5: Product Description
Notice: Euro is the preset currency. If a different currency is required, please specify when placing your order. (*) The system requires that the B-to-B Alberici SIM card is present into the Hermes module SIM slot, and that a subscription is entered into the ARGO Portal, in order to control the machine via the Internet.
Page 6: Installation
Installation Dimensions...
Page 7 Connect the cable to its socket behind the machine, and hang the latter on the “w” supporting hooks. Fix the LAND unit to the slab by M8 screws through the three “z” threaded holes, unless you plan to remove the machine from the wall every evening to store it in a safer place.
Page 8 The system shall start automatically self-check and the self-setting. At the end, a message will inform that the machine is ready for operation, showing what coin(s) (tokens) value(s) will be paid in exchange for the notes and the coins introduced. CMG- Vers. 1.04 CHANGE DISPENSING LAND INSERT 2,00€ COINS/BANKNOTES 1,00€ 0,50€...
Page 9: Operation
6. Operation Three buttons are available: “SELECT-”, “LANGUAGE/SELECT+”, and “CONFIRM” allow the User to make his choice when the unit is set to operate in MANUAL MODE. These buttons are lit up in blue colour when the unit is in stand-by.
Page 10: System Configuration
Accounts menu - by switching the machine off and on again. 7. System configuration 7.1 Default configuration The device parameters of the LAND Money-change machine / Token dispenser are preset by default as follows: Control Board Parametres Pay-out mode = AUTOMATIC Hopper S11 Parameters Hoppers nr.
Page 11 Restore default configuration If any unwanted variation is made, it will be possible to restore the default configuration as follows: enter menu, scroll by UP and DOWN keys and choose RESTORE DEFAULT CONFIGURATION, then press OK; the message DEFAULT CONFIG. RESTORED will be displayed and the unit shall return to its original setting. NOTICE: the command resets the default PIN code (0000) .
Page 12 7.2.1 I POS T NSTALLING THE ERMINAL Depending on the type of POS that the machine has been requested, please find the relevant interface cable among the accessories (inside the cashbox): IF for VPOS Touch Nayax IF for WORLDLINE VALINA IF for PAYTER Connect the 4p end of the POS Interface cable to the TTL1 (J5) socket of the main pcb...
Page 13 7.3 Menu functions 7.3.1 S URF THE Locate the in-line 3 button-keys on the p.c. board rear side. Get access to the menu by holding the three buttons pressed at the same time for 5 seconds. “OK” key confirm selection “+”...
Page 14 SHOW ACCOUNTS TOTALS IN: 50,00 € TOTALS OUT: 50,00 € BANKNOTES IN: 45,00 € (*) Line available only if BANKNOTES OUT (*): 00,00 € the unit is equipped with Banknote Recycler. COINS IN: 5,00 € COINS OUT HP1 : 21,00 € (**) Line avaiable only if COINS OUT HP2 : 5,00 €...
Page 15 (*) When erasing the partial accounts, the existing record of the LAST PARTIALS cancelled (cf. 7.3.4 Show Accounts) gets replaced by the latest values deleted (sum PARTIAL ACCOUNTS of banknotes and coins, IN and OUT). In addition, all the recorded data regarding the CANCELLED (*) Refill records are reset as well.
Page 16 AZZ. CONTABILITA’ RESET ACCOUNTS RESET THE REMAINING CREDIT: ENABLE iii. By accessing the RESET ACCOUNTS Menu and confirming the line named RESET TURN FIXED RESET OF THE REMAINING CREDIT OFF/ON TIME OUT BY MENU (choose the option RESET BY MENU) . The line”...
Page 17 7.3.6.1 Set up Peripheral Units This section allows to set which banknote and coin denominations must be accepted; if POS device is included, its operation can be enabled or disabled by this function. COIN ACCEPTOR: PRESS OK NOTE VALUE (*) PRESS 0K (*) Only if the Note Recycler is connected...
Page 18 7.3.6.1.C POS T NABLE ERMINAL IF PRESENT Highlight the POS ENABLE line and press OK to modify its status: the cursor will highlight the present status of the Terminal: make use of the “+” or of the “-“ button-key to enable or disable it. Press OK to return to the ENABLE POS function, and press “+”...
Page 19 MODE: AUTOMATIC To transform the setting to MANUAL 2P, press the “+” key or the “-“ key. The MANUAL 2P mode allows the following: - when the Pay-out Table is disabled: 1) to select the type of coin or token denominations that he wishes, if hoppers contain only tokens or only coins; 2) to select how many tokens he wants to obtain, if hopper 1 contains Tokens and hopper 2 contains coins.
Page 20 PLEASE NOTICE: if the Note Recycler is part of the machine, this section will offer as well the possibily to set the note denominations to be recycled, choosing them among the accepted ones. The default setting for the Note Recycler is 50 € / 20 €. Press first “- “/ “+” to move the highlighted combination, then press “OK”...
Page 21 If ENABLED, it will be possible to set the table; if DISABLED, and the machine is set to AUTOMATIC mode, the system will pay out balanced quantities of pieces from each hopper; if DISABLED, and the machine is set to MANUAL mode, the system will prompt the User to choose which coin denomination/token type (= from which hopper) he wishes to receive as change for the amount introduced.
Page 22 Even the pattern alongside could be programmed LEVEL with full rights, as well as other legitimate 1,00 € combinations, irrespective of whether the hoppers 2,00 € contain tokens or coins. 5,00 € E.g.: 2 € can be paid out as 2 x 1€, or 1€ + 10,00 €...
Page 23 Nine (9) levels can be set for the amounts introduced by Users. Such amounts must be entered in the box right of the LEVEL 1, …, LEVEL 9 legends. For each of the 9 levels,3 different combinations can be programmed. HOW IT WILL WORK AFTER SETTING THIS TABLE: when the User will introduce the relevant amount of money, he will be prompted to choose among the 3 programmed combinations associated to that amount (see section 6.1).
Page 24 When confirming the exit arrow icon (>) after Level 9, the system will save all the programmed settings. - If the Operator wants to make available only a limited number of combinations options (ex. only 2 options), he will leave 0 in all the boxes of the row no. 3. - If the Operator wants to set only a limited number of levels (ex.
Page 25 Press “OK” to open the following LEVEL 2. Repeat as above using a higher value and the relevant 3 possible combinations, then shift to LEVEL 3, choosing 3 possible combinations out of all the valid ones for the amount set in Level 3, and so on, until last level (LEVEL 10) is completed, e.g.: …...
Page 26 RESTORE DEFAULT CONFIGURATION 7.3.8 To use this sub-menu it If the entered PIN is not is necessary to enter correct, the User is given the PIN code: another 4 tries before the use first the “+” and “-“ board gets blocked-up by keys to set each figure, its security interlock.
Page 27: Messages
After the 5 error, the machine will be blocked, while the display will show two codes. Please send such codes to Alberici Assistance, to get reset information. Once the new PIN has been entered, the machine will return to the upper menu.
Page 28 and back, means that the cash available for paying out the remaining amount has run out. Therefore it is necessary to insert enough money to reach (at least) the next available price, so that the machine can dispense the correspondent quantity of tokens and cancel the remainder amount. If this is not possible, and an Operator is present, he could switch off the machine, fill the hoppers, and power it on again: the remaining credit shall be paid out.
Page 29 (*) Dip-Switch SW8 ON Please wait for automatic recovery, without turning off the unit. (**) Dip-Switch SW8 OFF Any attempt at “fishing” will cause the note to be rejected, without showing any visible signal. Attempt Validator reaction Do as described below Remains in service Remains in service >...
Page 30: Cleaning Of The Note Validator
Do not use organic detergents (such as alcohol, thinners, petrol, a.s.o.). Sensors Silicon Dragging Rollers Elastic matching wheels After cleaning, it is advisable to calibrate the OryOne by using the Alberici Calibration Card AA-0245 (see OryOne manual, Chapter 7. Calibration).
Page 31 9.1.2 Clearing jammed banknotes CAUTION! Turn off power before opening its upper lid. Open the top cover by pressing D, and pull out the stuck banknote (as well as any other objects that will hinder the transit of the banknotes). 9.2 Vega-RC WARNING! Do switch power off when servicing the machine!
Page 32 9.2.2 Removing jammed banknotes Retrieving Banknotes Pull the Release Handle to free the Cash Box from the Frame and pull the Cash Box forward. Rotate the Thumb Lock Knob counterclockwise and drag down the Cash Box Door With the Cash Box Door open, retrieve the Banknotes Clearing Banknote Jams Do not power up the validator during this operation.
Page 33: Disposal Of The Product
- detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
Page 34 Spare parts List LAND...
Page 39 NOTICE Alberici S.p.A. reserves the right to make changes to the equipment described and to its technical specifications at any time and without notice, in pursuit of the continual improvement of its product.
Page 40 Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 40024 Castel San Pietro Terme Tel. + 39 051 944 300 http://www.alberici.net (BO) – ITALY Fax. + 39 051 944 594 info@alberici.net...
