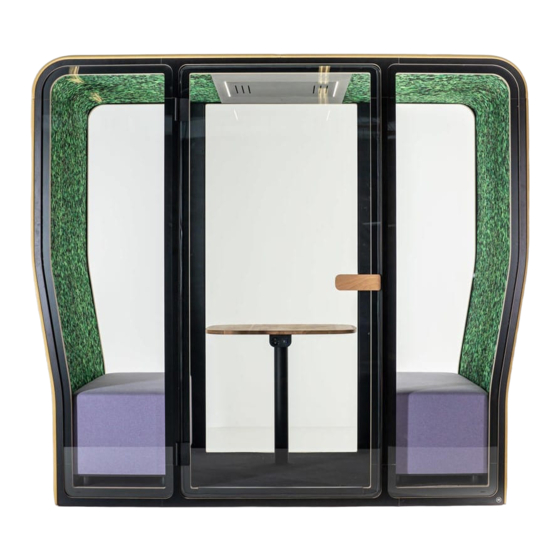

BuzziNest Pod
INSTALLATION MANUAL
US

Advertisement

Table of Contents
loading

Related Manuals for BuzziSpace BuzziNest Pod

Summary of Contents for BuzziSpace BuzziNest Pod

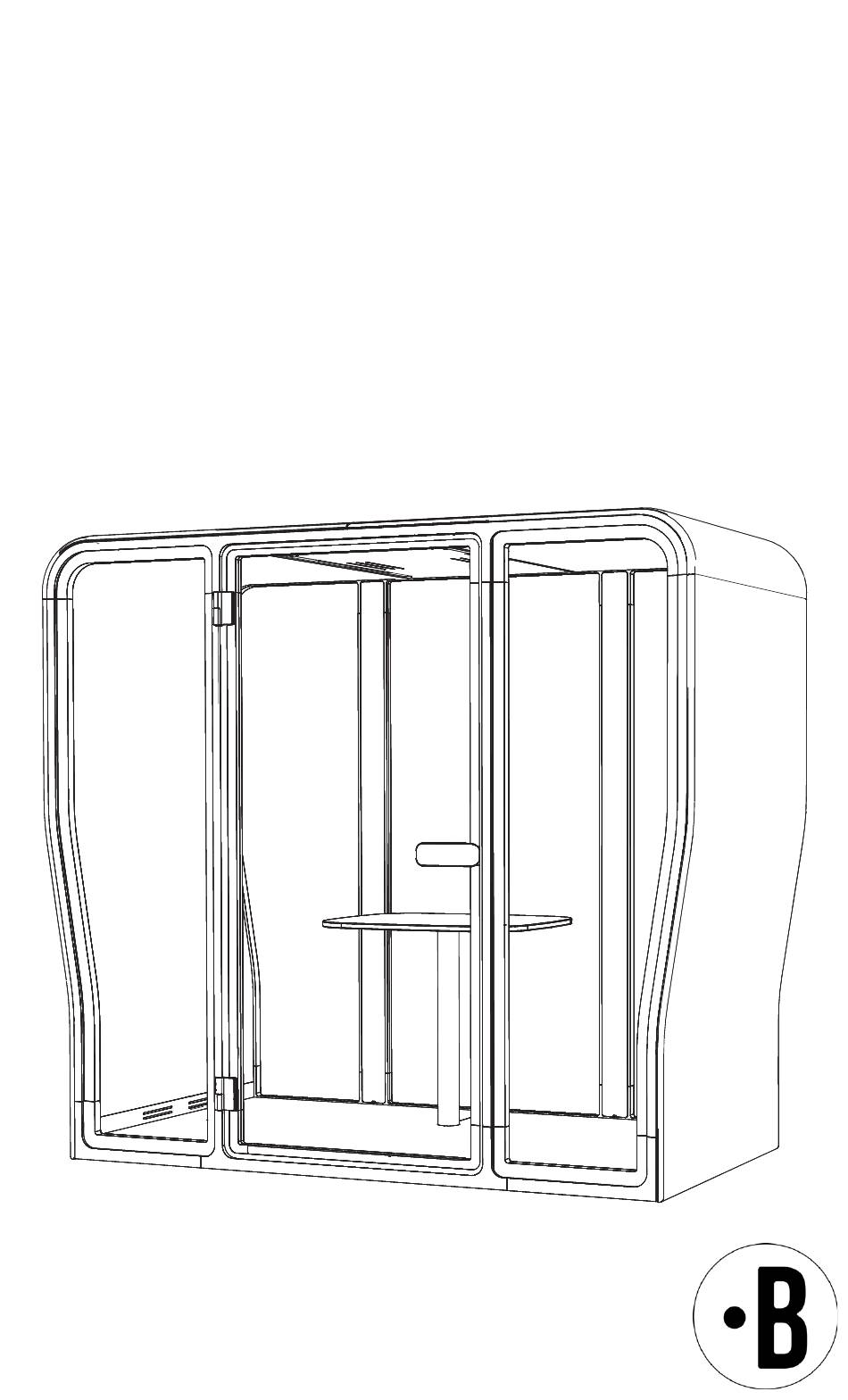

  • Page 1 BuzziNest Pod INSTALLATION MANUAL...

  • Page 2: Table Of Contents

    Content Foreword..................3 Fire Safety..................4 Electrical Safety...................4 Installation, maintenance and disassembly...........5 Use....................7 Markings..................9 Wiring Diagram................11 Assembly instructions..............12 Move Pod .................71...

  • Page 3: Foreword

    The information in this manual is valid at the time of publication and corresponds to the product at the time of delivery. Intended use BuzziNest Pod is intended for short term indoor commercial and household use by four (4) persons at a time. ...

  • Page 4: Fire Safety

    Fire Safety WARNING! To reduce the risk of burns, fire, electric shock or injury to persons, obey the following: In case of a fire inside the booth, disconnect the power cord when it’s safe to do so. The power cable serves as a power cut device for pluggable equipment.

  • Page 5: Installation, Maintenance And Disassembly

    WARNING! To reduce the risk of burns, fire, electric shock or injury to persons, obey the following: Connect the power cord to a properly grounded outlet only. Keep the power cord of the product away from the heated surfaces. Do not use the BuzziNest Booth if you notice any defects or damage to the electrical equipment.
  • Page 6 Wear safety goggles when installing, maintaining or disassembling the product. Read and follow closely the instructions. Plan your work and work your plan. Local rules and regulations with regards to workplace safety must be respected. Keep the work area clear of debris during installation, maintenance or disassembly.

  • Page 7: Use

    The maximum load for the BuzziNest Pod Table is 110 lbs (50 kg) The maximum load for the BuzziNest Cube is 300 lbs (136 kg) WARNING! To reduce the risk of burns, fire, electric shock or injury to persons, obey the following: Read and follow closely the instructions before using the product.
  • Page 8 Do not insert any objects or drop anything into any of the unit’s openings unless it’s instructed in the manual. Do not use outdoors Do not use where aerosol (spray) products are being used or where oxygen is being administered. No load allowed on top of the product, do not climb onto the product.

  • Page 9: Markings

    Markings BuzziNest Pod Label Label Text Product/ Produit: BuzziNest Pod Product/ Produit: BuzziNest Pod Input/Entrée: 120V AC 15A 50-60Hz Input/Entrée: 120V AC 15A 50-60Hz Manufacturer/Fabricant: BuzziSpace Web: www.buzzi.space Email: info@buzzi.space Made in Lithuania / Fabriqué en Lituanie Manufacturer/Fabricant: BuzziSpace Evaluated to ASTM E84, smoke developed index over 450. / Évalué...
  • Page 10 SN/N° de série: . SN/N° de série: . MANUFACTURE DATE / DATE DE FABRICATION: MM/YYYY MANUFACTURE DATE / DATE DE FABRICATION: MM/YYYY WARNING Risk of fire and shock! Use Only SJT type 16 WARNING Risk of fire and shock! AWG cord. See installation manual for Use Only SJT type 16 AWG cord.
  • Page 11 BuzziNest Booth with optional table Label Label Text Product/ Produit: BuzziNest Pod Product/ Produit: BuzziNest Pod Input/Entrée: 120V AC 15A 50-60Hz Input/Entrée: 120V AC 15A 50-60Hz Manufacturer/Fabricant: BuzziSpace Web: www.buzzi.space Email: info@buzzi.space Made in Lithuania / Fabriqué en Lituanie Manufacturer/Fabricant: BuzziSpace Evaluated to ASTM E84, smoke developed index over 450.

  • Page 12: Assembly Instructions

    électrique. Code du kit : 881 WARNING Risk of injury WARNING Risk of injury The maximum load for the BuzziNest Pod Table is 110 lbs (50kg) The maximum load for the BuzziNest Pod Table L’ AVERTISSEMENT Risque de blessure...

  • Page 13: Wiring Diagram

    Wiring Diagram Note: Only a certified electrician compliant with all local rules and regulations can install the same metal conduit cable.
  • Page 14 BuzziNest Pod  2 PERS. Excluded 3 mm 5 mm 5 mm 6 mm 8 mm Included Black M8 x 30 mm M8 x 40 mm M8 x 20 mm Blue Yellow M8 x 50 mm Orange 4 x 16 mm...
  • Page 16 1x hardwired kit 881...
  • Page 17 No Table Optional Table and electrification Green M10 x 20 mm Green M10 x 40 mm Pink 4,8 x 19 mm...
  • Page 19 6 mm Turquoise M10 x 40 mm Min. 1m...
  • Page 20 8 mm ...
  • Page 21  Back Front M8 x 30 mm...
  • Page 23  M8 x 65 mm M8 x 50 mm Yellow White M8 x 65 mm...
  • Page 24 ...
  • Page 25  M8 x 65 mm M8 x 50 mm Yellow White M8 x 65 mm...
  • Page 26 M8 x 30 mm...
  • Page 28  M8 x 65 mm M8 x 50 mm Yellow White M8 x 65 mm...
  • Page 30  M8 x 65 mm M8 x 50 mm Yellow White M8 x 65 mm...
  • Page 33 White Grey M8 x 65 mm M10 x 25 mm...
  • Page 35 Grey White M8 x 65 mm M10 x 25 mm...
  • Page 37  M8 x 65 mm M8 x 50 mm Yellow White M8 x 65 mm Pink 4,8 x 19 mm M8 x 30 mm...
  • Page 38 90° 90°...
  • Page 39 6 mm...
  • Page 40 Purple 4 x 45 mm...
  • Page 41 Optional Hardwired 1x hardwired kit 881 Hardwired Hardwired Hardwired...
  • Page 42 Hardwired Hardwired Fit conduit to hard wired plate. (conduit not provided) Make relevant wire splices. Push wires into enclosure. Secure with bolts. (splices supplied by electrician) 3 mm...
  • Page 43  6 mm M8 x 30 mm...
  • Page 51 Blue M8 x 20 mm...
  • Page 52  5 mm Black M8 x 40 mm...
  • Page 53 90° 5 mm...
  • Page 54 ...
  • Page 55 No table P .56 Optional Table + Electrification P .61...
  • Page 56 No table 5 mm Orange 4 x 16 mm 5 mm Orange 4 x 16 mm...
  • Page 57 Purple 4 x 45 mm...
  • Page 58 Purple 4 x 45 mm Purple 4 x 45 mm...
  • Page 60 Non-Hardwired Non-Hardwired Hardwired Hardwired Connect to the mains Safety Notes The cable must be installed so there is no tripping hazard. Adequate cable restraints must be used to secure the connection to the mains. Requires certified electrician compliant with local AHJ regulations to install hard wired conduit cable.
  • Page 61 Optional Table + Electrification...
  • Page 64 6 mm Green M10 x 40 mm...
  • Page 65 6 mm Green M10 x 20 mm Pink 4,8 x 19 mm...
  • Page 66 Purple 4 x 45 mm...
  • Page 67 5 mm Orange 4 x 16 mm 5 mm Orange...
  • Page 68 Purple 4 x 45 mm Purple 4 x 45 mm...
  • Page 69 15 a...
  • Page 70 Non-Hardwired Non-Hardwired Hardwired Hardwired Connect to the mains Safety Notes The cable must be installed so there is no tripping hazard. Adequate cable restraints must be used to secure the connection to the mains. Requires certified electrician compliant with local AHJ regulations to install hard wired conduit cable.

  • Page 71: Move Pod

    Non-hardwired only! Move Pod 8 mm...
  • Page 72 8 mm ...
