Summary of Contents for GIGA-TMS SmaFinger SF600

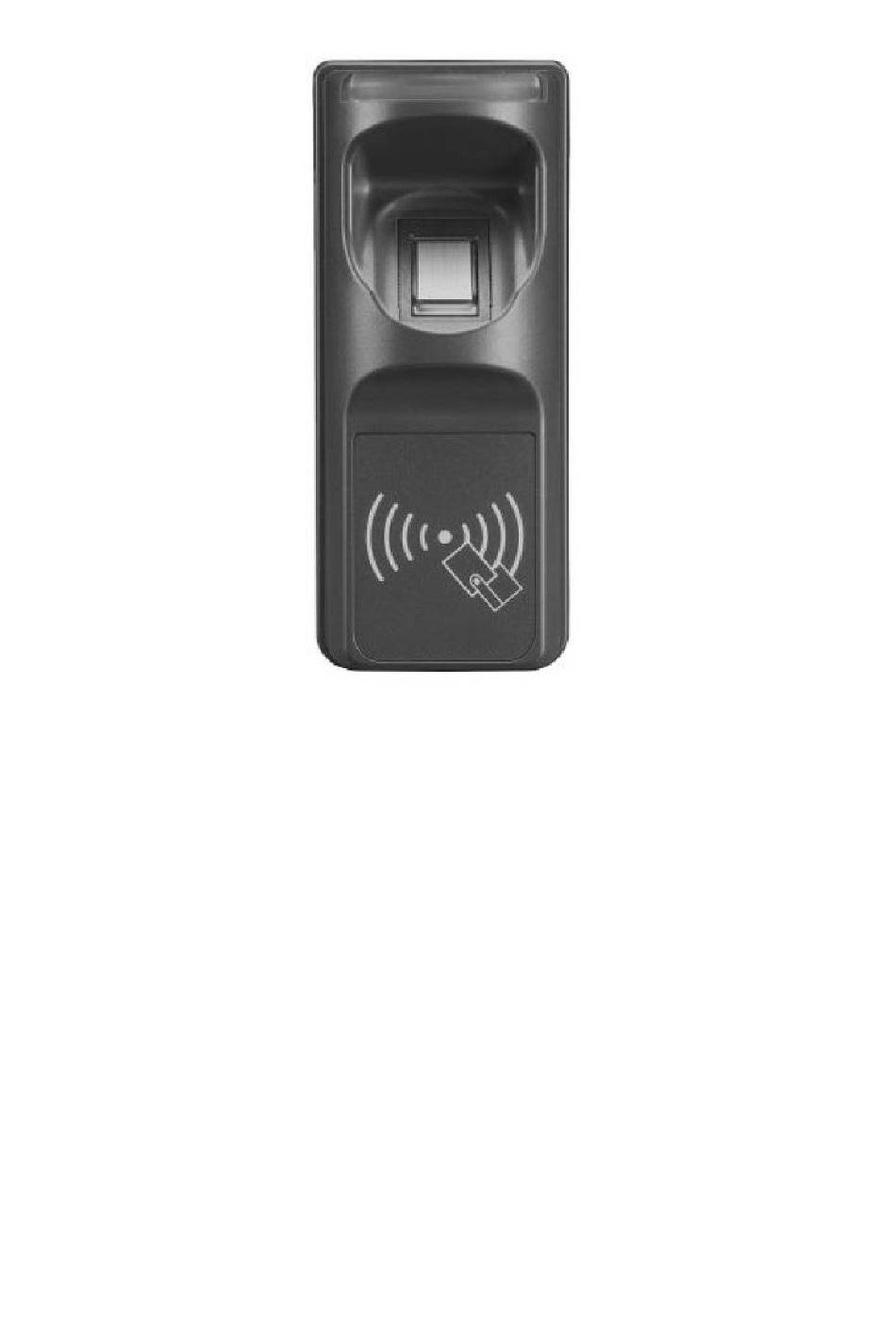

- Page 1 ® SmaFinger Advanced Reader Quick Start REV.B June 10, 2008...
-
Page 2: Table Of Contents
SF600/610/601 Specifications: Application Offline Fingerprint Reader Enroll Mode RS232 or Enroll Card Fingerprint Capacity 1900 Fingerprint Only Fingerprint Validation Performance Friendly <1 sec (1:1) Identification speed <2 sec (1:N) RS232 : 9600bps Interface Wiegand: 26 bits ABA-TK2: 10 Digital Codes Power Consumption Max. -
Page 3: Aba-Tk2
Output Format Wiegand (Standard 26 bits) UID (6 Hex Code) EVEN PARITY ODD PARITY Pulse Timing Data 1 Signal Data 0 Signal Symbol Description Typical Time Pulse Width Time 100us Pulse Interval Time 1.9ms ABA-TK2 10 LEADING ZERO UID (10 DIGITS) 10 LEADING ZERO The timing for Card Present, Clock (Strobe) and Data , example as below: CARD PRESENT... -
Page 4: Red
Connection Example for ABA-TK2: HOST/Terminal 9~12VDC 5VDC Pull high resistor 4.7K~47K Ohm White (Clock) Green (Data) SF600 Orange (Card Present) Black Connection Example for Wiegand: HOST/Terminal 9~12VDC 5VDC Pull high resistor 4.7K~47K Ohm White (Data 1) Green (Data 0) SF600 Orange Black Connection Example for RS232:... - Page 5 Example for RS485 Connection (Optional) note 3 Note: 1. For RS485 network must use USB485A converter. 2. End of wire must connect 120 Ohm terminal resistor. 3. The reader ID is up to 32. Important must have procedure before installation. (Before connect reader, please setup the reader ID, as below figure.) Example for Door Lock Connection (for Normal-opened type of Door Lock) Power Supply...
- Page 6 Applying Manager Enroll Card for enrollment under different access mode 1. Access Mode: Finger Only Step 1 In Standby mode the LED is blue on, you can read Standby Manager Enroll Card to enter the enroll mode Read Manager Enroll Card Step 2 In enroll mode the LED is green blinking, you can read Read Card...
- Page 7 2. Access Mode: Card Only Step 1 In Standby mode the LED is blue on, you can read Standby Manager Enroll Card to enter the enroll mode Read Manager Enroll Card Step 2 In enroll mode the LED is green blinking, you can read Read Card the User Card to store the card UID or Sector Data and User’s Card...
- Page 8 Applying Manager Delete Card for deletion Step 1 In Standby mode the LED is blue on, you can read Standby Manager Delete Card to enter the delete mode Read Manager Delete Card Manager Card Read Card or Put Step 2 user's fingerprint User’s Card In delete mode the LED is red blinking, you can read the...
- Page 9 Replacing a new Manager Enroll Card and Manager Delete Card (Only for SF610/SF601) Step 1 1. Power-Off the SmaFinger Reader. 2. To put on the Reset-Pin Jumper. 3. Power-On the SmaFinger Reader. Replacing Mode Step 2 In Replacing Enroll Card Mode. When the green LED is blinking, please read a new Enroll card to replace the old Manager Enroll Card.
- Page 10 Order Information Part Number Include Qty. Descriptions SF610-00 SF610 Reader SmaFinger Mifare Sector Reader KIT-CRD-600 Offline Programming Kit ® KIT-CRD-600 Manager Enroll Card Mifare 1K Card ® Manager Delete Card Mifare 1K Card ® User Card-A Mifare 1K Card ® User Card-B Mifare 1K Card...
- Page 11 Required Items L SHAPE SIX ANGLE SPANNER Buzzer Hole Plate BOTTOM PLATE M3*6L 2PCS PLASTIC PLUG FOR WALL M4*15L 3PCS SCREW BAG BOTTOM PLATE LABEL Secure Mounting Installation Attach the bottom plate label on the target position. After fixing SmaFinger with attached screws Drill the holes to match the bottom plate then fix (using the L-shape spanner) SmaFinger reader.
- Page 12 CAUTION: The crossed out wheeled bin label that can be found on your product indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health please separate this product from other waste streams to en-sure that it can be recycled in an environmentally sound manner.
