Volt Me ter fo r L i Po /L i Fe/L i -I on B at t er ie s
INSTRUCTION MANUAL

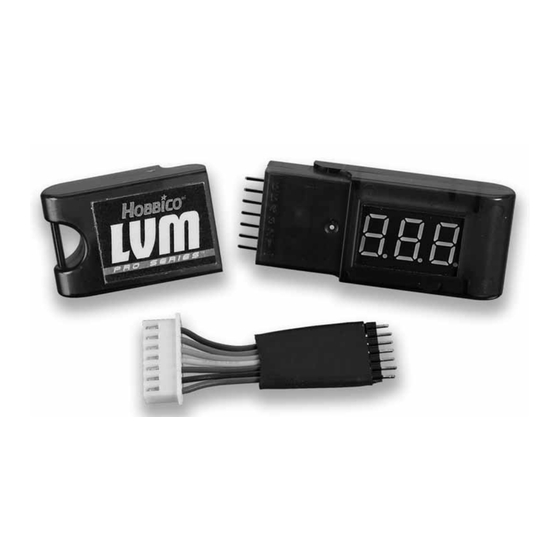

Thank you for purchasing the Hobbico Pro Series Lithium VoltMeter. This
device measures and displays individual cell voltages and overall pack voltage
of 2– 6S Lithium Polymer, Lithium Iron Phosphate and Lithium Ion batteries on
an LED display. The LVM is very easy to operate. Simply plug in the battery! The
LVM is small enough to fi t anywhere and has a loop allowing it to be attached
to a wrist strap, neck strap and/or key chain. Includes a 6S in-line adapter for
®
FlightPower
and Thunder Power batteries.
Advertisement
Table of Contents
Summary of Contents for LVM Hobbico Pro Series
- Page 1 LED display. The LVM is very easy to operate. Simply plug in the battery! The LVM is small enough to fi t anywhere and has a loop allowing it to be attached to a wrist strap, neck strap and/or key chain. Includes a 6S in-line adapter for ®...
- Page 2 LVM will not display any information. 1. For ElectriFly style balance connectors: Simply plug the balance lead from the battery directly to the LVM. The black wire on the balance lead should be connected to the (–) pin on the LVM.
- Page 3 2. For FlightPower/Thunder Power batteries: The included adapter will need to be installed prior to measuring the battery voltage. First connect the adapter to the LVM. Then connect the balance lead from the battery to the LVM. OPERATING 1. Once the proper connections have been made, the LVM will briefl y read “dsp”...
- Page 4 2 YEAR LIMITED WARRANTY *USA and Canada Only Hobbico warrants this product to be free from defects in materials and workmanship for a period of two (2) years from the date of purchase. During that period, Hobbico will, at its option, repair or replace without service charge any product deemed defective due to those causes.
