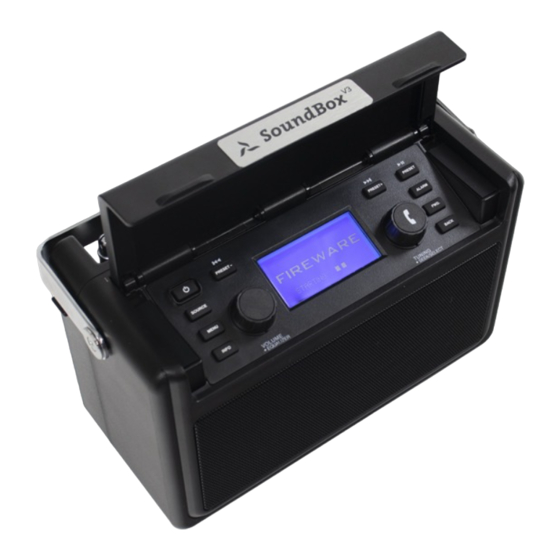

- Page 1 FireWare Soundbox V3 User Manual SoundBox 015-085-006 SoundBox FireWare Soundbox V3 www.FireWare.nl...
-
Page 2: Table Of Contents
Safety measures and warnings Overview of the parts and technical information Operation of the UNDOK app Bluetooth mode Making a playlist Other FireWare Soundbox V3 features Malfunctions 10. Care and maintenance 11. Waste disposal 12. Warranty provisions 13. Declaration of Conformity 14. -
Page 3: Introduction
Congratulations on the purchase of your FireWare Soundbox V3! The FireWare Soundbox v3 is splash proof and has a very solid design. The easy controls and excellent sound quality offers added value to any exercise. With the special Undok App (for Apple and Android) the FireWare Soundbox v3 can be controlled remotely. -
Page 4: Overview Of The Parts And Technical Information
User Manual FireWare Soundbox V3 Overview of the parts & technical information Parts: FireWare Soundbox v3 with charger 015-085-006 Plastic box (30 x 20 x 23,5 cm) 038-091-015 Technical information: Water rating IP65 Dimensions (W × H × D) 250 mm (9.84 in.)× 160mm (6.29 in.) ×... - Page 5 User Manual FireWare Soundbox V3 Power Requirements: AC adaptor 230 volts AC, 50Hz only (use only supplied adaptor) Built-in Lithium Polymer Battery: 11.1V, 4000mAh Frequency Coverage: 87.5 - 108MHz 174.928 - 239.200 MHz Connectivity Wifi Dual modes to support 2.4GHz and 5GHz WiFi system 802.11b and 802.11g supported with WEP and WPA/WPA2...
- Page 6 User Manual FireWare Soundbox V3 CONTROLS Button overview Button overview 1. Info 8. Tuning / Seek / Select / Phone control 2. Menu 9. Preset + / Skip forward 3. Source 10. Preset / Play / Pause CONTROLS 4. Power 11.
-
Page 7: Use
(at room temperature with the Soundbox V3 in Standby mode) Microphone 1. Open the rubber cover marked ‘DC in’ located at the rear of the FireWare Soundbox v3. 2. Plug the cable from the mains adapter into the DC input socket. - Page 8 Charging time from empty to full battery is approximately 6-7 hours (at room temperature with the Soundbox V3 in Standby mode). The Soundbox V3 can be charged in Standby mode as well as in On mode while playing music. While playing music the charging time will be longer than in Standby mode.
- Page 9 Place the FireWare Soundbox v3 on a flat surface and plug the cable from the mains adaptor into the DC input socket located at the rear of the Soundbox V3 (marked ‘DC in’) ensuring that the plug is pushed fully into the socket. Plug the mains adaptor into a wall socket and switch on the socket.
- Page 10 To continue to setup the FireWare Soundbox v3, press the Power button. If this is the first time that you use the Soundbox V3 (or after a Factory Reset) the display will show ‘Setup wizard’ and ‘YES’ will be highlighted on the screen.
- Page 11 Date/Time menu shown up with your desired language. Next, the way in which the FireWare Soundbox v3 updates its clock is set. A menu allowing you to specify the auto-update option for the clock will be shown. The ‘Update from Network’ or “Update from DAB”...
- Page 12 After setting the Keep Connected option, the display will show a list of supported WiFi regional options. Rotate the Tuning/Seek/Select control to highlight the required region (for the European countries, choose ‘ Europe’), and then press the control to make the selection. Soundbox V3 will then scan for available WiFi networks. FireWare Soundbox V3...
- Page 13 This is described in ‘Manual Network Configuration’. If your network name is being broadcast, and it was not found, then try re-scanning (press the Back button), and if necessary try moving Soundbox V3 to a location closer to your access point / router. www.FireWare.nl...
- Page 14 User Manual FireWare Soundbox V3 When the SSID for the wireless network you wish to connect to is highlighted on the screen, press the Tuning/Seek/Select control. If WiFi Protected Setup (WPS) was indicated, you will see an additional menu at this point, otherwise proceed to the next steps.
- Page 15 User Manual FireWare Soundbox V3 If your network is configured without an encryption key, the screen should say ‘Connecting...’, and then ‘Setup wizard completed’. Press the Tuning/Seek/Select control to exit the setup wizard and show the Main menu. If this is the case then you have successfully connected Perfectpro Audisse to your network.
- Page 16 User Manual FireWare Soundbox V3 The three controls on the right-hand side of the screen have special functions. You can quickly access these by pressing the Info button and then using the Tuning/Seek/Select control as needed: select ‘BKSP ‘ to erase a character just entered (long press to clear); select ‘OK ‘ when the complete key has been entered select ‘CANCEL ‘...
-
Page 17: Operation Of The Undok App
Make sure the phone or tablet is connected to the same WiFi network as the FireWare Soundbox v3 On the FireWare Soundbox v3 use the Tuning button to go to system settings > network > view settings Then use the Tuning button to scroll to IP address... - Page 18 Using the slider at the bottom of the screen the volume can be turned up or down by dragging the ball to the left (down) or right (up). Use the Back button on the FireWare Soundbox v3 to go back to the main menu. Note: Multiple FireWare Soundboxes V3 can be controlled simultaneously using the Undok app. To enable this repeat the above steps for the relevant FireWare Soundbox v3.
-
Page 19: Bluetooth Mode
User Manual FireWare Soundbox V3 Bluetooth mode The Bluetooth mode on your FireWare Soundbox v3 allows you to play audio, play sound from video files and stream music from Bluetooth capable devices such as your mobile phone, computer, tablet etc.. - Page 20 User Manual FireWare Soundbox V3 Select “Perfectpro Audisse” to cause your phone, tablet or PC to pair with your sound system and to establish a connection. Once the connection is established, the Bluetooth icon on the LCD will stop flashing and will remain on.
-
Page 21: Making A Playlist
FireWare Soundbox V3 Making a playlist With the FireWare V3 you have the option to create a playlist for your staging. Press the power button to turn on the FireWare Soundbox v3 Press the Source button to select Music player Use the Tuning button to select USB playback and press the Tuning button to confirm. -
Page 22: Other Fireware Soundbox V3 Features
Note: When using Internet Radio it is not necessary to erect and extend the metal telescopic antenna. The WiFi antenna is built into the housing. Press the Power button to switch on the FireWare Soundbox v3. Then press the Source button to select the Internet radio mode display. - Page 23 Rotate the Tuning/Seek/Select control to highlight your chosen radio station and then press the control to enter your selection. The display will show “Connecting...” while the FireWare Soundbox v3 connects to the new station. The station should then start playing. Adjust the volume as needed.
- Page 24 Rotate the Tuning/Seek/Select control until “Shared media” is highlighted and press the con- trol to select. The FireWare Soundbox v3 will scan for all available UPnP servers. It may take a few seconds for the FireWare Soundbox v3 to complete its scan. it will display “<Empty>” if no UPnP servers are found.
- Page 25 During the scanning process, as new stations are detected the station counter will increase and the stations will be added to the list which is stored in the Soundbox V3. The bar graph indicates the progress of the scan. When scanning is completed the radio will list the stations found (in numeric-alpha order 0..9...A...Z), unless it has previously been tuned to a DAB station.
- Page 26 User Manual FireWare Soundbox V3 Press the Tuning/Seek/Select control to select the highlighted station. The display may show “Connecting...” while the radio re-tunes. Use the Volume control to set the sound level as needed. If the station list is still empty after the scan the display will show Service not available””...
- Page 27 Press the Source button as needed to select FM radio mode. Rotate the Tuning/Seek/Select control in a clockwise direction. The displayed frequency will increase. Press the Tuning/Seek/Select control to carry out an autotune. Your FireWare Soundbox V3will scan up the FM band from the currently displayed frequency and will stop scanning when it finds a station of sufficient strength.
- Page 28 User Manual FireWare Soundbox V3 The display will show the frequency of the signal which has been found. If RDS information is available, after a few seconds the display will show the FireWare Soundbox v3 station name. If you only hear hiss or interference, simply press the Tuning/Seek/Select control to scan further.
- Page 29 For example, if you are playing P2, the Preset -/Skip Backward button will recall the P1 station if it exists. Note: If the P1 station is not existing in the preset menu, the FireWare Soundbox V3 will directly search for the previous available station in the list, then play.
- Page 30 User Manual FireWare Soundbox V3 Note: If the P3 station is not existing in the preset menu, the Soundbox V3 will directly search for the next available station in the list, then play. Note: If there is no available station in the preset list, the sound system will display a pop-up screen with an announcement “Preset empty”.
- Page 31 User Manual FireWare Soundbox V3 Factory Reset If you wish to completely reset the FireWare Soundbox v3 to its initial state this may be performed by following this procedure. By performing a factory reset, all user entered settings will be erased.
- Page 32 User Manual FireWare Soundbox V3 A full reset will be performed and the FireWare Sounbox V3 will restart as if first plugged in. The DAB stations list together with any preset stations will be erased and your wireless network connection details will be lost. All configuration settings will be restored to their defaults, the clock and alarms will be reset.
-
Page 33: Malfunctions
User Manual FireWare Soundbox V3 Malfunctions Problems Oplossingen My Soundbox V3 does not respond to my key • Charge the Soundbox V3. presses. There is interference on the audio when • Remove the mains supply from the from the listening to the radio. I cannot hear the audio DC-in Jack port, and move the Soundbox V3 well or at all. -
Page 34: Care And Maintenance
Warranty Provisions The FireWare Soundbox V3 has a two-year warranty after purchase date against product and manu- facturing faults. Damage as a result of careless acting is not refunded. Repairs require expertise. It is therefore highly recommended to return the appliance to FireWare in the event of a defect. -
Page 35: Declaration Of Conformity
User Manual FireWare Soundbox V3 Declaration of Conformity Declaration of Conformity Manufacturer: FireWare bv De Stek 5 1771 SP Wieringerwerf The Netherlands FireWare declares that the FireWare Soundbox v3, an audioplayer for staging, article number 015- 085-006 is in compliance with the following EG/EU guidelines: 2014/53/EU and 2011/65/EU. - Page 36 FireWare Soundbox v3 FireWare Soundbox V3 www.FireWare.nl...
- Page 37 FireWare Soundbox v3 www.FireWare.nl FireWare Soundbox V3...
- Page 38 FireWare Soundbox V3 www.FireWare.nl...
