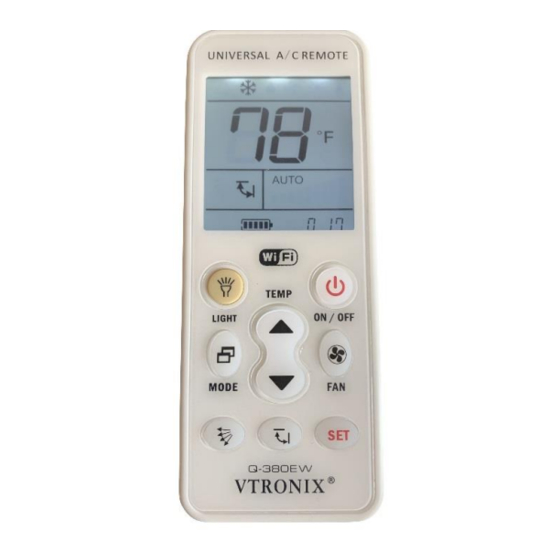

Vtronix Q380-EW Quick Start Manual

Pairing the with your mini split wi-fi enabled mini split remote control

Hide thumbs Also See for Q380-EW:

Download this manual

QUICK START GUIDE

PAIRING THE Q380-EW WITH YOUR MINI SPLIT

WI-FI ENABLED MINI SPLIT REMOTE CONTROL

Need help?

Do you have a question about the Q380-EW and is the answer not in the manual?

Page 1 QUICK START GUIDE PAIRING THE Q380-EW WITH YOUR MINI SPLIT WI-FI ENABLED MINI SPLIT REMOTE CONTROL...
Page 2 THE Q-380 EW NEEDS FIRST TO BE “PAIRED” WITH YOUR MINI-SPLIT (AIR CONDITIONER/HEAT PUMP) WITH A SPECIFIC CODE...
Page 3 CHARGE THE REMOTE. THE BATTERY INDICATOR WILL TELL YOU WHEN IT’S CHARGED (about 4 hours) 2 WAYS TO CHARGE: VIA WALL BASE OR WALL MOUNT (DIRECT PLUG)
Page 4 CHECK TO SEE IF THE BRAND OF YOUR MINI SPLIT IS ON THE CODE LIST. IF IT IS, WRITE DOWN THE SUGGESTED CODE NUMBER OR NUMBERS NEXT TO IT ( 3 DIGIT CODES )
Page 5 . PRESS THE ON/OFF BUTTON AND THE SET BUTTON AT THE SAME TIME UNTIL … . THE CODE NUMBER FLASHES...
Page 6 CODE NUMBER- ADVANCES EACH TIME YOU HIT THE UP ARROW- . ADVANCE THE CODE WITH THE UP ARROW WHILE POINTING AT THE MINI-SPLIT (MAKE SURE THE MINI-SPLIT HAS POWER). IF THERE WAS A SUGGESTED CODE, ADVANCE QUICKLY TO IT. IF YOUR BRAND IS NOT LISTED START AT 000...
Page 7: Code Number
CODE NUMBER WHEN THE UNIT BEEPS, HIT THE SET BUTTON AND TRY THE DIFFERENT FUNCTIONS. IF ALL THE BUTTONS DO NOT WORK AS EXPECTED, PRESS THE ON/OFF BUTTON AND THE SET BUTTON SIMULATANEOUSLY AND ADVANCE TO THE NEXT CODE WITH THE UP ARROW.
Page 8 LOCKING THE CODE: PRESS SET AND MANUAL WIND DIRECTION AT THE SAME TIME. Press again to unlock- TO CHANGE FROM DEGREES FAHRENHEIT TO CELSIUS AND VICEVERSA PRESS DOWN KEY AND SET SIMULTANEOUSLY FOR A FULL COPY OF THE INSTRUCTION MANUAL GO TO: https://vtronix.com/17-mini-split-controls-wireless...
