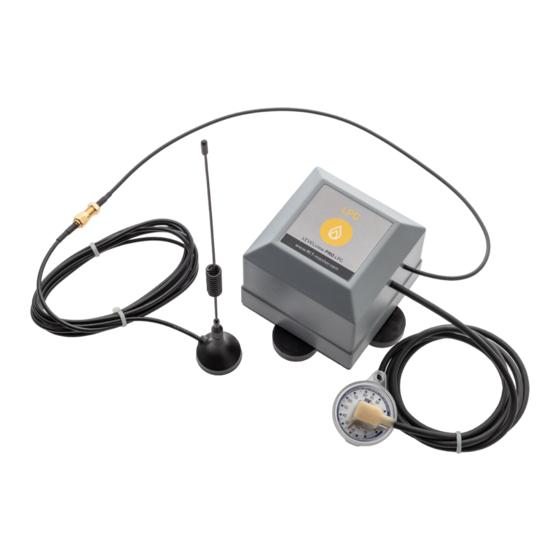

- Page 1 Operating Instructions LEVELview.BASIC.LPG Radio transmitter unit (868 MHz) for fill level monitoring of liquid gas tanks Contactless fill level measurement using Hall effect sensors (magnetic field) Remote Control Technology RCT. Simplify monitoring.
- Page 2 Welcome Welcome Thank you for deciding for this RCT quality product- and the trust that implies. A good choice, because our dedicated team at RCT develops and produces smart, modular remote monitoring systems for a wide range of applications, MADE IN GERMANY. Our promise: With RCT. Simplify monitoring. remote monitoring has become smart, safe, fast and in combination with strong service, very simple for our customers. If you have any questions about assembly, installa- tion or operation or would like further information about our products, please contact your specialist dealer or contact the manufacturer RCT directly (see address on last page). ARTICLE INFORMATION CONTENTS RCT Article-No. 1000079 Included Hardware Name LEVELview.BASIC.LPG Welcome Included • Transmitter Fill level measurement liquid gas • External antenna with...
- Page 3 Radio Only remove these two screws! Hall sensor Transmitter Battery Antenna Float in LPG Tank Fig. 1 | Fill level measurement using a Hall effect sensor Fig. 2+3 | Removing original dial and installing RCT sensor www.rct-monitor.com RCT. Simplify monitoring.
- Page 4 Receiver pack. Then wait around 5 minutes. Fig. 4b | Transmit, test signal at receiver location and place the receiver Changing the battery: Periodical battery changes can be carried out without waiting time. Normal operation mode Cyclical notifications: The data transfer is carried out every 20 minutes. A message contains the Signal every current fill level and the battery level. 20 minutes Fig. 4c | Transmitting and receiving www.rct-monitor.com RCT. Simplify monitoring.
- Page 5 There should be a distance of at least 20 cm between significantly restricted by the metal surroundings, the device and the signal generator. Otherwise thus reducing the transmission range. there is a risk that the magnetic field of the sensor system will be affected by the fastening magnets and the measurement result will bedistorted. (Fig. 5) min. 20 cm Transmitter Signal Fig. 6 | Attaching the antenna generator fastening magnets Fig. 5 | Attaching the transmitter www.rct-monitor.com RCT. Simplify monitoring.
- Page 6 (Fig. 4, page 6) For further information on setting the liter display, Mounting: Mount the receiver with the included receiving other radio transmitters, solving problems wall bracket using suitable mounting material and resetting the device, please refer to the radio (screws/plugs depending on the surface). receiver manual. Warning symbols: The red LED next to the display, Sending and receiving: A stable radio connection warning triangle and battery symbol warn when is essential for trouble-free operation. Select the the minimum fill level is below 20 percent, the transmitter battery is empty or the radio connection is interrupted (see instructions). (Fig. 9) Signal Note: Further information can be found in the de- tailed operating instructions of the corresponding radio receiver. Fig. 8+9 | Indications on LCD display www.rct-monitor.com RCT. Simplify monitoring.
- Page 7 Operating Instructions Your Contact LEVELview.BASIC.LPG Radio transmitter unit (868 MHz) for fill level monitoring of liquid gas tanks Contactless fill level measurement using Hall effect sensors (magnetic field) Remote Control Technology GmbH Plockeweg 5 D-35080 Bad Endbach T +49 (0) 2776 9214330 F +49 (0) 2776 9214331 info@rct-monitor.com www.rct-monitor.com Design: www.ArtFactory.de Photos: RCT, Andy Alexander & Shutterstock Remote Control Technology RCT. Simplify monitoring. © RCT Oct. 2020 | Subject to modification!
