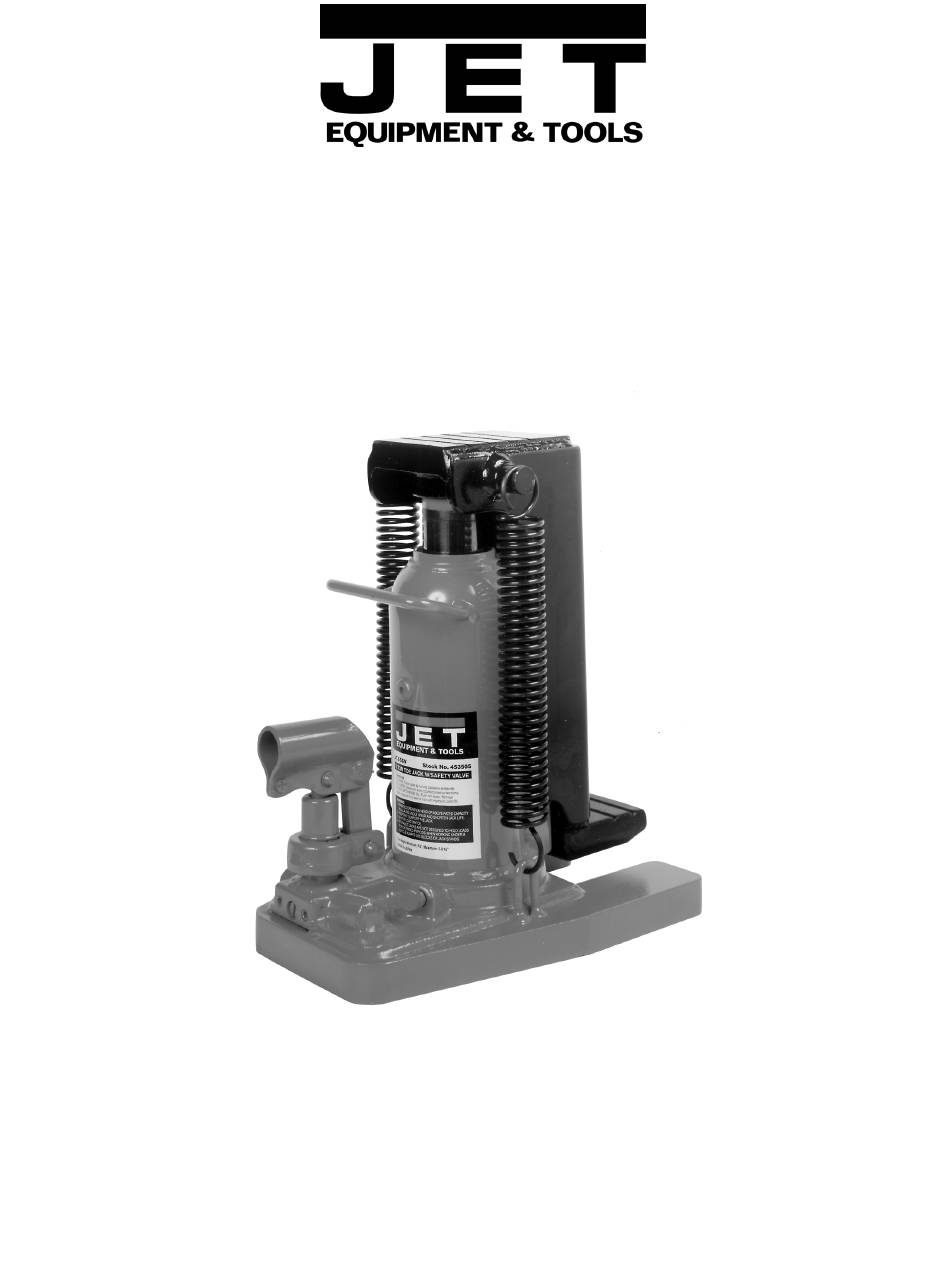

- Page 1 OWNER'S MANUAL JTJ-2SV/5SV/10SV Toe Jack JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-453505 04/01...
-
Page 2: Replacement Parts
Important Information 1-YEAR JET offers a one-year limited warranty on this product LIMITED WARRANTY REPLACEMENT PARTS Replacement parts for this tool are available directly form JET Equipment & Tools. To place an order, call 1-800-274-6848. Please have the following information ready: 1. -
Page 3: Specifications
Capacity Weight Min. (in.) Max. Min. Max. (LxW/in.) (LxW/in.) (tons) (tons) (lbs.) (in.) (in.) (in.) (in.) JTJ-2SV 453502 4-7/16 5-1/16 9-3/8 13-3/4 2 x 2 5 x 7 JTJ-5SV 453505 4-3/4 5-9/16 11-3/4 16-1/8 2-1/4 x 3 10-5/8 x 7-1/4... -
Page 4: Operation
Operation To raise the jack: 1. Insert the end of the handle into the release stem. 2. Turn the release stem clockwise completely to close the valve. Do not over tighten. 3. Insert the handle into the handle socket. 4. Pump the handle to raise the load. To lower the jack: 1. -
Page 5: Troubleshooting
• To fill the reservoir with oil: 1. Retract the ram completely. 2. Remove the filler plug. WARNING Make sure no contaminants enter the cylinder when filling with oil! Never use any oil other than hydraulic jack oil to fill the cylinder! Failure to comply may cause the jack to fail! 3. - Page 6 JTJ-2SV 2-Ton Toe Jack...
- Page 7 Parts List for the JTJ-2SV 2 Ton Toe Jack Index Part Description Size Qty. 1..N/A........Body....................1 2..JTJ2SV-2 ......Pump Plunger.................1 3..JTJ2SV-3 ......Pump Backup Ring ** ..............1 4..JTJ2SV-4 ......Pump Packing ** ................1 5..JTJ2SV-5 ......Pump Plunger Pin................1 6..JTJ2SV-6 ......
- Page 8 JTJ-5SV 5-Ton Toe Jack...
- Page 9 Parts List for the JTJ-5SV 5 Ton Toe Jack Index Part Description Size Qty. 1..N/A........Body....................1 2..H10002 ......Pump Plunger.................1 3..H10003 ......Pump Backup Ring ** ..............1 4..H10004 ......Pump Packing ** ................1 5..H10005 ......Pump Plunger Pin................1 6..H-920-0013 ......
- Page 10 JTJ-10SV 10-Ton Toe Jack...
- Page 11 Parts List for the JTJ-10SV 10 Ton Toe Jack Index Part Description Size Qty. 1..N/A........Body....................1 2..H20002 ......Pump Plunger.................1 3..H10003 ......Pump Backup Ring ** ..............1 4..H10004 ......Pump Packing ** ................1 5..H20005 ......Pump Plunger Pin................1 6..H-935-0013 ......
