Summary of Contents for iBell EP82-58

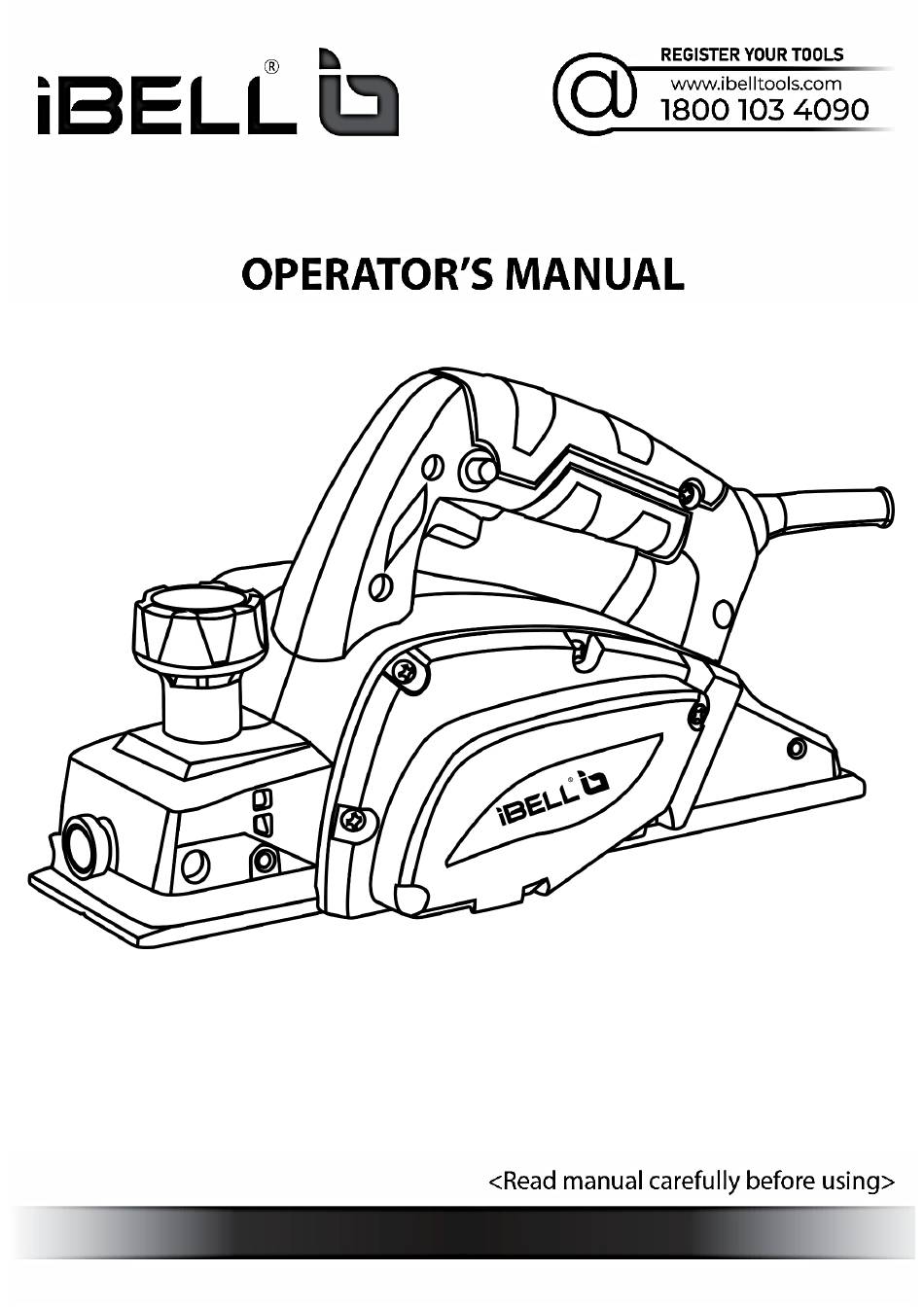

- Page 1 ELECTRIC PLANER EP82-58...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. GENERAL POWER TOOL SAFETY WARNINGS __________ 2. ELECTRIC PLANER SAFETY WARNINGS _______________ 3. PRODUCT SPECIFICATIONS ___________________________ 4. PRODUCT OVERVIEW _________________________________ 5. PRODUCT FUNCTIONS AND ASSEMBLY________________ 6. GENERAL OPERATION ________________________________ 7. TROUBLESHOOTING __________________________________ IBL EP82-58... -
Page 4: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL EP82-58... - Page 5 When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL EP82-58...
-
Page 6: Electric Planer Safety Warnings
Stop operation immediately if you notice anything abnormal. Wear ear protectors. Exposure to noise can cause hearing loss. Wear safety goggles or eye protection when using this power tool. For additional protection against electric shock, be sure to wear rubber gloves. IBL EP82-58... - Page 7 When an extension cord is required you must ensure it has the correct ampere rating for your power tool and that it is in a safe electrical condition. Misuse or failure to follow the safety rules stated WARNING! in this instruction manual may cause serious personal injury. IBL EP82-58...
-
Page 8: Product Specifications
INTENDED USE The EP82-58 Electric Planer is a power tool used to take off small amounts wood by shaving it off in increments. It shaves and shapes wood like a hand plane, a belt sander and a jointer all rolled into one. -
Page 9: Product Overview
7. Rear Base (Stationary Shoe) 4. Wing Nut for Edge Fence 8. Blade Driver Belt (Inside) The product must be fully assembled before WARNING! operation! Do not use a product that is only partly assembled or assembled with damaged parts! IBL EP82-58... -
Page 10: Product Functions And Assembly
Rotate the knob until the indicator arrow aligns with the desired cutting depth on the gauge. Always ensure that the number on the depth gauge is at NOTE: the “0” position when the planer is not in use. IBL EP82-58... - Page 11 Set the adjusting plate/set plate on the gauge base so that the planer blade locating lugs on the set plate rest in the planer blade groove, then press in the heel of the adjusting plate flush with the back side of the gauge base and tighten the screws. IBL EP82-58...
- Page 12 & equidistant from the housing on one side and the metal bracket on the other. Tighten the three bolts and rotate (with the socket wrench provided) the drum to check clearances between the blade ends and the tool body. IBL EP82-58...
-
Page 13: General Operation
This ensures optimum control over it. Push the planer beyond edge of the work piece without tilting it downwards. Turn off the planer and wait for the blade to stop before setting the planer down. IBL EP82-58... - Page 14 The V-groove in the front shoe allow you to create a sloping edge along the corner of your work. To make a chamfering cut, align the V-groove with the edge of the work and plane it. Chamfering Cut V-groove IBL EP82-58...
- Page 15 Continuing to use a dull blade may cause a dangerous kickback and/or motor overload. Dressing could be suitable or replace with a new blade as soon as it no longer cuts effectively. Wing Planer Blades Sharpening holder Dressing Stone IBL EP82-58...
- Page 16 Only use accessory or attachment for its stated purpose. This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. IBL EP82-58...
-
Page 17: Troubleshooting
5.1 Conduct the 5. Machine operation correctly. overheating 5.2 Motor bearing 5.2 Check or replace it damage. by technician. All further inspection and repair work must be WARNING! performed by an authorised service centre or a qualified technician! IBL EP82-58... - Page 18 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
