Summary of Contents for PulseAudio PA-CVB1

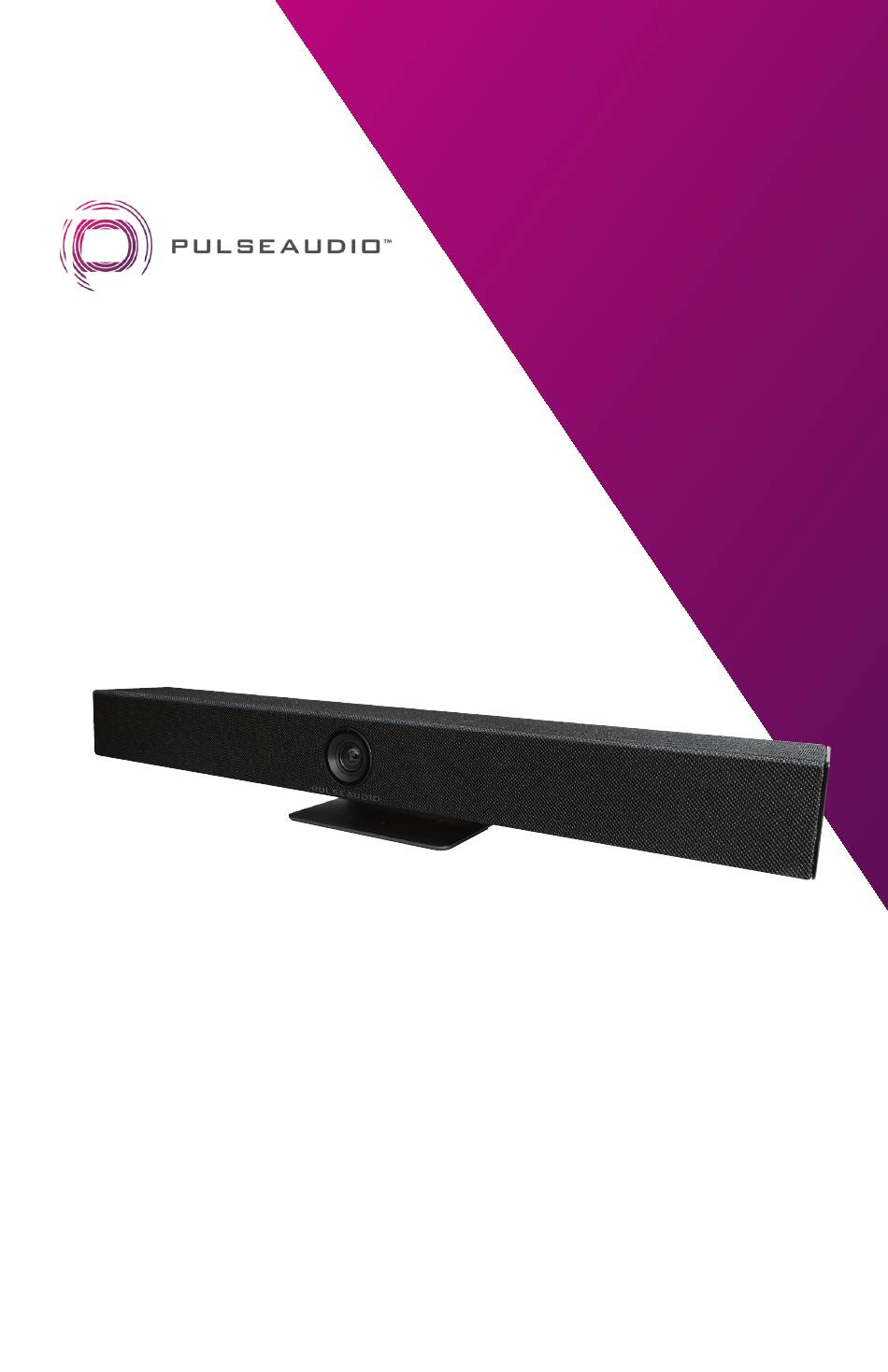

- Page 1 COLLABORATION VIDEO BAR PART NUMBER PA-CVB1 All-in-one design with integrated camera, microphone and speakers vanco1.com | 800.626.6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS. -
Page 3: Package Contents
FEATURES The PulseAudio PA-CVB1 Collaboration Video Bar is an all-in-one, compact design with crystal clear audio with 4K video, perfect for any conference room type application. Advanced AI algorithms allow for multiple framing technologies such as facial detection, sound positioning, and voice tracking to automatically frame meeting participants and adjust focus to always present the best view. -
Page 4: Specifications
SPECIFICATIONS Image Sensor ..............8 million pixel high-quality CMOS image sensor Camera Angle ...............120°(D)/107.2°(H)/74.1°(V) Zoom ................5x digital zoom Video Output ..............Up to 4K AI Smart Framing ............Face detection & sound location & voice tracking Microphone Type ............6-mic array Pickup Distance ............6 meters Processing..............AEC &... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Speakers Camera Built-in Mic Power Switch Power Jack 3.5mm Stereo Audio Line Input USB B 3.0 Port Built-in stand/wall mounting bracket location... -
Page 6: Connect And Operate
Use the provided USB cable or other known working USB cable to connect the video bar, to a computer, video conference terminal, or other USB input device Open the video conference software Select PulseAudio options available for video/camera, speaker, and microphone devices within the software settings... - Page 7 REMOTE Auto Framing & Voice Standby On/Off Tracking Volume Down Volume Up Zoom Out Zoom In Home Direction Button Preset Setting Menu Mute Answer Call Hang Up 0-9 Number Buttons Short press can call back corresponding preset...
-
Page 8: Menu Settings
MENU SETTINGS • Language: Move the pointer to (Language) in the main menu, press to select the language • Setting: Move the pointer to (Settings) in the main menu, press [HOME] to get into the exposure page as shown below... - Page 9 • Image Style: Default/Standard/Clear/Bright/Soft • Auto Framing: On/off • Auto Framing Sen: High/Medium/Low • Voice Locating: On/off • Switching Mode: Pan mode/movie mode/meeting mode/smart mode • Location Sen: High/Low/Medium • Prompt Info: On/off • Transmission Mode: Bulk/Synchronization...
- Page 10 In the main menu, move the pointer to (Exposure), and press [HOME] to enter the exposure page, as shown below. • Mode: Automatic, manual, shutter priority, brightness priority • EV: On/off (only valid in auto mode) • Backlight: On/Off (only valid in auto mode) •...
- Page 11 Move the pointer to (Color) in the main menu, and press [HOME] to get into the color page, as shown below. • Saturation: 60%, 70%, 80%, 90%, 100%, 110%, 120%, 130%, 140%, 150%, 160%, 170%, 180%, 190%, 200% • WB Mode: automatic, manual, white balance, a key, specified color temperature •...
- Page 12 Move the pointer to (Image) in the main menu, and press [HOME] to get into the image page, as shown below. • Brightness: Settable 0~14 ....... • Contrast: 0~14 ............• Sharpness: 0~15 • Flip-H: On/Off ............. • Flip-V: On/Off ............•...
- Page 13 Move the pointer to (Noise Reduction) in the main menu, press [HOME] to get into the noise reduction page, as shown below. • 2D Noise Reduction: Auto, Off, 1-7 • 3D Noise Reduction: Off, 1-8 Move the pointer to (version) in the main menu. Move the pointer to (Reset) in the main menu, press [HOME]...
-
Page 14: Troubleshooting
However, like all electronic equipment, the PA-CVB1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 15: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626- 6445. You can also email technical support issues to techsupport@vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 16 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at vanco1.com...
