LUXOMAT

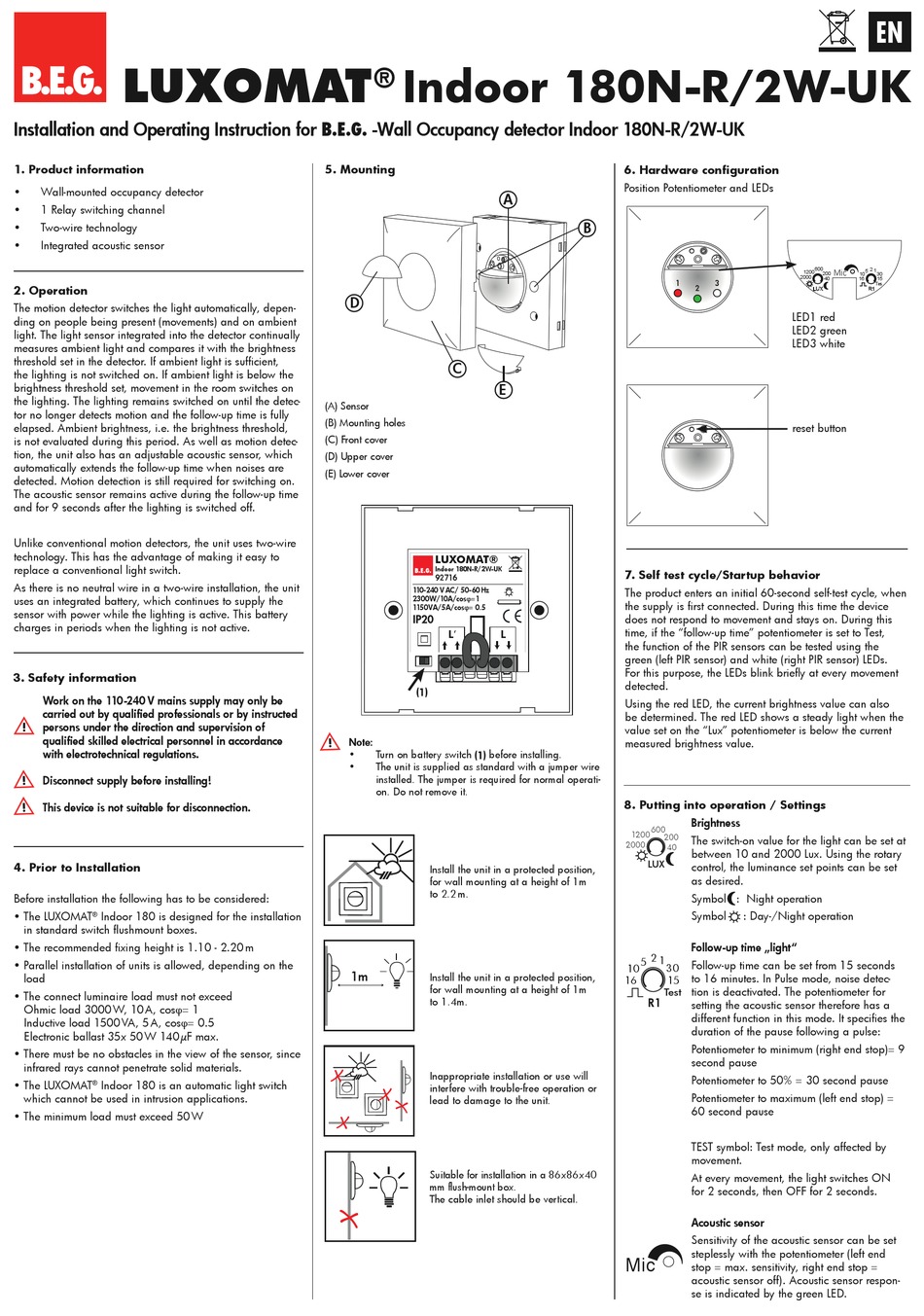

Installation and Operating Instruction for B.E.G. -Wall Occupancy detector Indoor 180N-R/2W-UK
1. Product information
• Wall-mounted occupancy detector
• 1 Relay switching channel
• Two-wire technology
• Integrated acoustic sensor
2. Operation
The motion detector switches the light automatically, depen-
ding on people being present (movements) and on ambient
light. The light sensor integrated into the detector continually
measures ambient light and compares it with the brightness
threshold set in the detector. If ambient light is sufficient,
the lighting is not switched on. If ambient light is below the
brightness threshold set, movement in the room switches on
the lighting. The lighting remains switched on until the detec-
tor no longer detects motion and the follow-up time is fully
elapsed. Ambient brightness, i.e. the brightness threshold,
is not evaluated during this period. As well as motion detec-
tion, the unit also has an adjustable acoustic sensor, which
automatically extends the follow-up time when noises are
detected. Motion detection is still required for switching on.
The acoustic sensor remains active during the follow-up time
and for 9 seconds after the lighting is switched off.
Unlike conventional motion detectors, the unit uses two-wire
technology. This has the advantage of making it easy to
replace a conventional light switch.
As there is no neutral wire in a two-wire installation, the unit
uses an integrated battery, which continues to supply the
sensor with power while the lighting is active. This battery
charges in periods when the lighting is not active.
3. Safety information
Work on the 110-240 V mains supply may only be
carried out by qualified professionals or by instructed
persons under the direction and supervision of
!
qualified skilled electrical personnel in accordance
with electrotechnical regulations.
Disconnect supply before installing!
This device is not suitable for disconnection.
4. Prior to Installation
Before installation the following has to be considered:
• The LUXOMAT Indoor 180 is designed for the installation
®
in standard switch flushmount boxes.
• The recommended fixing height is 1.10 - 2.20 m
• Parallel installation of units is allowed, depending on the
load
• The connect luminaire load must not exceed
Ohmic load 3000 W, 10 A, cosϕ= 1
Inductive load 1500 VA, 5 A, cosϕ= 0.5
Electronic ballast 35x 50 W 140 µF max.
• There must be no obstacles in the view of the sensor, since
infrared rays cannot penetrate solid materials.
• The LUXOMAT Indoor 180 is an automatic light switch
®
which cannot be used in intrusion applications.
• The minimum load must exceed 50 W
Indoor 180N-R/2W-UK
®
5. Mounting
D
C
E
(A) Sensor
(B) Mounting holes
(C) Front cover
(D) Upper cover
(E) Lower cover
LUXOMAT®
B.E Indoor 180N-R/2W-UK
B.E.G.
92716
110-240 V AC/ 50-60 Hz
2300W/10A/cosφ=1
1150VA/5A/cosφ= 0.5
IP20
L'
( 1 )
Note:
• Turn on battery switch ( 1 ) before installing.
• The unit is supplied as standard with a jumper wire
installed. The jumper is required for normal operati-
on. Do not remove it.
Install the unit in a protected position,
for wall mounting at a height of 1m
to 2.2 m.
1m
Install the unit in a protected position,
for wall mounting at a height of 1m
to 1.4m.
X
Inappropriate installation or use will
interfere with trouble-free operation or
lead to damage to the unit.
X
Suitable for installation in a 86x86x40
mm flush-mount box.
The cable inlet should be vertical.
6. Hardware configuration
Position Potentiometer and LEDs
A
B
7. Self test cycle/Startup behavior
The product enters an initial 60-second self-test cycle, when
the supply is first connected. During this time the device
does not respond to movement and stays on. During this
time, if the "follow-up time" potentiometer is set to Test,
L
the function of the PIR sensors can be tested using the
green (left PIR sensor) and white (right PIR sensor) LEDs.
For this purpose, the LEDs blink briefly at every movement
detected.
Using the red LED, the current brightness value can also
be determined. The red LED shows a steady light when the
value set on the "Lux" potentiometer is below the current
measured brightness value.
8. Putting into operation / Settings
600
1200
200
2000
40
LUX
5 2 1
30
10
16 15
Test
R1
Mic
Mic
1200
200
2000
40
1 3
2
LED1 red
LED2 green
LED3 white
reset button
Brightness
The switch-on value for the light can be set at
between 10 and 2000 Lux. Using the rotary
control, the luminance set points can be set
as desired.
Symbol : Night operation
Symbol : Day-/Night operation
Follow-up time „light"
Follow-up time can be set from 15 seconds
to 16 minutes. In Pulse mode, noise detec-
tion is deactivated. The potentiometer for
setting the acoustic sensor therefore has a
different function in this mode. It specifies the
duration of the pause following a pulse:
Potentiometer to minimum (right end stop)= 9
second pause
Potentiometer to 50% = 30 second pause
Potentiometer to maximum (left end stop) =
60 second pause
TEST symbol: Test mode, only affected by
movement.
At every movement, the light switches ON
for 2 seconds, then OFF for 2 seconds.
Acoustic sensor
Sensitivity of the acoustic sensor can be set
steplessly with the potentiometer (left end
stop = max. sensitivity, right end stop =
acoustic sensor off). Acoustic sensor respon-
se is indicated by the green LED.
