complements
Section:
ELECTRICAL
Description:
USER EDGE USB INSTALLATION

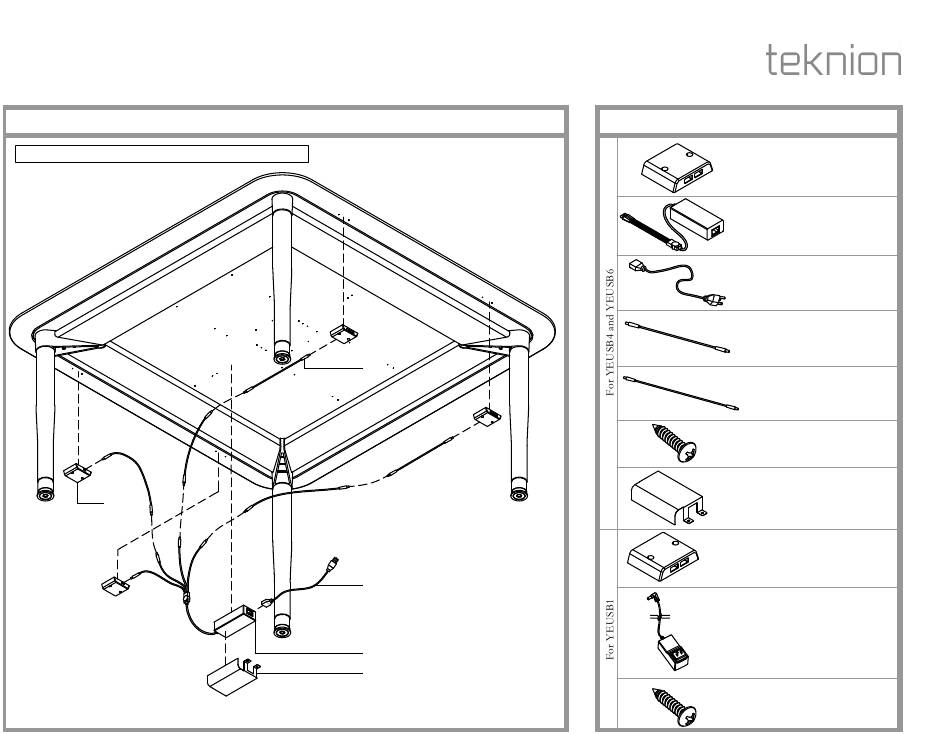

NOTE: Zones Workshop Table (ZNTWS) shown as example.
A
Installation Guides
User Edge USB (YEUSB)
E
C
B
G
Date:
Jan 2018
COM_509
Part and Product Identification
A - USB Charging Hub
(YEUSB-HUB) x4 or 6
B -Power Supply with 6 Splitters
(WC-PS-YEUSB-6 SPLITTER) x1
C - Power Cord
(WCSJTW316-E340) x1
D - 1 Metre Jumper
(YEUSB-J1)
Quantity Varies By Table
Size.
E - 2.5 Metre Jumper
(YEUSB-J2.5) x4 or 6
F - #8 X 5/8 Wood Screw
(FS8-5-8-QRA) x12 or 16
G - Brkt, User Edge Usb
(MPA15-E870) x1
H - USB Charging Hub
(YEUSB-HUB) x1
H - 24V 1A Power Supply with
Switchable Head
(WC-PS-DAZ00814) x1
J - #8 X 5/8 Wood Screw
(FS8-5-8-QRA) x2
Page No:
1 of 5
Rev. No: 3
Advertisement
Table of Contents
Summary of Contents for Teknion YEUSB
- Page 1 1 of 5 Description: USER EDGE USB INSTALLATION COM_509 Rev. No: 3 User Edge USB (YEUSB) Part and Product Identification A - USB Charging Hub NOTE: Zones Workshop Table (ZNTWS) shown as example. (YEUSB-HUB) x4 or 6 B -Power Supply with 6 Splitters...
- Page 2 complements Installation Guides Section: ELECTRICAL Date: Jan 2018 Page No: 2 of 5 Description: USER EDGE USB INSTALLATION COM_509 ROUTING THE JUMPER CABLES ROUTING THE JUMPER CABLES STEP 1: Before installing the Worksurface onto the Table's leg frame, route the Jumper Cable STEP 2: The Jumper Cable on the inside of the frame can be inserted and lined through the through the Table's frame as shown above.
- Page 3 complements Installation Guides Section: ELECTRICAL Date: Jan 2018 Page No: 3 of 5 Description: USER EDGE USB INSTALLATION COM_509 INSTALLING THE POWER SUPPLY INSTALLING THE POWER SUPPLY pilot holes Note: Install the Worksurface after routing the Jumper Cables through the table frame. Note: The Bracket can be used to manage the Power Supply Cables as shown above.
- Page 4 complements Installation Guides Section: ELECTRICAL Date: Jan 2018 Page No: 4 of 5 Description: USER EDGE USB INSTALLATION COM_509 INSTALLING THE USB MODULE CONNECTING THE JUMPER CABLES pilot holes STEP 5: Screw down the USB Module as shown above through the pilot holes allocated on the STEP 6: Connect the Jumper cables to the USB Module as shown above.
- Page 5 complements Installation Guides Section: ELECTRICAL Date: Jan 2018 Page No: 5 of 5 Description: USER EDGE USB INSTALLATION COM_509 INSTALLING THE POWER CODE STEP 7: Connect the Power Cord to the USB Module as shown above. Carefully turn the Table right side up and connect the Power Cord to the power source.
