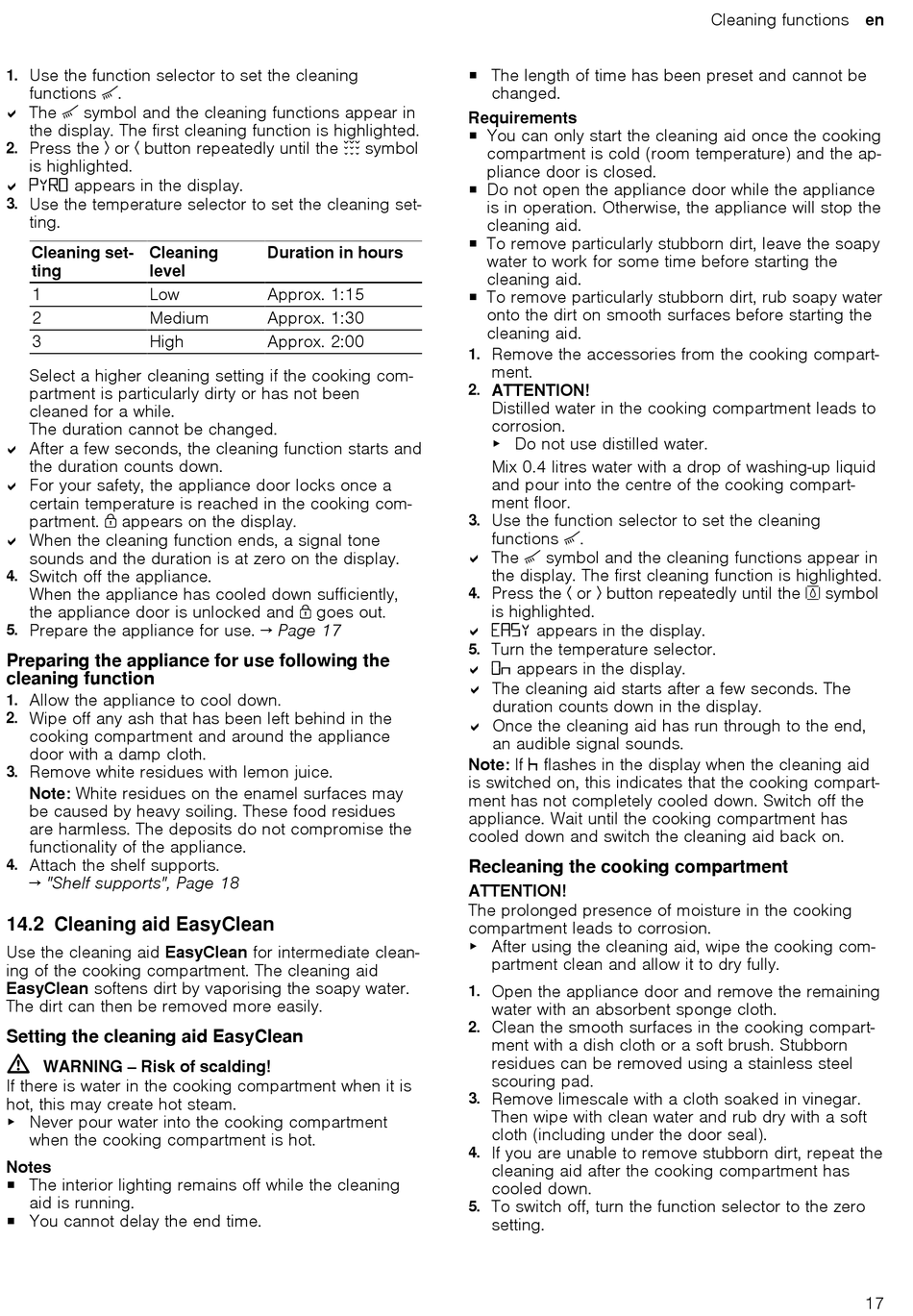

NEFF B5ACH7A 0 Series User Manual And Installation Instructions page 17

Use the function selector to set the cleaning
1.
functions ​ ⁠ .
a The ​ ⁠ symbol and the cleaning functions appear in
the display. The first cleaning function is highlighted.
Press the ​ ⁠ or ​ ⁠ button repeatedly until the
2.
is highlighted.
​ ⁠ ​ ⁠ ​ ⁠ ​ ⁠ appears in the display.
a
Use the temperature selector to set the cleaning set-
3.
ting.
Cleaning set- Cleaning
ting level
1 Low
2 Medium
3 High
Select a higher cleaning setting if the cooking com-
partment is particularly dirty or has not been
cleaned for a while.
The duration cannot be changed.
a After a few seconds, the cleaning function starts and
the duration counts down.
a For your safety, the appliance door locks once a
certain temperature is reached in the cooking com-
partment. ​ ⁠ appears on the display.
a When the cleaning function ends, a signal tone
sounds and the duration is at zero on the display.
Switch off the appliance.
4.
When the appliance has cooled down sufficiently,
the appliance door is unlocked and ​ ⁠ goes out.
5. Prepare the appliance for use. → Page 17
Preparing the appliance for use following the
cleaning function
Allow the appliance to cool down.
1.
Wipe off any ash that has been left behind in the
2.
cooking compartment and around the appliance
door with a damp cloth.
Remove white residues with lemon juice.
3.
Note: White residues on the enamel surfaces may
be caused by heavy soiling. These food residues
are harmless. The deposits do not compromise the
functionality of the appliance.
Attach the shelf supports.
4.
→ "Shelf supports", Page 18
14.2 Cleaning aid EasyClean
Use the cleaning aid EasyClean for intermediate clean-
ing of the cooking compartment. The cleaning aid
EasyClean softens dirt by vaporising the soapy water.
The dirt can then be removed more easily.
Setting the cleaning aid EasyClean
WARNING ‒ Risk of scalding!
If there is water in the cooking compartment when it is
hot, this may create hot steam.
Never pour water into the cooking compartment
▶
when the cooking compartment is hot.
Notes
¡ The interior lighting remains off while the cleaning
aid is running.
¡ You cannot delay the end time.
​ ⁠ symbol
Duration in hours
Approx. 1:15
Approx. 1:30
Approx. 2:00
¡ The length of time has been preset and cannot be
changed.
Requirements
¡ You can only start the cleaning aid once the cooking
compartment is cold (room temperature) and the ap-
pliance door is closed.
¡ Do not open the appliance door while the appliance
is in operation. Otherwise, the appliance will stop the
cleaning aid.
¡ To remove particularly stubborn dirt, leave the soapy
water to work for some time before starting the
cleaning aid.
¡ To remove particularly stubborn dirt, rub soapy water
onto the dirt on smooth surfaces before starting the
cleaning aid.
Remove the accessories from the cooking compart-
1.
ment.
2.
ATTENTION!
Distilled water in the cooking compartment leads to
corrosion.
Do not use distilled water.
▶
Mix 0.4 litres water with a drop of washing-up liquid
and pour into the centre of the cooking compart-
ment floor.
Use the function selector to set the cleaning
3.
functions ​ ⁠ .
a The ​ ⁠ symbol and the cleaning functions appear in
the display. The first cleaning function is highlighted.
Press the ​ ⁠ or ​ ⁠ button repeatedly until the
4.
is highlighted.
a ​ ⁠ ​ ⁠ ​ ⁠ ​ ⁠ appears in the display.
Turn the temperature selector.
5.
​ ⁠ ​ ⁠ appears in the display.
a
a The cleaning aid starts after a few seconds. The
duration counts down in the display.
a Once the cleaning aid has run through to the end,
an audible signal sounds.
Note: If ​ ⁠ flashes in the display when the cleaning aid
is switched on, this indicates that the cooking compart-
ment has not completely cooled down. Switch off the
appliance. Wait until the cooking compartment has
cooled down and switch the cleaning aid back on.
Recleaning the cooking compartment
ATTENTION!
The prolonged presence of moisture in the cooking
compartment leads to corrosion.
After using the cleaning aid, wipe the cooking com-
▶
partment clean and allow it to dry fully.
Open the appliance door and remove the remaining
1.
water with an absorbent sponge cloth.
Clean the smooth surfaces in the cooking compart-
2.
ment with a dish cloth or a soft brush. Stubborn
residues can be removed using a stainless steel
scouring pad.
3. Remove limescale with a cloth soaked in vinegar.
Then wipe with clean water and rub dry with a soft
cloth (including under the door seal).
4. If you are unable to remove stubborn dirt, repeat the
cleaning aid after the cooking compartment has
cooled down.
5. To switch off, turn the function selector to the zero
setting.
Cleaning functions en
​ ⁠ symbol
17
